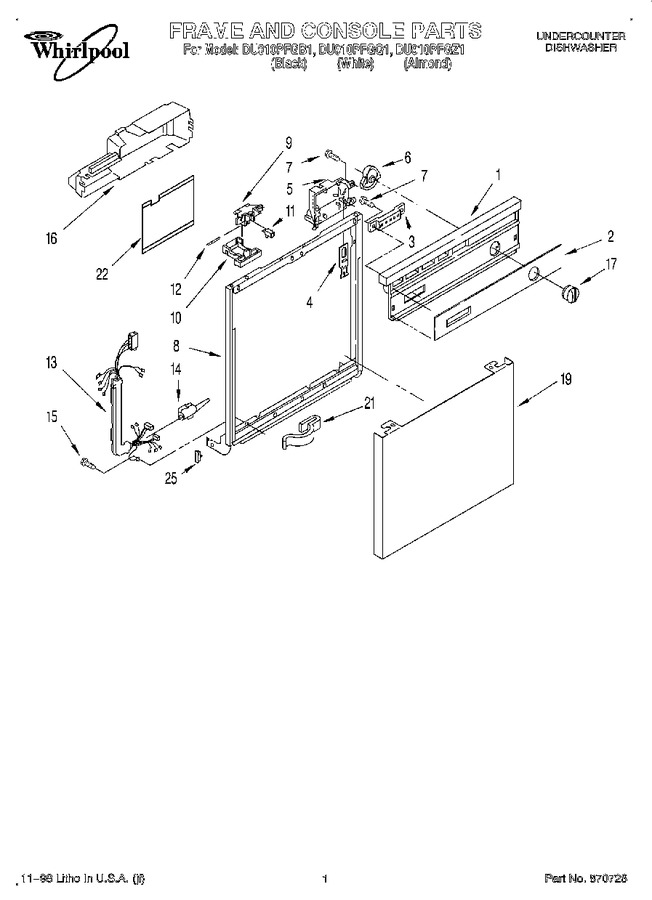

SELECT A DIAGRAM

01 - Frame And Console


02 - Inner Door


03 - Tub Assembly


04 - Pump And Motor


05 - Dishrack


06 - Miscellaneous, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8051479		Console (includes Item 2) (almond)		Appelez-nous	-
1	8051477		Console (includes Item 2) (black)		Appelez-nous	-
1	8051478		Console (includes Item 2) (white)		Appelez-nous	-
2	8051338		Insert, Console (almond)		Appelez-nous	-
2	8051337		Insert, Console (white)		Appelez-nous	-
2	8051336		Insert, Console (black)		Appelez-nous	-
3	8051167		Switch, 5 Button (white)		Appelez-nous	-
3	8051166		Switch, 5 Button (black)		Appelez-nous	-
3	8051168		Switch, 5 Button (almond)		Appelez-nous	-
4	WP3369529		Follower, Cam   (Replaces: 3369529)				$ 65.43
5	3379501		Timer		Appelez-nous	-
6	3378124		Cam				$ 5.75
7	WP304231		Screw,   (Replaces: 304231)			Immediately	$ 8.14
8	9743028		Door Frame (black)				$ 62.19
9	WP3380854		Bolt, Latch   (Replaces: 3380854)			Immediately	$ 66.11
10	3369457		Lever, Latch (black)				$ 5.84
10	3375061		Lever, Latch (almond)		Appelez-nous	-
10	3372231		Lever, Latch White		Appelez-nous	-
11	3369325		Switch, (2)		Appelez-nous	-
12	3368955		Pin, Switch (2)				$ 7.75
13	8271432		Harness And Protector		Appelez-nous	-
14	3376405		Elbow, Harness				$ 14.02
15	WP488234		Screw   (Replaces: 3400803)				$ 7.08
16	3379954		Cover, Timer		Appelez-nous	-
17	3375349		Knob, Timer (white)				$ 46.12
17	3375348		Knob, Timer (black)				$ 64.33
17	3375350		Knob, Timer (almond)		Appelez-nous	-
19	3379377		Panel Front (almond Model)		Appelez-nous	-
19	3379375		Panel Front (black)				$ 115.07
19	3379376		Panel Front (white)				$ 116.81
21	WP98997		Clip, Harness   (Replaces: 98997)				$ 11.64
22	3379671		Shield, Control Cover		Appelez-nous	-
25	WP3373234		Bearing Spring (2)   (Replaces: 3373234)				$ 11.01
