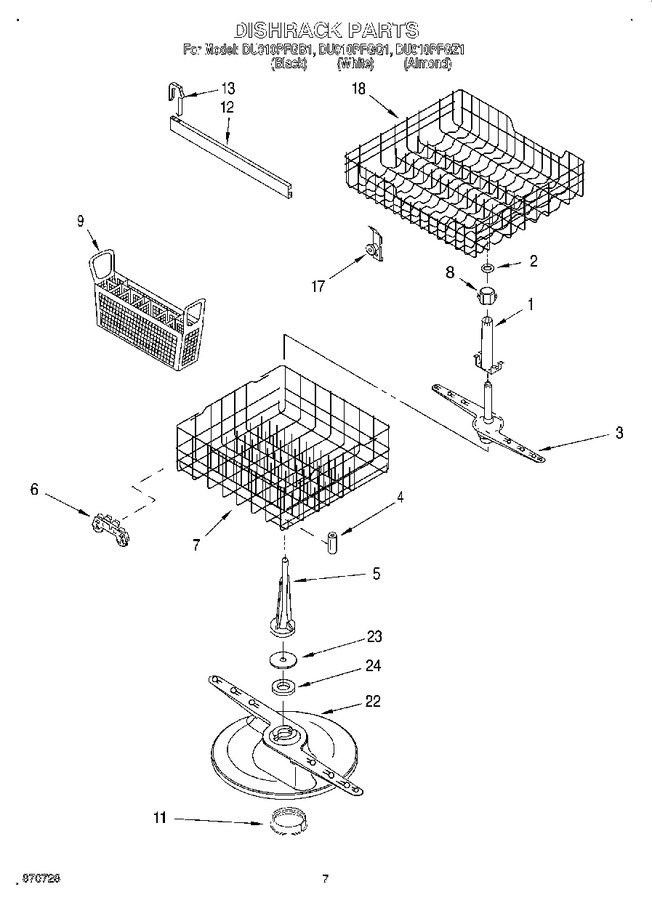

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3368290 | Support, Arm (also Order Items 2 & 8) |
|
- | |||||
| 2 | 303722 | Clip |
|
$ 5.75 | |||||
| 3 | 3377274 | Spray Arm, Upper (also Order Item 8) |
|
- | |||||
| 4 | WP3385142 | Bumper (2) (Replaces: 3368006) |
|
$ 94.82 | |||||
| 5 | 300848 | Tower, Pressure |
|
- | |||||
| 6 | WP3376961 | Wheel & Transport Assembly (4) (Replaces: 3376961) |
|
$ 98.69 | |||||
| 7 | W10311986 | Dishrack, Lower (includes Items 4 & 6) (Replaces: 8051112) |
|
Immediately | $ 188.14 | ||||
| 8 | 3374702 | Support, Lock Spray Arm |
|
$ 6.29 | |||||
| 9 | 8051119 | Basket, Silverware |
|
- | |||||
| 11 | WP3376846 | Seal, Lower Sprayarm (Replaces: 3376846) |
|
Immediately | $ 10.12 | ||||
| 12 | WP3385089 | Track (Replaces: 9742998) |
|
Immediately | $ 80.00 | ||||
| 13 | 3379941 | Stop, Track (4) |
|
$ 42.08 | |||||
| 17 | 3380863 | Wheel Assembly |
|
- | |||||
| 18 | W11169039 | Dishrack, Upper (Replaces: 3371655) |
|
Immediately | $ 203.14 | ||||
| 22 | WP8268874 | Sprayarm, Lower (Replaces: 3379363) |
|
$ 127.32 | |||||
| 23 | 3367910 | Cap, Nozzle |
|
$ 39.70 | |||||
| 24 | 719576 | Bearing, Nozzle |
|
$ 7.48 |
