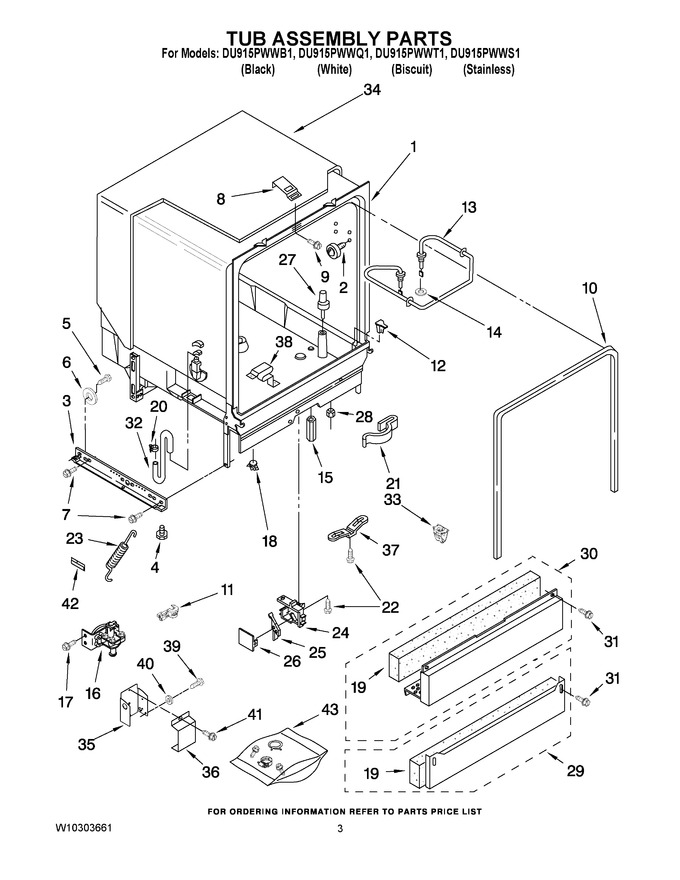

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10082658 | Tub Assembly (includes Heater Assembly) |
|
- | |||||
| 2 | WP8528831 | Tub, Wheel Assembly (Replaces: 8528831) |
|
Immediately | $ 19.58 | ||||
| 3 | 3368933 | Runner |
|
$ 15.85 | |||||
| 4 | 8193716 | Leveler (Replaces: 3374849) |
|
Immediately | $ 88.96 | ||||
| 5 | 3370389 | Screw, Shoulder |
|
$ 5.70 | |||||
| 6 | 302819 | Wheel |
|
$ 5.65 | |||||
| 7 | WP681414 | Screw, (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 8 | 3378149 | Plate, Latch |
|
$ 44.37 | |||||
| 9 | 3374720 | Screw |
|
$ 28.23 | |||||
| 10 | WPW10509257 | Gasket (Replaces: W10082795) |
|
Immediately | $ 74.12 | ||||
| 11 | W11384788 | Strain, Relief (Replaces: 8573061) |
|
$ 22.59 | |||||
| 12 | WP8528862 | Deflector (Replaces: 8528862) |
|
$ 63.90 | |||||
| 13 | WPW10082896 | Heater (includes Item 14) (Replaces: W10082896) |
|
$ 141.38 | |||||
| 14 | WP717273 | Washer, Rubber (Replaces: 717273) |
|
Immediately | $ 7.55 | ||||
| 15 | WPW10477552 | Nut (heater Terminal) (Replaces: 8268548) |
|
Immediately | $ 8.23 | ||||
| 16 | W10844024 | Water Valve (Replaces: W10219643) |
|
Immediately | $ 96.30 | ||||
| 17 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 8.40 | ||||
| 18 | WP661566 | Thermostat, Hi-limit (Replaces: 661566) |
|
Immediately | $ 31.28 | ||||
| 19 | 3382404 | Insulation |
|
- | |||||
| 20 | WP596669 | Hose Clamp (Replaces: 301958) |
|
Immediately | $ 8.82 | ||||
| 21 | WP3400935 | Clip (Replaces: 3400935) |
|
$ 10.20 | |||||
| 22 | WP304231 | Screw, (Replaces: 304231) |
|
Immediately | $ 8.14 | ||||
| 23 | WP3379383 | Spring, Door (Replaces: 3379383) |
|
Immediately | $ 25.30 | ||||
| 24 | 8318218 | Housing, Float Switch |
|
$ 46.38 | |||||
| 25 | 3369067 | Switch, Float |
|
- | |||||
| 26 | 8318219 | Cover, Switch Housing |
|
$ 14.53 | |||||
| 27 | WP3376397 | Float & Washer Assembly (Replaces: 8519587) |
|
$ 108.64 | |||||
| 28 | 717488 | Nut |
|
$ 12.83 | |||||
| 29 | 9744314 | Panel, Toe (includes Item 19) (biscuit) |
|
- | |||||
| 29 | 3375422 | Panel, Toe (includes Item 19) (black) |
|
- | |||||
| 29 | 9742871 | Panel, Toe (includes Item 19) (white) |
|
- | |||||
| 30 | W10102562 | Panel, Access (stainless) |
|
- | |||||
| 30 | W10102559 | Panel, Access (black) |
|
- | |||||
| 30 | W10102560 | Panel, Access (white) |
|
- | |||||
| 30 | W10102561 | Panel, Access (biscuit) |
|
- | |||||
| 31 | WP302868 | Screw (Replaces: 302868) |
|
Immediately | $ 8.18 | ||||
| 32 | 3369414 | Hose, Inlet |
|
- | |||||
| 33 | 3368992 | Clip, Grounding |
|
- | |||||
| 34 | W11086533 | Sound Shield, Tub (Replaces: 8573243) |
|
Immediately | $ 31.30 | ||||
| 35 | W10136706 | Terminal Box |
|
$ 36.99 | |||||
| 36 | 300068 | Cover Assembly Terminal Box |
|
$ 30.14 | |||||
| 37 | W10539489 | Bracket, Thermostat (Replaces: 3378595) |
|
$ 20.14 | |||||
| 38 | 3379740 | Support, Heater |
|
$ 51.56 | |||||
| 39 | WP3400014 | Screw (Replaces: 3400014) |
|
$ 8.24 | |||||
| 40 | WP3378128 | Washer (Replaces: 3378128) |
|
$ 11.81 | |||||
| 41 | WP489399 | Screw, 8-18 (Replaces: 489399) |
|
$ 7.30 | |||||
| 42 | 8052018 | Friction Pad |
|
- | |||||
| 43 | 3369816 | Miscellaneous Parts Bag (includes 2 Screws & 2 Hose Clamps |
|
$ 34.93 |
