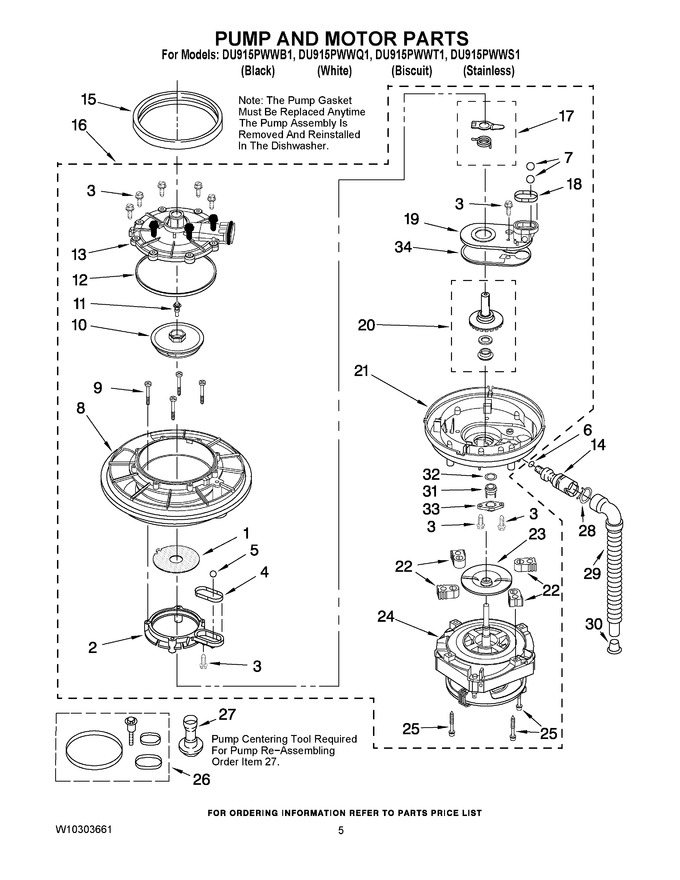

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9740982		Plate, Perforated (includes Item 5) (also Order Item 30) See Note A.		Appelez-nous	-
2	3367173		Base, Inlet (includes Items 1 & 5) (also Order Item 26) See Note A.		Appelez-nous	-
3	WP9741232		Screw   (Replaces: 9741232)			Immediately	$ 5.07
4	WP302710		Seal, Inlet Base   (Replaces: 302710)				$ 10.44
5	302709		Ball, Check				$ 7.80
6	95080		``o`` Ring		Appelez-nous	-
7	WP719929		Ball, Check   (Replaces: 719929)				$ 11.11
8	3384593		Filter Assembly (includes Items 11 & 12) See Note A.				$ 95.04
9	3400001		Screw		Appelez-nous	-
10	675806		Impeller, Wash (includes Items 11 & 12)   (Replaces: 3378176)			Immediately	$ 142.08
11	WP3371152		Screw & Seal,   (Replaces: 3371152)				$ 10.32
12	WP302711		Seal, Pump Outlet   (Replaces: 302711)				$ 39.87
13	8194582		Outlet, Pump (includes Item 12)   (Replaces: 9742973)			Immediately	$ 110.21
14	675238		Check Valve (includes Item 6)   (Replaces: 3369482)				$ 91.05
15	661633		Gasket, Pump		Appelez-nous	-
16	8283497		Pump & Motor Assembly (includes Item 15)		Appelez-nous	-
17	675806		Chopper Kit (also Order Item 26) See Note A.   (Replaces: 3378175)			Immediately	$ 142.08
18	302704		Seal, Drain Cover				$ 7.40
19	3376845		Cover, Drain (also Order Item 26) See Note A.				$ 24.23
20	WP8274950		Impeller, Drain Kit (also Order Item 26) See Note A.   (Replaces: 8274950)				$ 70.65
21	3376157		Base, Pump (also Order Item 26) See Note A.		Appelez-nous	-
22	3367197		Support, Pump Mounting				$ 5.70
23	W10909679		Slinger (see Note A.)   (Replaces: 3368270)				$ 22.73
24	8534971		Motor & Fan Assembly (includes Item 23) (also Order Item 26) See Note A.				$ 200.05
25	8281183		Screw		Appelez-nous	-
26	675505		Pump Seal Kit (includes Items 4, 11, 12 & 18)		Appelez-nous	-
27	303918		Tool, Pump Centering				$ 38.41
28	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 8.52
29	WP3374077		Hose, Drain   (Replaces: 3374077)			Immediately	$ 102.23
30	W10168885		Cap, Drain		Appelez-nous	-
31	9743158		Thermister		Appelez-nous	-
32	3376723		Seal, O-ring				$ 7.19
33	3376358		Retainer, Thermistor				$ 7.50
34	WP9740674		Gasket, Drain Cover   (Replaces: 9740674)				$ 8.22
