| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
WP67003576 |
 |
Elbow, Fill Tube (Replaces: 67003576) |
50 |
|
|
$ 60.96 |
|
|
| 2 |
WPM0114003 |
 |
Clip, Speed (Replaces: M0114003) |
50 |
|
|
$ 11.05 |
|
|
| 3 |
WPB5705307 |
 |
Tube, Plastic (Replaces: 67003360) |
50 |
|
|
$ 12.43 |
|
|
| 4 |
WPA3223101 |
 |
Insert, Plastic Tube (Replaces: A3223101) |
50 |
|
Immediately |
$ 7.82 |
|
|
| 5 |
WPM0104106 |
|
Clip (Replaces: M0104106) |
50 |
|
|
$ 7.78 |
|
|
| 6 |
WP67006506 |
 |
Cord, Power (Replaces: 67006506) |
50 |
|
|
$ 26.42 |
|
|
| 7 |
12992301 |
|
Screw (Replaces: 67006433) |
50 |
|
|
$ 7.32 |
|
|
| 8 |
B5759649 |
|
Gasket, Mc Back |
50 |
Appelez-nous
|
- |
|
|
|
| 9 |
67003796 |
 |
Fiber, Acoustic |
50 |
|
|
$ 19.27 |
|
|
| 10 |
67006101 |
|
Cover, Mc Back |
50 |
|
|
$ 76.68 |
|
|
| 11 |
67006425 |
 |
Screw, Sm (Replaces: M0238616) |
50 |
|
Immediately |
$ 6.95 |
|
|
| 12 |
67004701 |
 |
Clip, Waterline |
50 |
|
|
$ 18.96 |
|
|
| 13 |
67006425 |
|
Screw, Sm |
50 |
|
Immediately |
$ 6.95 |
|
|
| 13 |
67004098 |
|
Cover, Water Valve |
50 |
Appelez-nous
|
- |
|
|
|
| 14 |
WP67006531 |
 |
Valve, Dual Water (Replaces: 67006531) |
50 |
|
Immediately |
$ 167.68 |
|
|
| 14 |
WP489128 |
 |
Screw (Replaces: 67006662) |
50 |
|
|
$ 10.88 |
|
|
| 15 |
W10833902 |
|
Clamp, Tube (Replaces: M0108105) |
50 |
|
|
$ 10.99 |
|
|
| 16 |
WPB2150504 |
 |
Drier (Replaces: B2150504) |
50 |
|
|
$ 130.46 |
|
|
| 17 |
WP33001882 |
 |
Screw (Replaces: 67006737) |
50 |
|
|
$ 79.72 |
|
|
| 17 |
10547002 |
|
Clip, Drier |
50 |
Appelez-nous
|
- |
|
|
|
| 18 |
67005332 |
|
Screw |
50 |
Appelez-nous
|
- |
|
|
|
| 18 |
WP488366 |
 |
Clamp (Replaces: 67006700) |
50 |
|
|
$ 11.18 |
|
|
| 19 |
12580401 |
|
Tube, Drain |
50 |
Appelez-nous
|
- |
|
|
|
| 20 |
67004092 |
|
Block, Filter |
50 |
Appelez-nous
|
- |
|
|
|

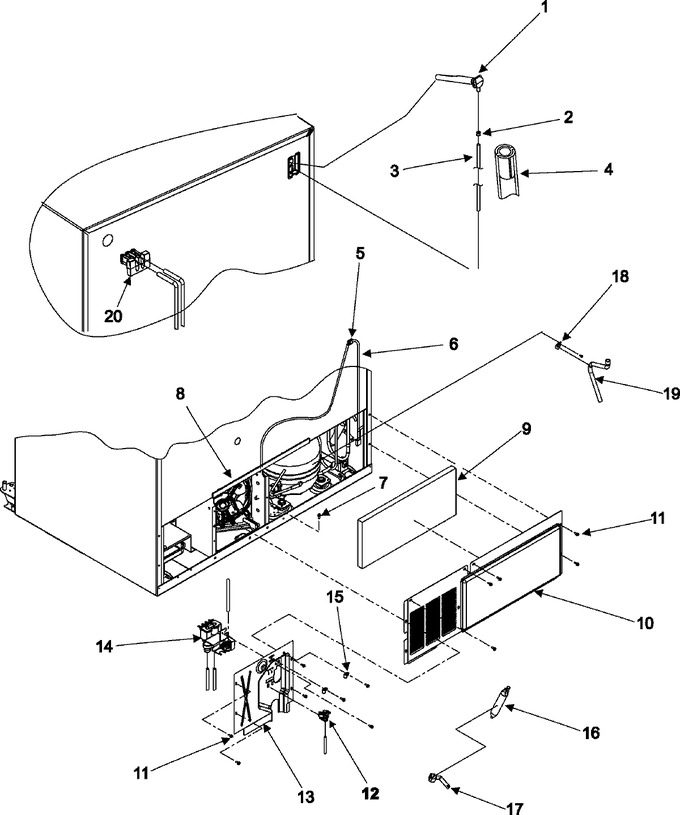

View Diagram in Separate Window
Print Part List
