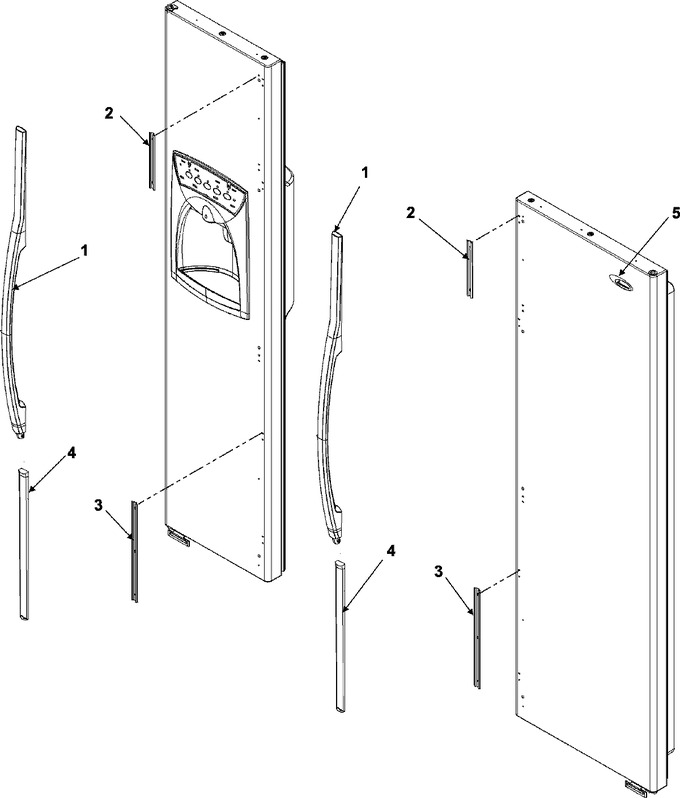

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10119678		Handle, Door (wht)   (Replaces: 67006720)	50			$ 186.64
2	67004116		Cleat, Handle	50			$ 6.39
3	67004117		Cleat, Handle	50			$ 6.47
4	67004297		Trim, Handle 36(wht)	50	Appelez-nous	-
5	Y12528501		Nameplate (amana Plus)	50		Immediately	$ 59.75

    View Diagram in Separate Window       Print Part List
