New Model Search:

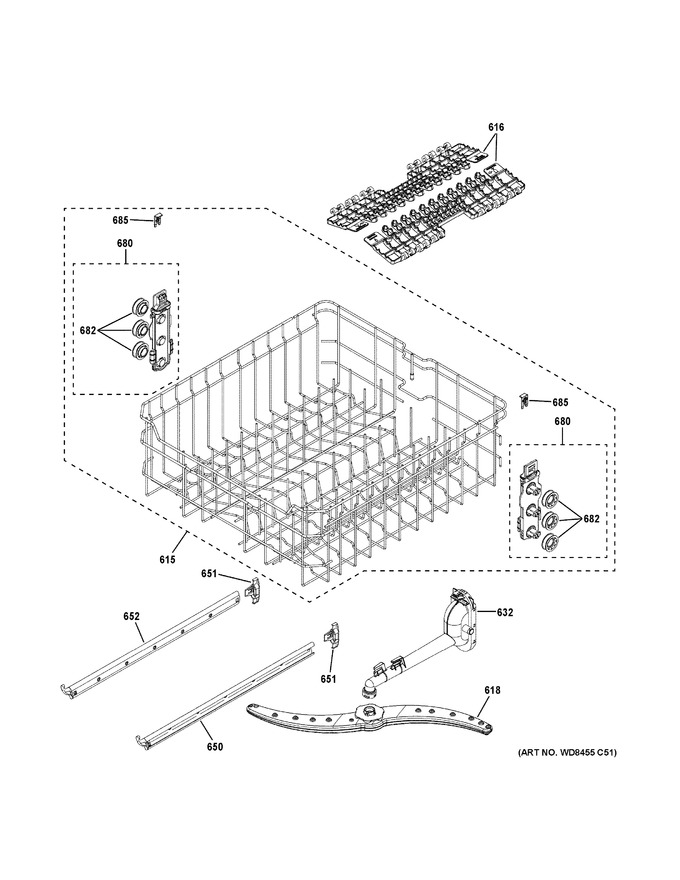

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 615 | WD28X24421 | Rack Upper Asm Coated |
|
- | |||||
| 616 | WD28X24827 | Shelf Cup |
|
- | |||||
| 618 | WD22X26622 | Mid Spray Arm Asm |
|
- | |||||
| 632 | WD22X10094 | Conduit Mid Asm |
|
- | |||||
| 650 | WD30X25059 | End Cap And Slide Asm Rh |
|
- | |||||
| 651 | WG04L01637 | End Cap (Replaces: WD12X10426) |
|
$ 5.72 | |||||
| 652 | WD30X25058 | End Cap And Slide Asm Lh |
|
- | |||||
| 680 | WD12X22801 | Rack Bracket - 3 Wheels |
|
- | |||||
| 682 | WD12X22829 | Roller Rack |
|
- | |||||
| 685 | WD12X10430 | Clip Bracket |
|
- |
