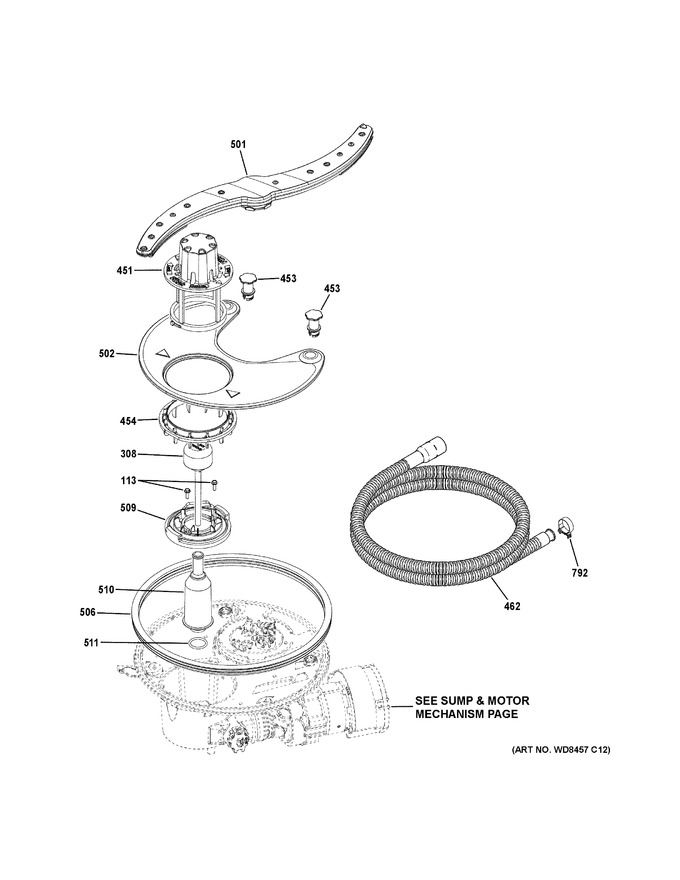

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
113	WG04A00176		Screw 8-16 Hxw 1/2 Ss   (Replaces: WD02X10067)				$ 3.57
308	WD21X22822		Float Flood		Appelez-nous	-
451	WD22X25463		User Cleanable Fine Filter		Appelez-nous	-
453	WD24X10057		Vent Filter		Appelez-nous	-
454	WD12X10419		Adaptor Filter		Appelez-nous	-
462	WG04F04609		Drain Tube Asm   (Replaces: WD24X10062)			Immediately	$ 38.64
501	WD22X10091		Arm Spray Lower Asm		Appelez-nous	-
502	WD22X10092		Filter Coarse Plastic		Appelez-nous	-
506	WD08X22758		Gasket - Sump Manifold		Appelez-nous	-
509	WD12X21677		Plate Floor Manual		Appelez-nous	-
510	WD21X22838		Stem Flood		Appelez-nous	-
511	WD01X22825		O Ring		Appelez-nous	-
792	WG04A00073		Clamp   (Replaces: WD01X10104)			Immediately	$ 11.44
