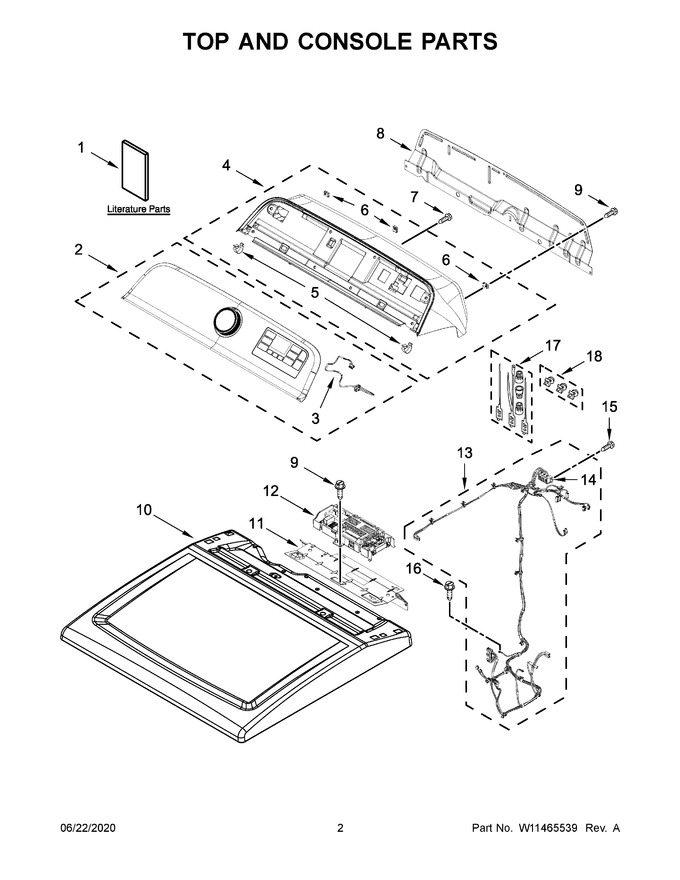

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Dryer Heating Parts-electric


06 - Door Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11268643		Installation Instructions		Appelez-nous	-
2	W11419056		Assembly, Console Fascia (complete)   (Replaces: W11164032)				$ 590.77
3	W11164312		Harness, User Interface (hmi)				$ 159.98
4	W11401363		Console (white)   (Replaces: W11178519)				$ 346.71
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
6	W11213336		Nut, "u   (Replaces: W10298336)				$ 7.74
7	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 7.86
8	W11433112		Panel, Rear Console   (Replaces: W11259799)				$ 62.93
9	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.79
10	W11641121		Top (white)   (Replaces: W10260246)			Immediately	$ 204.86
11	W11431865		Bracket, Electronic Control   (Replaces: W10896068)				$ 54.51
12	W11413569		Control, Electronic (acu)   (Replaces: W11400356)			Immediately	$ 467.75
13	W11690904		Harness, Main Wiring   (Replaces: W11164044)				$ 223.90
14	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 23.02
15	WP308685		Screw   (Replaces: 3393008)			Immediately	$ 7.87
16	W10850756		Screw   (Replaces: W10773242)				$ 7.76
17	279318		Terminal, Brass And Tinned (includes Terminal Block Screw Kit)			Immediately	$ 100.99
18	279393		Screw Kit, Terminal Block			Immediately	$ 47.37
10A	W11641122		Top (chrome Shadow)   (Replaces: W10458665)				$ 256.02
1A	W11175222		Tech Sheet		Appelez-nous	-
1B	W11175247		Quick Start Guide		Appelez-nous	-
4A	W11401366		Console (chrome Shadow)   (Replaces: W11178520)			Immediately	$ 360.59
