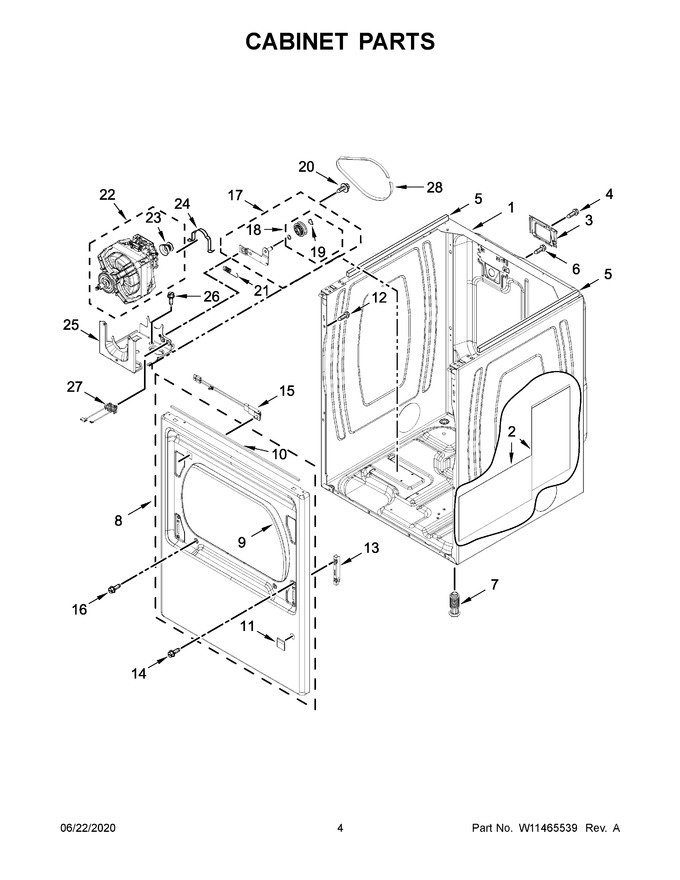

03 - Cabinet Parts
04 - Bulkhead Parts
05 - Dryer Heating Parts-electric
06 - Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11417441 | Cabinet (white) (Replaces: W11161907) |
|
$ 419.21 | |||||
| 2 | W11690850 | Panel, Dampening (Replaces: W11313127) |
|
$ 25.88 | |||||
| 3 | W11662367 | Cover, Terminal Block (Replaces: W11394868) |
|
$ 69.68 | |||||
| 4 | WP3390631 | Screw (Replaces: 3390631) |
|
$ 7.82 | |||||
| 5 | W11352071 | Seal, Foam (Replaces: W11241070) |
|
$ 64.89 | |||||
| 6 | W11693756 | Screw (Replaces: 359625) |
|
Immediately | $ 14.06 | ||||
| 7 | W11444912 | Foot, Dryer (Replaces: W11332301) |
|
Immediately | $ 26.84 | ||||
| 8 | W11402947 | Panel, Front (white) (Replaces: W11122123) |
|
Immediately | $ 150.55 | ||||
| 9 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 31.42 | ||||
| 10 | W11406199 | Seal, Foam (Replaces: W11261179) |
|
$ 62.14 | |||||
| 11 | W10811916 | Plug, Front Panel (white) (Replaces: 8564457) |
|
$ 15.71 | |||||
| 12 | W10891954 | Screw (Replaces: 8281212) |
|
- | |||||
| 13 | W11568982 | Hinge, Inner Door (receptacle) (Replaces: W11116026) |
|
Immediately | $ 21.42 | ||||
| 14 | W10704731 | Screw |
|
- | |||||
| 15 | W11551763 | Assembly, Door Switch (Replaces: W11307535) |
|
Immediately | $ 31.69 | ||||
| 16 | WP308685 | Screw (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 17 | W10837240 | Assembly, Idler (Replaces: W10547287) |
|
Immediately | $ 35.78 | ||||
| 18 | 279640 | Assembly, Pulley (Replaces: W10468057) |
|
Immediately | $ 32.51 | ||||
| 19 | WPW10512946 | Washer, Tri Ring (Replaces: W10512946) |
|
Immediately | $ 8.80 | ||||
| 20 | WP3389420 | Screw (Replaces: 3389420) |
|
$ 8.02 | |||||
| 21 | WPW10446781 | Spring, Idler (Replaces: W10446781) |
|
Immediately | $ 24.57 | ||||
| 22 | 279787 | Assembly, Motor (Replaces: W10396028) |
|
Immediately | $ 235.65 | ||||
| 23 | W10837625 | Pulley, Motor (Replaces: W10460106) |
|
Immediately | $ 12.16 | ||||
| 24 | WPW10121316 | Clamp, Motor Mount (Replaces: W10121316) |
|
Immediately | $ 25.68 | ||||
| 25 | W11481730 | Bracket, Motor Mounting (Replaces: W10242878) |
|
Immediately | $ 87.83 | ||||
| 26 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 27 | W10847984 | Switch, Broken Belt (Replaces: W10724631) |
|
Immediately | $ 26.90 | ||||
| 28 | 661570V | Belt, Drive (Replaces: 3387610) |
|
Immediately | $ 32.81 | ||||
| 11A | W11406198 | Plug, Front Panel (chrome Shadow) (Replaces: W11305280) |
|
$ 22.23 | |||||
| 1A | W11417445 | Cabinet (chrome Shadow) (Replaces: W11174572) |
|
Immediately | $ 491.22 | ||||
| 8A | W11402953 | Panel, Front (chrome Shadow) (Replaces: W11176922) |
|
Immediately | $ 215.81 |
