01 - Cover Sheet

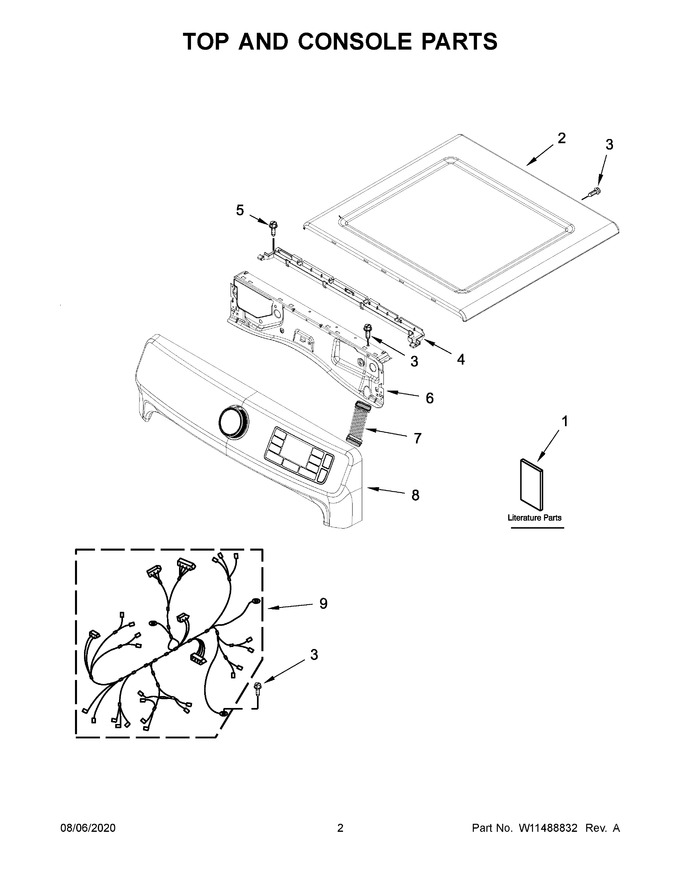

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11364660 | Owners Manual |
|
- | |||||
| 2 | WPW10208383 | Top (white) (Replaces: W10208383) |
|
$ 323.93 | |||||
| 3 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 4 | W11310027 | Channel, Water (Replaces: W11255768) |
|
$ 23.74 | |||||
| 5 | W11686675 | Screw (Replaces: 12990702) |
|
$ 14.27 | |||||
| 6 | W11480682 | Bracket, Console (Replaces: W10208198) |
|
$ 81.21 | |||||
| 7 | W11316625 | Jumper, Harness Hmi (board To Board) (Replaces: W10920818) |
|
$ 176.49 | |||||
| 8 | W11397843 | Assembly, Console (white) (Replaces: W11314477) |
|
Immediately | $ 590.31 | ||||
| 9 | W11690849 | Harness, Wiring (main) (Replaces: W11157860) |
|
- | |||||
| 1A | W11460669 | Wiring Diagram |
|
- | |||||
| 1B | W11356334 | Quick Start Guide |
|
- |
