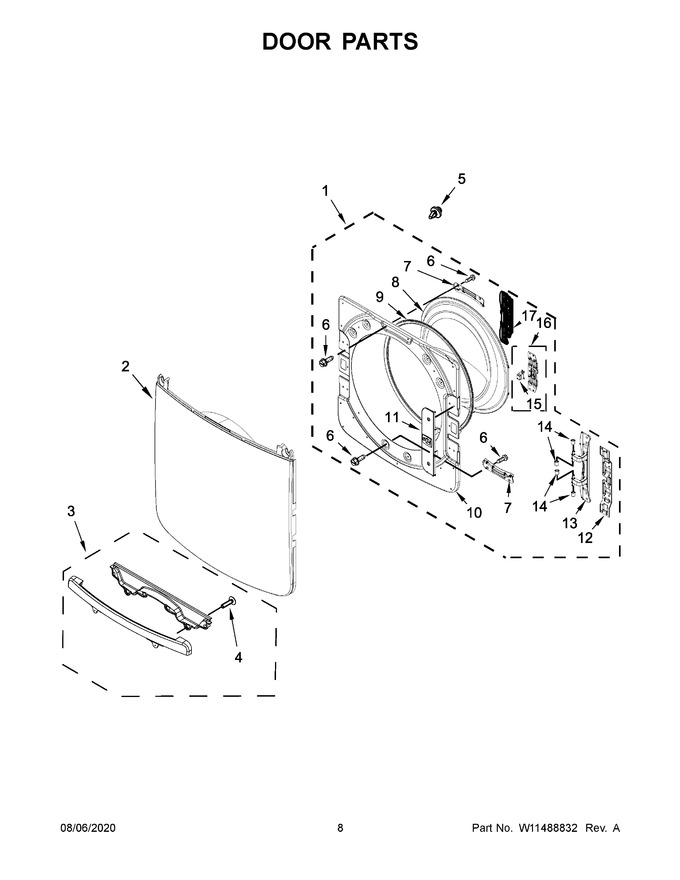

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11465962		Assembly, Inner Door   (Replaces: W11218177)				$ 285.95
2	W11310052		Assembly, Outer Door   (Replaces: W11196020)				$ 186.12
3	W10626039		Handle, Door (black)				$ 93.84
4	W10850046		Screw   (Replaces: 9742177)			Immediately	$ 7.55
5	W11310051		Bumper, Door   (Replaces: W11178950)			Immediately	$ 24.79
6	W11661566		Screw   (Replaces: W10288126)				$ 14.73
7	W11096008		Bracket, Glass		Appelez-nous	-
8	W11310036		Glass, Door   (Replaces: W10891207)				$ 181.59
9	W11310035		Seal, Glass   (Replaces: W11183899)			Immediately	$ 86.79
10	W11491634		Door, Inner   (Replaces: W11374448)				$ 252.96
11	W11310050		Cover, Door Catch   (Replaces: W11178949)				$ 25.26
12	WPW10208419		Plate, Hinge Retainer   (Replaces: W10208419)				$ 85.94
13	WPW10208415		Hinge, Base   (Replaces: W10208415)			Immediately	$ 117.42
14	WPW10208398		Cap, Hinge   (Replaces: W10208398)			Immediately	$ 21.47
15	W11240283		Assembly, Spring Catch   (Replaces: W10208401)			Immediately	$ 28.04
16	WPW10208254		Assembly, Door Catch   (Replaces: W10208254)				$ 85.34
17	W11051465		Assembly, Door Hinge   (Replaces: W10208414)			Immediately	$ 98.31
