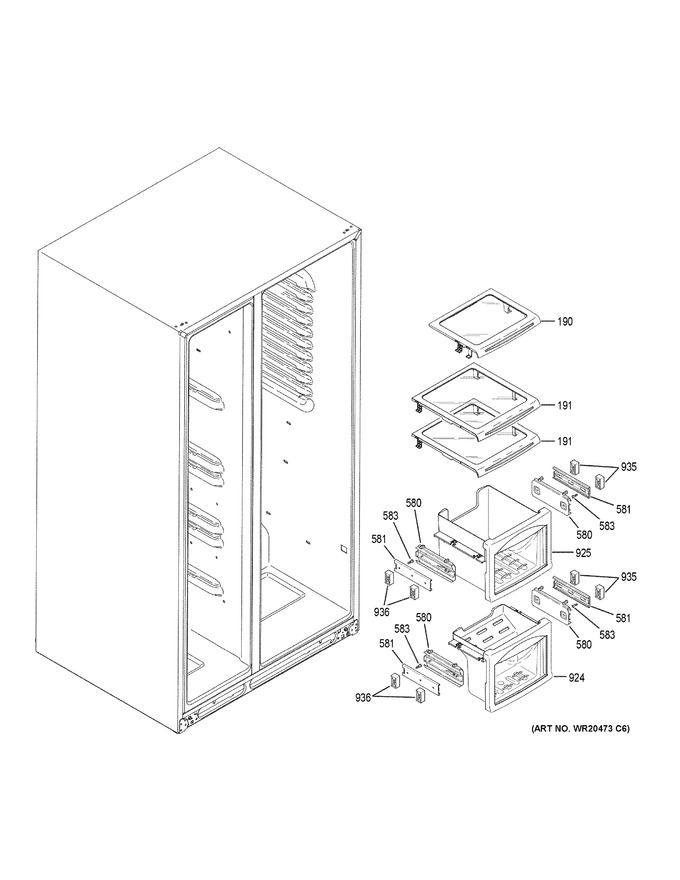

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 190 | WR32X25919 | Shelf Glass Fz Asm |
|
- | |||||
| 191 | WR32X24435 | Shelf Glass Fz Asm |
|
- | |||||
| 580 | WR72X10194 | Slide And Bracket Asm R |
|
- | |||||
| 580 | WR72X10193 | Slide And Bracket Asm L |
|
- | |||||
| 581 | WR72X10195 | Slide Liner |
|
- | |||||
| 583 | WR01X10629 | Scr 8-18 Ab Hw 1/2 S |
|
- | |||||
| 924 | WR32X25888 | Pan Bottom Asm |
|
- | |||||
| 925 | WR32X25889 | Pan Middle Asm |
|
- | |||||
| 935 | WR72X26148 | Spacer |
|
- | |||||
| 936 | WR72X26149 | Spacer |
|
- |
