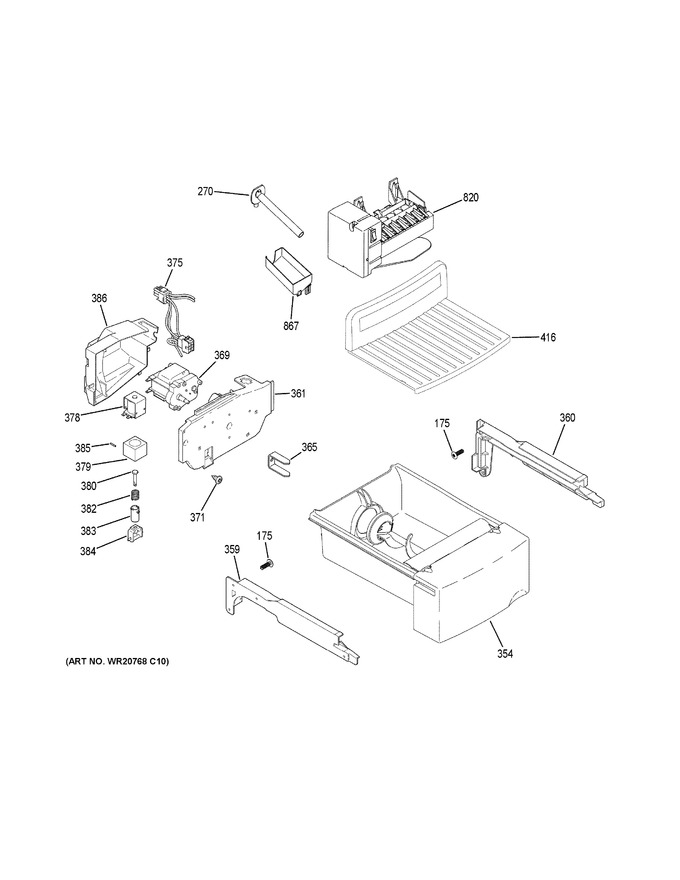

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
175	WR01X10035		Screw 8-18 Ab Ihw 5/8 S		Appelez-nous	-
270	WG03F00304		Grommet And Tube Asm   (Replaces: WR17X11168)				$ 23.82
354	WR17X24426		Bucket And Auger Asm		Appelez-nous	-
359	WR72X10414		Glide Bucket Lh Disp		Appelez-nous	-
360	WR72X10415		Glide Bucket Rh Disp		Appelez-nous	-
361	WR01L00869		Cover Motor Back   (Replaces: WR17X12323)				$ 62.03
365	WG04F04255		Drive Auger Disp   (Replaces: WR02X11941)				$ 30.18
369	WR60X22815		Motor Crusher Disp		Appelez-nous	-
371	WR01X10619		Scr 10-18 Hi/lo Hxw 1/2		Appelez-nous	-
375	WR23X26670		Harness Motor Disp		Appelez-nous	-
378	WR62X20426		Solenoid And Arm Asm		Appelez-nous	-
379	WR17X12811		Shroud Solenoid		Appelez-nous	-
380	WR01F00328		Plunger Solenoid   (Replaces: WR17X1064)				$ 151.81
382	WG03A00097		Spring Solenoid Linkage   (Replaces: WR2X4258)				$ 79.62
383	WR01F00328		Collar Solenoid Disp   (Replaces: WR17X12742)				$ 151.81
384	WG04F00407		Stirrup Solenoid Display   (Replaces: WR17X1066)				$ 95.41
385	WR01F00328		Pin Spiral   (Replaces: WR2X4259)				$ 151.81
386	WR02X12491		Cover Auger Motor		Appelez-nous	-
416	WR71X24436		Shelf Chiller		Appelez-nous	-
820	IM6D		Kit Rplcmt Wr30x10093   (Replaces: WR30X10093)			Immediately	$ 330.86
867	WR29X10109		Cup Fill Im		Appelez-nous	-
