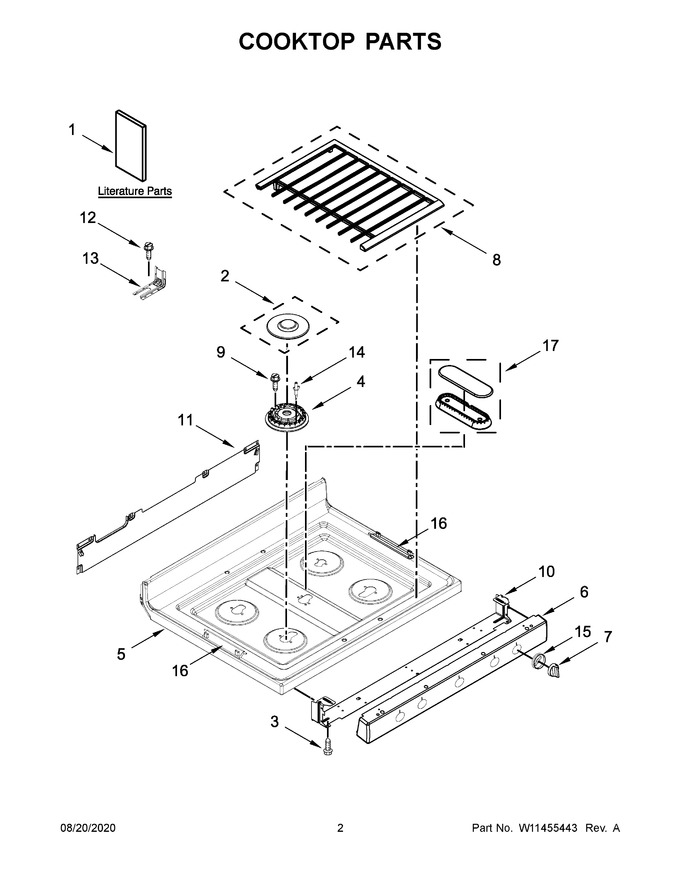

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11404104		Installation Instructions		Appelez-nous	-
2	W11834859		Burner Cap Kit (black (set Of 4))   (Replaces: W11352138)		Appelez-nous	-
3	WPW10067840		Screw   (Replaces: W10067840)				$ 7.47
4	W11435630		Spreader, Flame (left Front & Right Front)   (Replaces: W11352018)			Immediately	$ 73.91
5	W11459372		Cooktop (includes Hinges) (black)   (Replaces: W11418087)				$ 407.62
6	W10904610		Panel, Manifold (stainless)   (Replaces: W10864528)		Appelez-nous	-
7	W11122880		Knob (stainless)   (Replaces: W10862482)			Immediately	$ 24.14
8	W11381653		Grate Kit (black(set Of 2))   (Replaces: W11241659)				$ 370.13
9	W11241230		Screw   (Replaces: W10673618)			Immediately	$ 13.26
10	W11379946		Manifold Panel Bracket		Appelez-nous	-
11	W11379358		Rear Gas Cooktop Bracket		Appelez-nous	-
12	W11839019		Bracket, Anti-tip   (Replaces: W11379945)			Immediately	$ 25.69
13	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 27.65
14	W11453940		Electrode (left Front, Left Rear)   (Replaces: W11428831)				$ 58.01
15	W11188712		Bezel   (Replaces: W10850043)			Immediately	$ 55.33
16	N/P		Hinge, Grate (not Serviced)		Appelez-nous	-
17	W11435660		Spreader, Flame   (Replaces: W11367086)			Immediately	$ 88.70
14A	W11453920		Electrode (right Front, Right Rear, Center)   (Replaces: W11428858)				$ 57.92
1A	W11404076		Use And Care Guide		Appelez-nous	-
1B	W10400066		Quick Start Guide (english)		Appelez-nous	-
1C	W10400067		Quick Start Guide (french)		Appelez-nous	-
1D	W10843073		Tech Sheet (english)		Appelez-nous	-
1E	W10841359		Tech Sheet (french)		Appelez-nous	-
4A	W11435659		Spreader, Flame (left Rear)   (Replaces: W11352020)				$ 76.37
4B	W11435657		Spreader, Flame (right Rear)   (Replaces: W11352021)				$ 75.99
NI	16515		Clip, Harness   (Replaces: 313438)				$ 18.48
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10797419		Harness, Main		Appelez-nous	-
NI	W11161843		Harness, Bake/broil   (Replaces: W10753750)				$ 194.90
NI	3196896		Clip, Wire		Appelez-nous	-
NI	W10334923		Clip, Gas Wiring		Appelez-nous	-
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 80.10
