01 - Cover Sheet
02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Manifold Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:

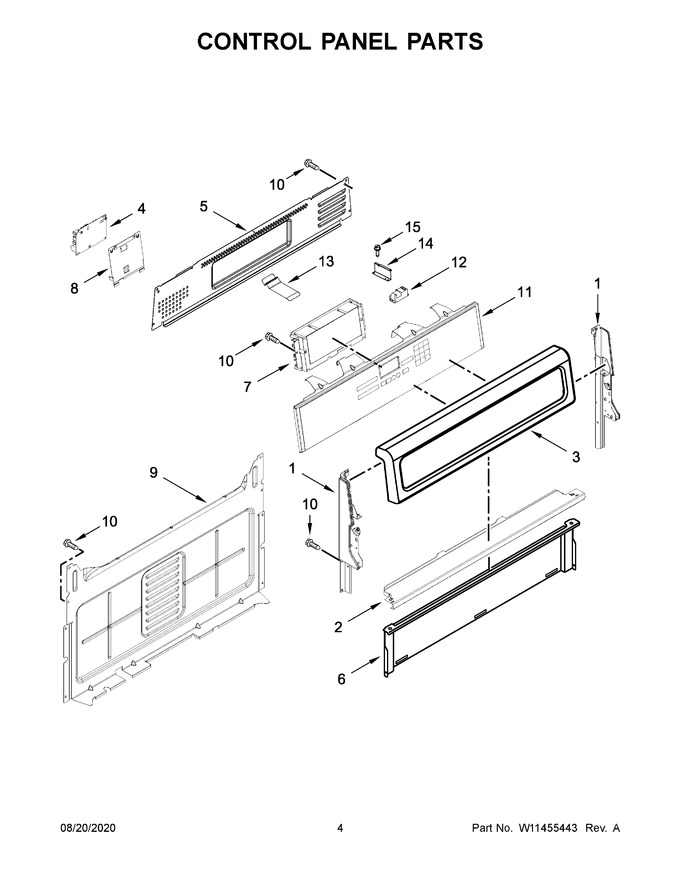

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219664 | Endcap (black (left)) (Replaces: W11130372) |
|
$ 153.83 | |||||
| 2 | W10516123 | Bracket, Console Mounting |
|
- | |||||
| 3 | WPW10318550 | Console (stainless) (Replaces: W10318550) |
|
$ 273.23 | |||||
| 4 | W11162730 | Module, Spark Dsi (Replaces: W10920631) |
|
Immediately | $ 218.43 | ||||
| 5 | W10198745 | Cover, Upper |
|
$ 128.90 | |||||
| 6 | W10192841 | Shield, Heat |
|
$ 106.69 | |||||
| 7 | W11342985 | Mrc Control (Replaces: W10901001) |
|
$ 513.91 | |||||
| 8 | W10762981 | Bracket, Mounting |
|
$ 76.42 | |||||
| 9 | W10184251 | Cover, Back |
|
- | |||||
| 10 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 11 | W10881757 | Assembly, Active Overlay (stainless) (Replaces: W10840426) |
|
$ 354.05 | |||||
| 12 | WPW10475149 | Module, Spark (5+0) (Replaces: W10475149) |
|
Immediately | $ 179.05 | ||||
| 13 | WPW10551614 | Spreader, Clip-spring (Replaces: W10551614) |
|
$ 13.73 | |||||
| 14 | W10901176 | Bracket, Ignitor (Replaces: W10797001) |
|
- | |||||
| 15 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 1A | W11219665 | Endcap (black (right)) (Replaces: W11130379) |
|
$ 45.17 |
