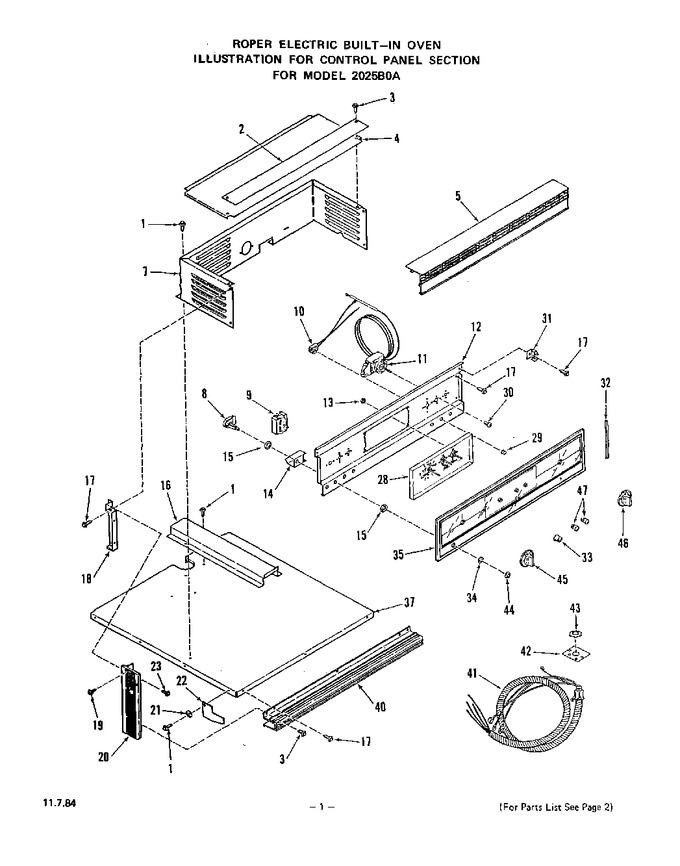

02 - Control Panel


03 - Body


04 - Oven Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	327320		Screw 10-16x7/16``		Appelez-nous	-
2	329544		Extension-top Cover		Appelez-nous	-
3	102429		Screw 10 - 32 X 3/8``		Appelez-nous	-
4	327989		Top Cover-control Housing		Appelez-nous	-
5	328837		Trim		Appelez-nous	-
7	327989		Control Housing		Appelez-nous	-
8	298794		Push Switch-oven Light		Appelez-nous	-
9	326325		Selector Switch		Appelez-nous	-
10	327448		Indicator Light-oven		Appelez-nous	-
11	326542		Thermostat		Appelez-nous	-
12	327979		Control Mounting Panel		Appelez-nous	-
13	74056		Keps Nut 10-24		Appelez-nous	-
14	291351		Shield-switch		Appelez-nous	-
15	236129		Lock Nut		Appelez-nous	-
16	327990		Wire Cover		Appelez-nous	-
17	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 8.63
18	328061		Left		Appelez-nous	-
18	328060		Right		Appelez-nous	-
19	299766		Screw 6-32 X 1/2``		Appelez-nous	-
20	327991		Right		Appelez-nous	-
20	327992		Left		Appelez-nous	-
21	106462		Washer		Appelez-nous	-
22	312395		Heat Shield (lt. Or Rt.)		Appelez-nous	-
23	293121		Screw 6-32x1/4``		Appelez-nous	-
28	329219		Clock W/1 Hr. Timer (inc`s. Key 48)		Appelez-nous	-
29	233161		Lens-indicator Light		Appelez-nous	-
30	78565		Screw 8-32x3/16``		Appelez-nous	-
31	328863		Retainer-glass (rt. Or Lt.)		Appelez-nous	-
32	328958		End Trim-control Panel Glass (rt. Or Lt.)		Appelez-nous	-
33	109225		Knob-clock (start & Stop Time)		Appelez-nous	-
34	104838		Washer		Appelez-nous	-
35	329211		Control Panel Glass		Appelez-nous	-
37	329129		Cabinet Top		Appelez-nous	-
40	328782		Trim-control Panel		Appelez-nous	-
41	329372		Harness Conduit		Appelez-nous	-
42	294983		Plate (for Key 41)		Appelez-nous	-
43	110340		Nut (for Key 41)		Appelez-nous	-
44	87403		Knurled Nut		Appelez-nous	-
45	329532		Knob-selector Switch		Appelez-nous	-
46	329531		Knob-thermostat		Appelez-nous	-
47	109225		Knob-clock (start & Stop Time)		Appelez-nous	-
