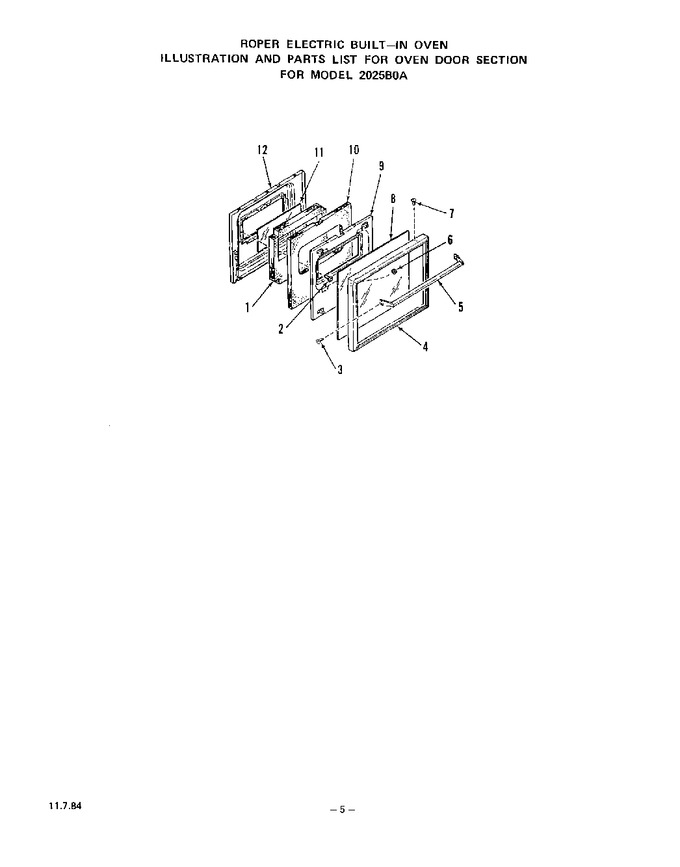

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 328800 | Insulation |
|
- | |||||
| 2 | WP112432 | Screw 10-32x7/16`` (Replaces: 311484) |
|
$ 8.63 | |||||
| 3 | 319447 | Screw 8-32 X 1/2`` |
|
- | |||||
| 4 | 328080 | Frame-oven Door |
|
- | |||||
| 5 | 328062 | Handle |
|
- | |||||
| 6 | 239764 | Keps Nut 8-32 |
|
- | |||||
| 7 | 327621 | Screw 6-20x3/8`` |
|
- | |||||
| 8 | 328044 | Oven Door Glass-outer |
|
- | |||||
| 9 | 328153 | Retainer-oven Door Insulation |
|
- | |||||
| 10 | 328799 | Insulation |
|
- | |||||
| 11 | 328045 | Oven Door Glass-inner |
|
- | |||||
| 12 | 328011 | Lining-oven Door |
|
- |
