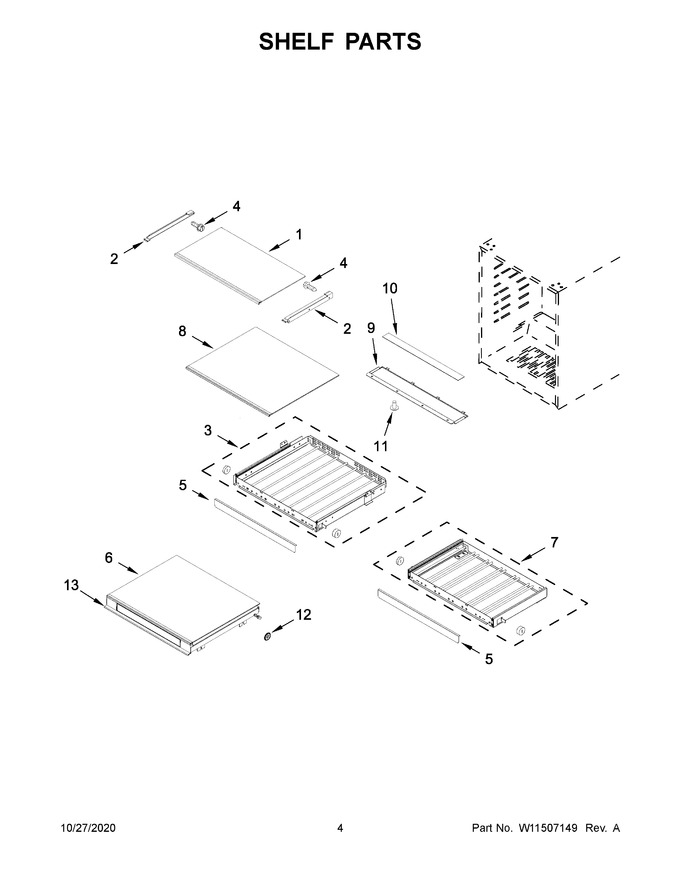

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10807583		Glass Shelf Assembly, Top   (Replaces: W10803988)				$ 266.83
2	W10797333		Support, Shelf (right Hand)				$ 30.15
3	W10803969		Top Wine Rack Assembly (left Hinge)				$ 360.82
4	W10319187		Screw   (Replaces: W10780344)				$ 73.51
5	W10803983		Trim, Shelf				$ 132.68
6	W11522060		Control Panel Assembly (does Not Include Bottom Glass Shelf)   (Replaces: W11506870)				$ 613.57
7	W10803971		Wine Rack Assembly, Lower				$ 361.12
8	W10803990		Glass Shelf Assembly, Bottom		Appelez-nous	-
9	W10622774		Lens, Light				$ 33.12
10	W11441723		Led Light Bar   (Replaces: W10797323)				$ 294.65
11	W10204808		Screw   (Replaces: W10797324)		Appelez-nous	-
12	W10621514		Liner Bushing				$ 31.71
13	W11506424		Trim, Glass Shelf		Appelez-nous	-
2A	W10797332		Support, Shelf (left Hand)				$ 30.15
3A	W11506481		Top Wine Rack Assembly (right Hinge)		Appelez-nous	-
