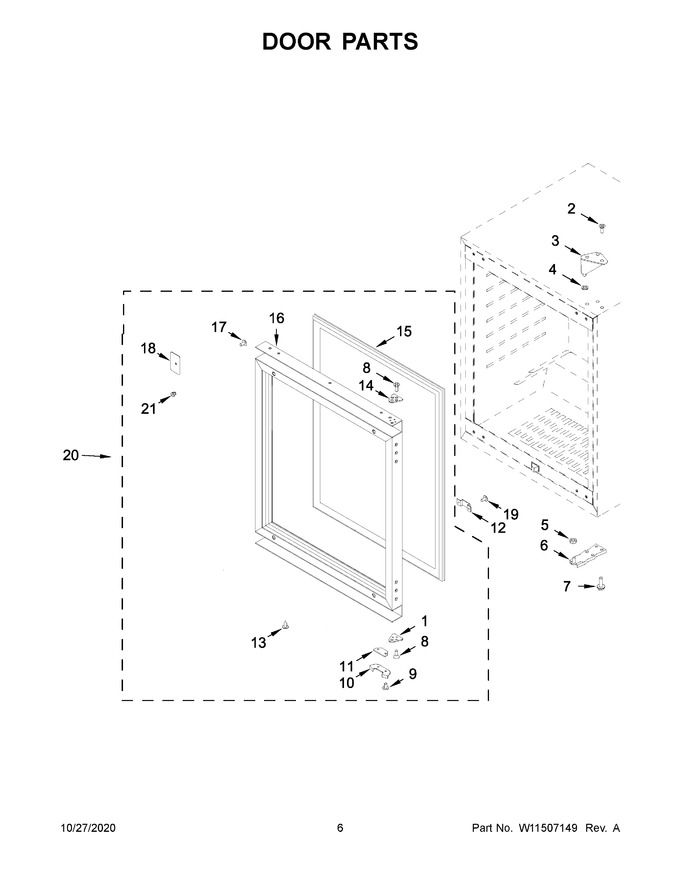

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4344798		Spacer, Bottom Hinge				$ 20.03
2	4344796		Screw				$ 16.82
3	4344754		Hinge, Top				$ 89.01
4	4344760		Washer				$ 15.91
5	W11241702		Washer   (Replaces: W10162992)				$ 14.27
6	W10239363		Bottom Hinge (right Hinge)				$ 80.61
7	W10780355		Bolt				$ 50.19
8	W10243123		Screw   (Replaces: W10797377)				$ 16.82
9	4344801		Screw				$ 16.82
10	4344802		Door Stop				$ 21.98
11	4344803		Spacer, Door				$ 175.49
12	W10622808		Switch Plate				$ 27.27
13	W10837731		Screw   (Replaces: W10204865)				$ 8.30
14	4344804		Spacer, Top Hinge				$ 20.03
15	W11625076		Gasket   (Replaces: W10797384)				$ 109.21
16	W11431152		Door Assembly (right Hinge)   (Replaces: W10803977)				$ 852.60
17	W10859467		Screw, Handle   (Replaces: W10204866)				$ 80.23
18	W11263339		Plate, Door Handle   (Replaces: W10622815)				$ 17.39
19	W10319187		Screw   (Replaces: W10780344)				$ 73.51
20	W11522061		Complete Door (overlay (right Hand))   (Replaces: W11506525)		Appelez-nous	-
21	W11179356		Stud, Mounting   (Replaces: W10772902)				$ 16.62
16A	W11431105		Door Assembly (left Hinge)   (Replaces: W10803978)				$ 857.49
20A	W11522096		Complete Door (overlay (left Hand))   (Replaces: W11506866)		Appelez-nous	-
6A	4344787		Bottom Hinge (left Hinge)				$ 217.36
NI	W10800048		Overlay Installation Parts		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
