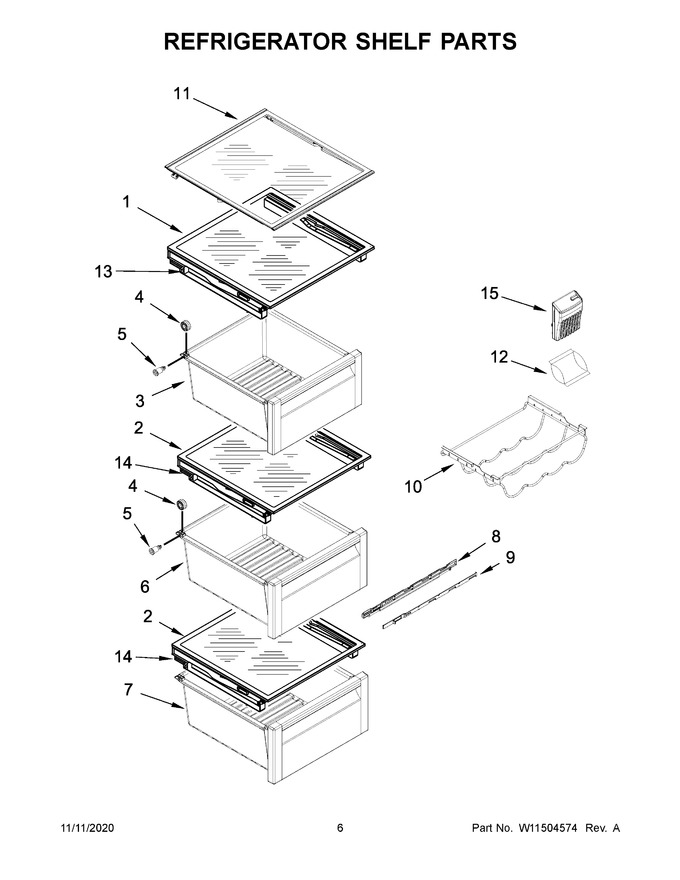

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10440265 | Cover, Assembly (Replaces: W10440265) |
|
$ 257.99 | |||||
| 2 | WPW10440266 | Cover, Assembly (Replaces: W10440266) |
|
$ 286.90 | |||||
| 3 | WPW10542037 | Pan, Snack (Replaces: W10542037) |
|
Immediately | $ 329.54 | ||||
| 4 | W11164152 | Roller, Pan (Replaces: W10628713) |
|
Immediately | $ 15.74 | ||||
| 5 | W11175807 | Axle, Roller (Replaces: W10628712) |
|
Immediately | $ 17.90 | ||||
| 6 | WPW10531081 | Pan, Crisper (Replaces: W10531081) |
|
Immediately | $ 207.11 | ||||
| 7 | WPW10531082 | Pan, Meat (Replaces: W10531082) |
|
$ 148.02 | |||||
| 8 | W10316452 | Housing, Humidity |
|
$ 92.65 | |||||
| 9 | W10257334 | Slide, Humidity |
|
$ 61.15 | |||||
| 10 | W10395554 | Wine Rack |
|
$ 166.62 | |||||
| 11 | W11300659 | Assembly, Shelf (Replaces: W11180785) |
|
Immediately | $ 255.75 | ||||
| 12 | W10346771 | Filter, Produce Preserver |
|
- | |||||
| 13 | W11766461 | Rail, Track (left Side) (Replaces: W10247942) |
|
$ 35.54 | |||||
| 14 | W11678574 | Rail, Track (left Side) (Replaces: W10805083) |
|
Immediately | $ 22.62 | ||||
| 15 | WPW10408747 | Holder, Filter (Replaces: W10408747) |
|
$ 32.61 | |||||
| 13A | W11678966 | Rail, Track (right Side) (Replaces: W10247940) |
|
$ 22.68 | |||||
| 14A | W11685636 | Rail, Track (right Side) (Replaces: W10805082) |
|
Immediately | $ 22.62 |
