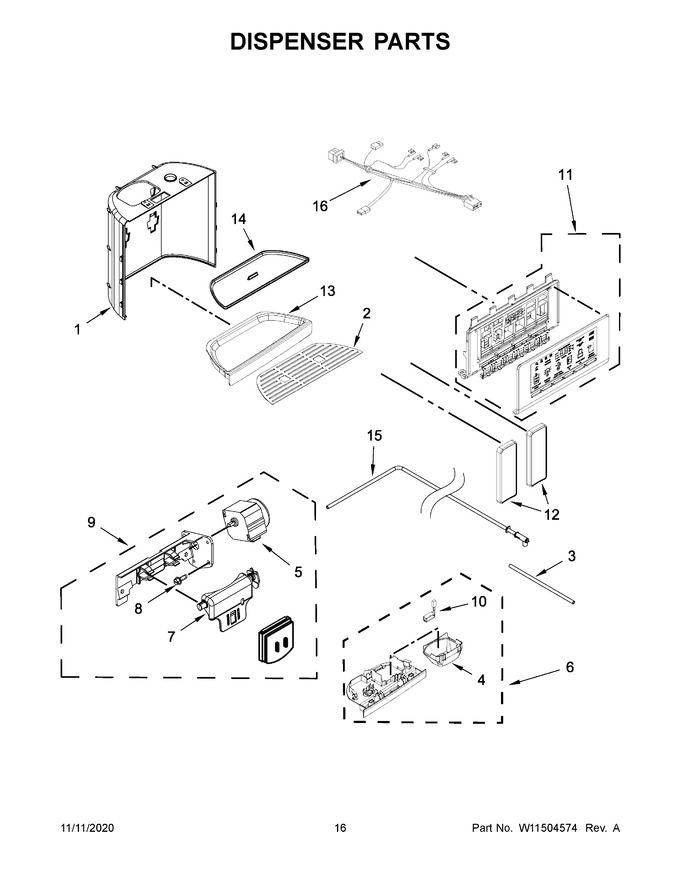

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10317259 | Wall, Dispenser False (black) |
|
Immediately | $ 133.62 | ||||
| 2 | WPW10317270 | Grate, Drip Tray (Replaces: W10317270) |
|
$ 75.65 | |||||
| 3 | W11620106 | Tube, Water (Replaces: W10691730) |
|
$ 117.84 | |||||
| 4 | WPW10435760 | Guide, Ice (Replaces: W10435760) |
|
$ 23.94 | |||||
| 5 | WPW10205978 | Motor, Dispenser (Replaces: W10205978) |
|
$ 104.12 | |||||
| 6 | W10353593 | Assembly, Seperator |
|
$ 135.48 | |||||
| 7 | WPW10346124 | Support, Ice Door (Replaces: W10346124) |
|
$ 41.85 | |||||
| 8 | WP4449745 | Screw (Replaces: 4449745) |
|
$ 7.98 | |||||
| 9 | W11130210 | Assembly, Ice Door (Replaces: W10781990) |
|
$ 160.56 | |||||
| 10 | W11290115 | Assembly, Led (Replaces: W10238083) |
|
$ 84.45 | |||||
| 11 | W11512427 | User Interface Assembly (Replaces: W11256964) |
|
$ 353.01 | |||||
| 12 | W11561037 | Pad, Ice And Water (black) (Replaces: W10317253) |
|
$ 82.93 | |||||
| 13 | W10317265 | Tray, Housing (black) |
|
$ 62.19 | |||||
| 14 | W10317275 | Drip Tray, Insert (black) |
|
- | |||||
| 15 | WPW10386778 | Assembly, Water Fitting (Replaces: W10386778) |
|
Immediately | $ 132.74 | ||||
| 16 | W11296837 | Harness, Wire |
|
Immediately | $ 132.06 | ||||
| 12A | WPW10346924 | Pad, Ice And Water (grey) (Replaces: W10346924) |
|
Immediately | $ 289.65 |
