Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11364660 Owners Manual Appelez-nous -
2 WPW10208383 Top (white)   (Replaces: W10208383) Special Order $ 323.93

3 WP488729 Screw   (Replaces: 3390647) In-Stock Immediately $ 8.28

4 W11310027 Channel, Water   (Replaces: W11255768) Special Order $ 23.74

5 W11686675 Screw   (Replaces: 12990702) Special Order $ 14.27

6 W11480682 Bracket, Console   (Replaces: W10208198) Special Order $ 81.21

7 W11231800 Seal Appelez-nous -
8 W11123146 Assembly, Speaker   (Replaces: W10568405) Special Order $ 80.93

9 W11459337 Harness, User Interface   (Replaces: W11160620) Special Order $ 33.89

10 W11378949 Console Assembly (white)   (Replaces: W11314470) In-Stock Immediately $ 311.13

11 W11223753 Badge   (Replaces: W10884773) In-Stock Immediately $ 87.26

12 W11310055 Harness, Wiring (main)   (Replaces: W11109747) Special Order $ 248.47

1A W11459719 Tech Sheet Appelez-nous -
1B W11457204 Wiring Diagram Appelez-nous -
1C W11355749 Quick Start Guide Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

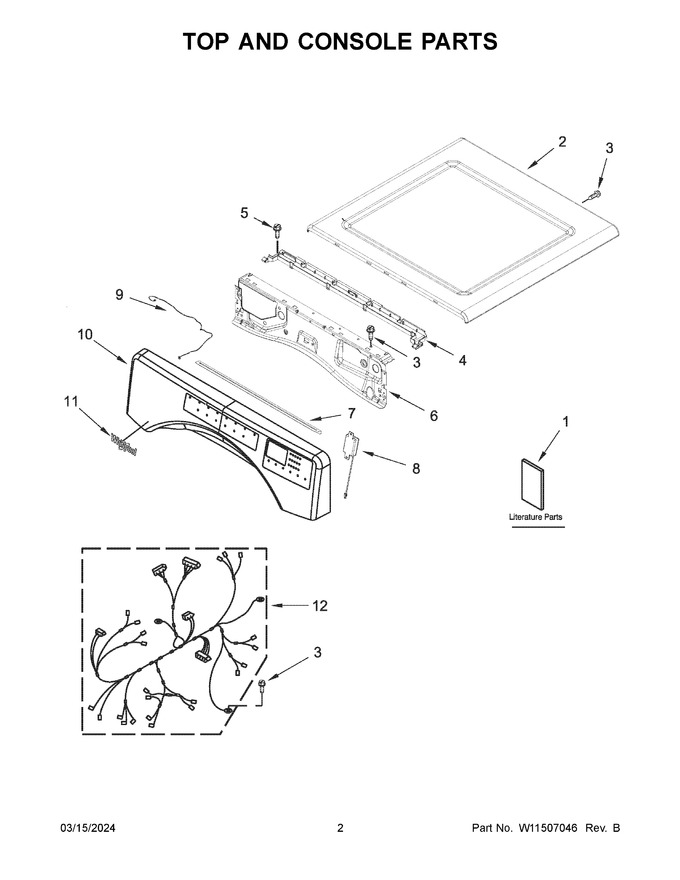

Diagram for WED560LHW2
