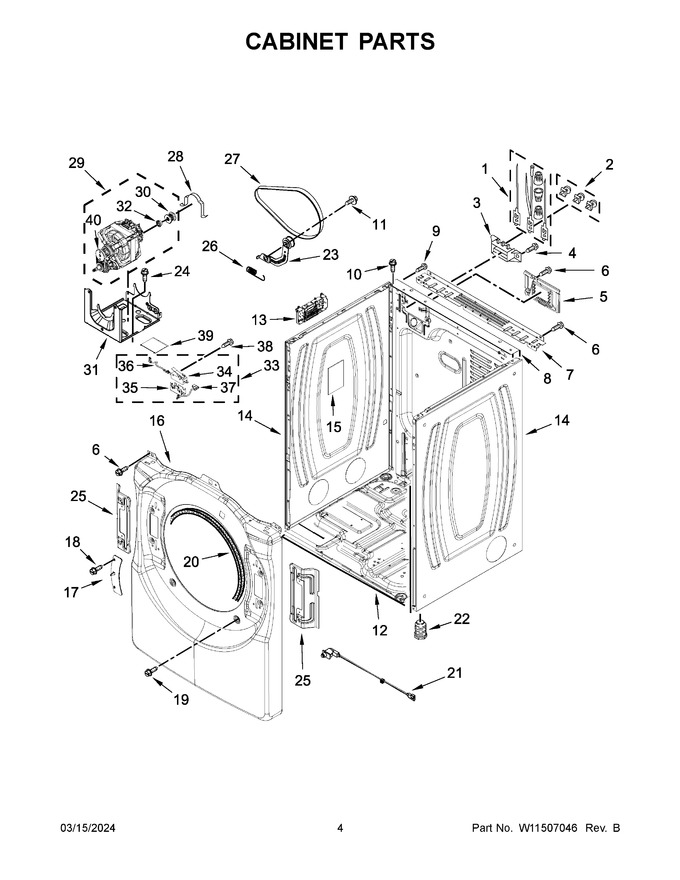

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 279318 | Terminal, Brass And Tinned (includes Terminal Block Screw Kit) |
|
Immediately | $ 106.04 | ||||
| 2 | 279393 | Screw Kit, Terminal Block |
|
Immediately | $ 55.66 | ||||
| 3 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 24.17 | |||||
| 4 | WP489463 | Screw (Replaces: 489463) |
|
$ 8.25 | |||||
| 5 | W11662367 | Cover, Terminal Block (Replaces: W11394868) |
|
$ 73.16 | |||||
| 6 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 7 | WPW10208382 | Bracket, Rear (Replaces: W10208382) |
|
$ 46.18 | |||||
| 8 | W10487431 | Panel, Rear |
|
$ 190.32 | |||||
| 9 | W10850756 | Screw (Replaces: W10773242) |
|
$ 8.20 | |||||
| 10 | WP308685 | Screw (Replaces: 3393008) |
|
Immediately | $ 7.87 | ||||
| 11 | WP3389420 | Screw (Replaces: 3389420) |
|
$ 8.62 | |||||
| 12 | W11215531 | Base, Cabinet (Replaces: 8565046) |
|
$ 365.36 | |||||
| 13 | W11780156 | Appliance Control Unit (acu) (Replaces: W11461188) |
|
$ 295.70 | |||||
| 14 | W11233548 | Panel, Side (white) (Replaces: W11177568) |
|
$ 261.33 | |||||
| 15 | W11409002 | Pad, Foam (Replaces: W10504381) |
|
$ 23.76 | |||||
| 16 | W11752163 | Panel, Front (white) (Replaces: W11413344) |
|
Immediately | $ 337.96 | ||||
| 17 | W11310031 | Strike, Door (Replaces: W11126752) |
|
$ 29.06 | |||||
| 18 | W11661566 | Screw (Replaces: W10288126) |
|
$ 14.73 | |||||
| 19 | WP308685 | Screw (Replaces: 3357011) |
|
Immediately | $ 7.87 | ||||
| 20 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 31.42 | ||||
| 21 | W11551763 | Assembly, Door Switch (Replaces: W11307535) |
|
Immediately | $ 33.27 | ||||
| 22 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 8.55 | ||||
| 23 | WPW10344192 | Assembly, Idler (Replaces: W10344192) |
|
Immediately | $ 94.57 | ||||
| 24 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 25 | W11310030 | Bracket, Hinge (Replaces: W11084215) |
|
$ 24.71 | |||||
| 26 | WPW10446781 | Spring, Idler (Replaces: W10446781) |
|
Immediately | $ 25.80 | ||||
| 27 | 661570V | Belt, Drive (Replaces: 3387610) |
|
Immediately | $ 32.81 | ||||
| 28 | WPW10121316 | Clamp, Motor Mount (Replaces: W10121316) |
|
Immediately | $ 26.96 | ||||
| 29 | W11234001 | Assembly, Motor 60 Hz. (Replaces: W10396034) |
|
Immediately | $ 433.87 | ||||
| 30 | WP8066184 | Pulley, Motor (Replaces: 3394341) |
|
Immediately | $ 51.02 | ||||
| 31 | W11676491 | Bracket, Motor (Replaces: W10135695) |
|
$ 134.62 | |||||
| 32 | WP3393657 | Restrainer, Belt (Replaces: 3393657) |
|
Immediately | $ 139.08 | ||||
| 33 | W11247665 | Switch, Assembly (Replaces: W11233966) |
|
$ 27.72 | |||||
| 34 | WP8564010 | Assembly, Switch And Actuator (Replaces: 8564010) |
|
$ 104.11 | |||||
| 35 | W11247665 | Bracket, Switch (Replaces: W11159569) |
|
$ 27.72 | |||||
| 36 | W10167613 | Wire, Belt Switch |
|
- | |||||
| 37 | 8539892 | Wire, Motor To Belt Switch |
|
- | |||||
| 38 | WP98129 | Screw (Replaces: 98129) |
|
$ 8.18 | |||||
| 39 | W11113654 | Pad, Sound (Replaces: W10836094) |
|
$ 23.29 | |||||
| 40 | WP3405160 | Belt, Drive (blower Wheel) (Replaces: 3405160) |
|
Immediately | $ 36.99 | ||||
| NI | W10323246 | Kit, 4-way Vent |
|
Immediately | $ 89.96 | ||||
| NI | 49621 | Foot, Optional (extended Length Package Of 2) (not Included) (Replaces: 279810) |
|
Immediately | $ 8.55 |
