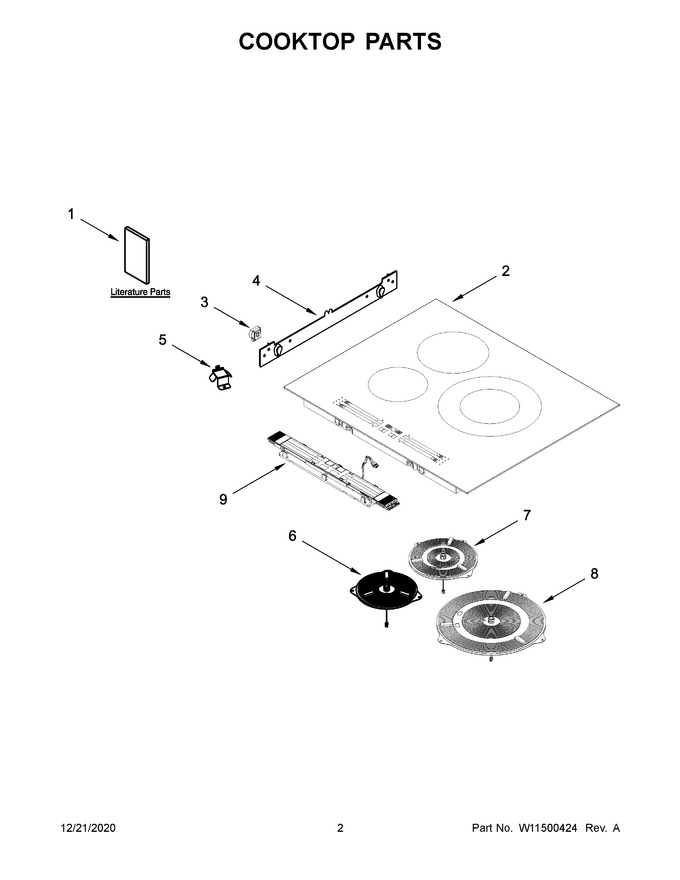

02 - Cooktop Parts
03 - Interior Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11362914 | Installation Instructions |
|
- | |||||
| 2 | W11638077 | Cooktop, Glass (Replaces: W11267462) |
|
Immediately | $ 1,212.81 | ||||
| 3 | W11495019 | Spring, Cooktop (Replaces: W11279477) |
|
Immediately | $ 40.26 | ||||
| 4 | W11495626 | Bracket, Cooktop Support (Replaces: W11279478) |
|
Immediately | $ 85.59 | ||||
| 5 | W11302457 | Filter Support |
|
- | |||||
| 6 | W11495033 | Element (6 Inch) (left Front) (Replaces: W11209662) |
|
Immediately | $ 252.17 | ||||
| 7 | W11495034 | Element (7 Inch) (left Rear) (Replaces: W11209663) |
|
Immediately | $ 281.52 | ||||
| 8 | W11495274 | Element (11 Inch) (right Front) (Replaces: W11209668) |
|
Immediately | $ 325.04 | ||||
| 9 | W11495299 | Hmi Board (Replaces: W11244362) |
|
Immediately | $ 465.90 | ||||
| 1A | W11245478 | Instructions, Undercounter Installation |
|
- | |||||
| 1B | W11362924 | Owner's Manual |
|
- | |||||
| 1C | W11362961 | Tech Sheet |
|
- |
