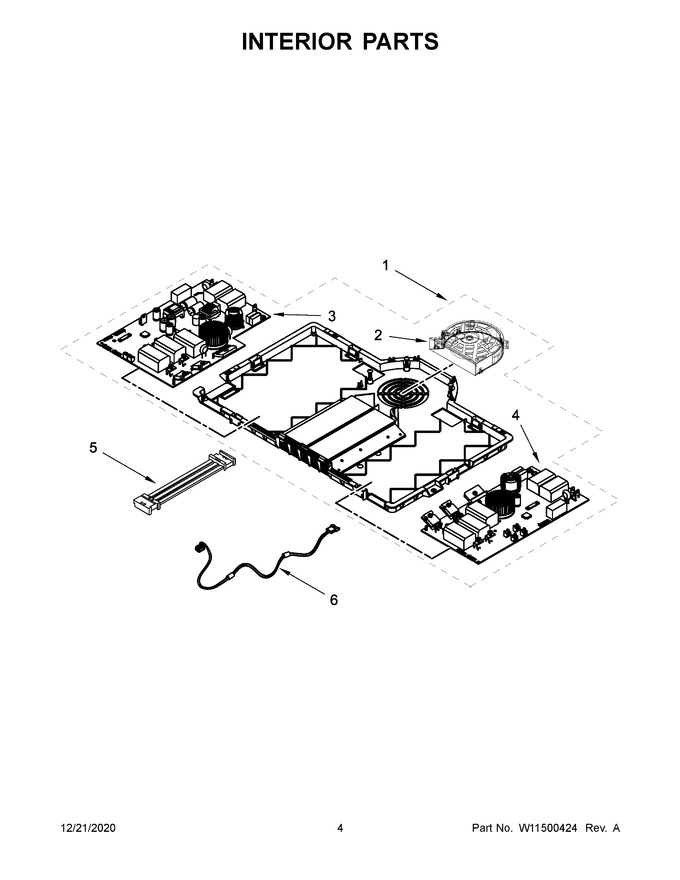

03 - Interior Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11495023 | Module Assembly (Replaces: W11431958) |
|
Immediately | $ 771.28 | ||||
| 2 | W11246545 | Blower Assembly |
|
Immediately | $ 279.85 | ||||
| 3 | W11495026 | Power Board (ascari) (Replaces: W11430778) |
|
Immediately | $ 334.21 | ||||
| 4 | W11495029 | Power Board (farina) (Replaces: W11430793) |
|
$ 311.42 | |||||
| 5 | W11249830 | Communication Harness (ipc1 - Ipc2) |
|
$ 47.65 | |||||
| 6 | W11347982 | Jumper Harness (hmi To Ipc) |
|
Immediately | $ 53.91 |
