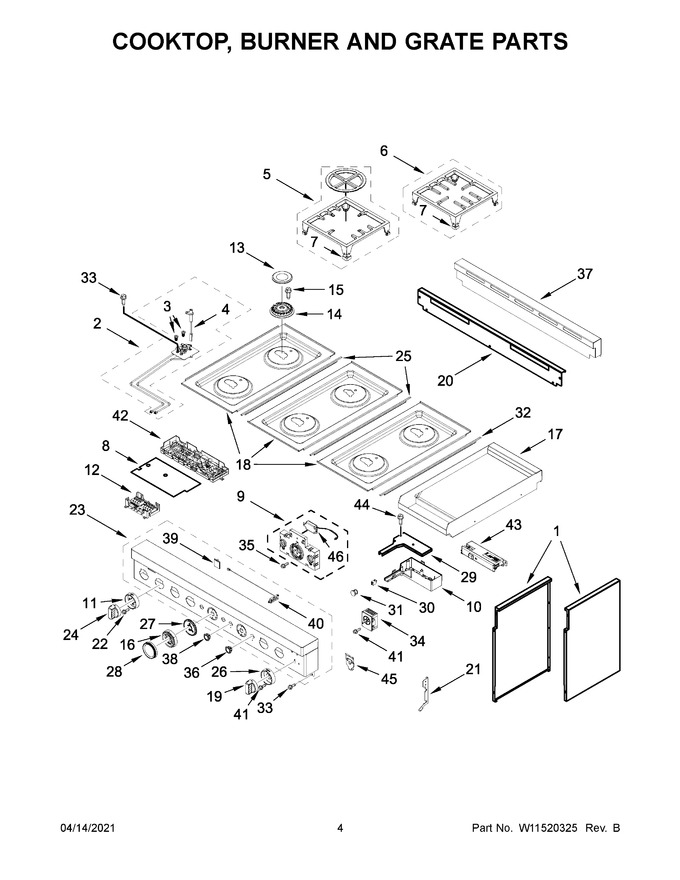

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11321067 | Panel, Cabinet Side (left) (Replaces: W11111429) |
|
$ 439.37 | |||||
| 2 | W11333305 | Assembly, Orifice Holder (left Front) (Replaces: W10892793) |
|
$ 125.39 | |||||
| 3 | W11643164 | Orifice, Main (17.4k) (left Front, Right Front) (Replaces: W10892422) |
|
Immediately | $ 60.97 | ||||
| 4 | W11573760 | Igniter (left Front, Right Front) (Replaces: W11238757) |
|
Immediately | $ 23.48 | ||||
| 5 | W11380124 | Burner, Grate (with Wok Ring) (Replaces: W11291183) |
|
Immediately | $ 200.19 | ||||
| 6 | W11380128 | Burner, Grate (Replaces: W11291179) |
|
Immediately | $ 183.04 | ||||
| 7 | W11550692 | Bumper, Grate (Replaces: W11042504) |
|
Immediately | $ 12.57 | ||||
| 8 | W11320149 | Barrier, Appliance Manager (Replaces: W11281269) |
|
$ 130.57 | |||||
| 9 | W11492304 | User Interface (Replaces: W11436336) |
|
Immediately | $ 399.40 | ||||
| 10 | W11320411 | Cover, Wifi Outer (Replaces: W11205795) |
|
- | |||||
| 11 | W11380146 | Bezel (front Burners) (Replaces: W10881642) |
|
$ 65.07 | |||||
| 12 | W11355250 | Manager, Appliance (expansion) (Replaces: W10871065) |
|
$ 451.62 | |||||
| 13 | W11344538 | Cap, Burner (black (includes 6)) (Replaces: W11121390) |
|
Immediately | $ 141.29 | ||||
| 14 | W11344539 | Spreader, Flame (high) (left Front, Right Front) (Replaces: W10891746) |
|
Immediately | $ 141.16 | ||||
| 15 | W11643628 | Screw (8-18 X 1") (Replaces: W11323261) |
|
$ 14.75 | |||||
| 16 | W11500864 | Knob, Oven Mode (stainless (for 18" Oven)) (Replaces: W11264991) |
|
- | |||||
| 17 | NP | Following Parts Not Illustrated |
|
- | |||||
| 18 | W11344755 | Panel, Cooktop (black (left)) (Replaces: W11038235) |
|
$ 199.76 | |||||
| 19 | W11392643 | Knob, Griddle (stainless) (Replaces: W10912167) |
|
- | |||||
| 20 | W10323252 | Trim, Island Insert |
|
$ 207.83 | |||||
| 21 | W10130760 | Bracket, Moving Console (left) |
|
$ 75.94 | |||||
| 21 | W10130759 | Bracket, Moving Console (right) |
|
$ 75.94 | |||||
| 22 | W11509770 | Screw (Replaces: W11328357) |
|
$ 14.23 | |||||
| 23 | W11728205 | Panel, Control (Replaces: W10877951) |
|
$ 987.63 | |||||
| 24 | W11380561 | Knob, Single (stainless) (Replaces: W10912166) |
|
Immediately | $ 81.20 | ||||
| 25 | W10271524 | Black |
|
$ 212.34 | |||||
| 26 | W11388057 | Bezel, Griddle (Replaces: W10886700) |
|
- | |||||
| 27 | W11548484 | Bezel, Oven (stainless) (Replaces: W10913810) |
|
$ 61.19 | |||||
| 28 | W11429270 | Knob, Oven Temperature (stainless (for 18" Oven)) |
|
- | |||||
| 29 | W11320410 | Cover, Wifi Inner (Replaces: W11205794) |
|
- | |||||
| 30 | W10116114 | Light, Indicator Housing |
|
Immediately | $ 93.57 | ||||
| 31 | W10294500 | Lens, Indicator Light |
|
$ 7.69 | |||||
| 32 | W10291193 | Trim, L-strip |
|
- | |||||
| 33 | 7101P42660 | Screw |
|
- | |||||
| 34 | W11318834 | Control, Griddle (Replaces: W11033497) |
|
$ 356.52 | |||||
| 35 | WP3400814 | Screw (Replaces: 3400814) |
|
$ 4.62 | |||||
| 36 | W11241510 | Button Assembly, Oven Start |
|
Immediately | $ 48.76 | ||||
| 37 | W11516014 | Island Trim (Replaces: W11476244) |
|
$ 443.60 | |||||
| 38 | W11241511 | Button Assembly, Oven Light |
|
Immediately | $ 46.19 | ||||
| 39 | W10896366 | Assembly, Light Pipe |
|
$ 108.38 | |||||
| 40 | W11318855 | Antenna, Wifi (Replaces: W11130078) |
|
$ 228.92 | |||||
| 41 | 7101P30960 | Screw |
|
- | |||||
| 42 | W11406545 | Manager, Appliance (powermax) (Replaces: W11172295) |
|
$ 470.78 | |||||
| 43 | W11234290 | Assembly, Wifi Module (Replaces: W11110768) |
|
$ 179.89 | |||||
| 44 | 7101P62460 | Screw |
|
- | |||||
| 45 | W11318207 | Spring Clip, Range (Replaces: W11036559) |
|
$ 12.88 | |||||
| 46 | W11123146 | Assembly, Speaker (Replaces: W10568405) |
|
$ 80.93 | |||||
| 11A | W11380145 | Bezel (rear Burners) (Replaces: W10883433) |
|
$ 65.07 | |||||
| 14A | W11344742 | Spreader, Flame (low) (left Rear, Center Front, Right Rear) (Replaces: W10891974) |
|
Immediately | $ 134.12 | ||||
| 14B | W11344746 | Spreader, Flame (aux) (center Rear) (Replaces: W10891978) |
|
Immediately | $ 133.20 | ||||
| 15A | W11678580 | Screw (8-18 X 1/2") (Replaces: W11323309) |
|
$ 14.78 | |||||
| 16A | W11548479 | Knob, Oven Mode F(stainless) (Replaces: W11264992) |
|
$ 139.51 | |||||
| 18A | W11344757 | Panel, Cooktop (black (center)) (Replaces: W11038257) |
|
$ 199.76 | |||||
| 18B | W11392645 | Panel, Cooktop (black (right Center)) (Replaces: W11038243) |
|
$ 491.89 | |||||
| 1A | W11320596 | Panel, Cabinet Side (right) (Replaces: W11111428) |
|
$ 450.31 | |||||
| 24A | W11380562 | Knob, Dual (stainless) (Replaces: W10883172) |
|
$ 79.24 | |||||
| 28A | W11548477 | Knob, Oven Temperature (stainless) (Replaces: W11429269) |
|
$ 149.89 | |||||
| 2A | W11384764 | Assembly, Orifice Holder (left Rear) (Replaces: W10892492) |
|
$ 119.91 | |||||
| 2B | W11398670 | Assembly, Orifice Holder (left Center Front) (Replaces: W11159461) |
|
$ 117.04 | |||||
| 2C | W11398674 | Assembly, Orifice Holder (left Center Rear) (Replaces: W10892808) |
|
- | |||||
| 2D | W11319743 | Assembly, Orifice Holder (right Center Front) (Replaces: W10892505) |
|
$ 125.13 | |||||
| 2E | W11398676 | Assembly, Orifice Holder (right Center Rear) (Replaces: W10892446) |
|
$ 123.64 | |||||
| 3A | W11672510 | Orifice, Main (15k) (left Rear, Right Rear, Center Front) (Replaces: W10892419) |
|
Immediately | $ 107.87 | ||||
| 3B | W11661909 | Orifice, Simmer (2.6k) (left Front, Right Front) (Replaces: W10892435) |
|
Immediately | $ 74.14 | ||||
| 3C | W10892438 | Orifice, Simmer (5k) (center Rear) |
|
$ 99.86 | |||||
| 4A | W11114379 | Igniter (left Rear, Right Rear) |
|
Immediately | $ 66.44 | ||||
| 4B | W11628654 | Igniter (center Front, Center Rear) (Replaces: W10892340) |
|
Immediately | $ 54.92 |
