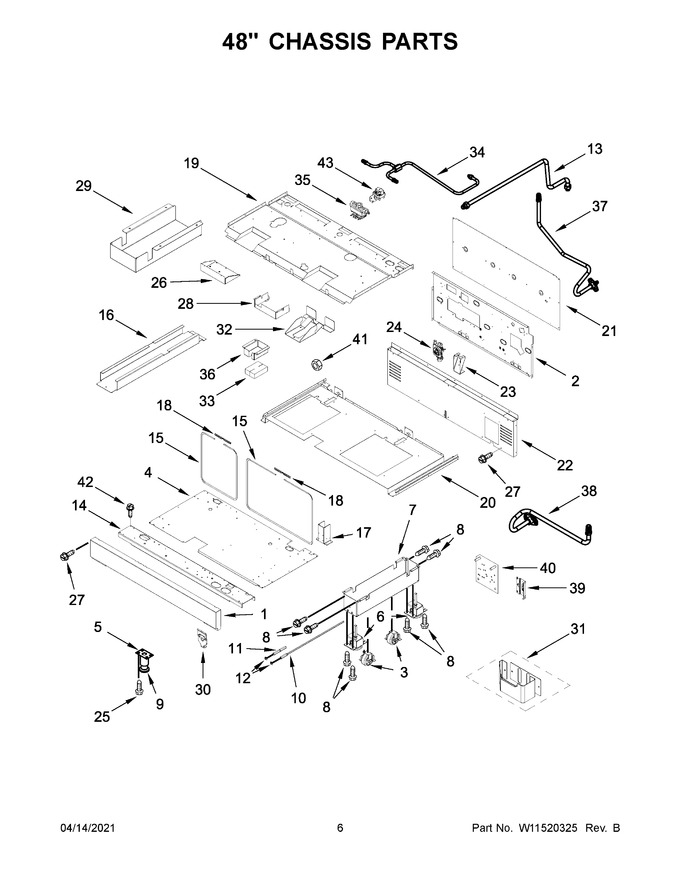

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11734558		Kickplate   (Replaces: W11394811)				$ 505.67
2	W11388050		Back, Chassis   (Replaces: W11324987)		Appelez-nous	-
3	WPW10138054		Assembly, Roller   (Replaces: W10138054)				$ 45.34
4	W11320536		Duct, Bottom (48")   (Replaces: W11110260)		Appelez-nous	-
5	WP9759118		Plate, Mounting   (Replaces: 9759118)				$ 154.94
6	W10859931		Leveler   (Replaces: 9760860)				$ 119.11
7	W10908710		Base, Leveling Leg				$ 145.26
8	WP4449743		Screw   (Replaces: 4449743)				$ 7.55
9	WP9759117		Foot, Dual Fuel   (Replaces: 9759117)				$ 148.66
10	W10115869		Shaft, Long			Immediately	$ 109.36
11	W10115793		Shaft, Short				$ 75.83
12	489504		E-ring				$ 7.40
13	W11364214		Tube, Pressure Regulator   (Replaces: W11181648)				$ 113.12
14	W11369238		Support, Channel		Appelez-nous	-
15	W11675844		Gasket, Oven (30")   (Replaces: W11115328)			Immediately	$ 74.56
16	W11050145		Duct-chassis, Rear		Appelez-nous	-
17	W10115819		Column, Central		Appelez-nous	-
18	W11362015		Retainer, Gasket (9" Long)				$ 158.18
19	W11388055		Top, Chassis   (Replaces: W11324984)		Appelez-nous	-
20	W11320545		Chassis, Bottom   (Replaces: W11040800)		Appelez-nous	-
21	W11320600		Panel, Back Top   (Replaces: W11103335)		Appelez-nous	-
22	W11320599		Panel, Back Bottom   (Replaces: W11034123)		Appelez-nous	-
23	W11320155		Bracket, Pressure Regulator   (Replaces: W11096823)		Appelez-nous	-
24	W11193822		Regulator, Pressure   (Replaces: W10896959)			Immediately	$ 297.57
25	3400518		Screw				$ 13.63
26	W11320147		Drawer, Appliance Manager   (Replaces: W11106341)		Appelez-nous	-
27	7101P426		Screw		Appelez-nous	-
28	W11369237		Cabinet, Appliance Manager				$ 89.38
29	W11368831		Channel, Wire		Appelez-nous	-
30	W11318207		Spring Clip, Range   (Replaces: W11036559)				$ 12.88
31	W11199181		Cover, Foot (left)			Immediately	$ 91.95
32	W11190223		Bracket, Bake Alignment				$ 82.80
33	W11688851		Insulation, Broil Cover   (Replaces: W10311009)		Appelez-nous	-
34	W11355235		Tube, Valve (double)   (Replaces: W11112366)				$ 189.53
35	W11239228		Valve, Dual   (Replaces: W10145680)			Immediately	$ 336.96
36	W10310985		Cover, Broil		Appelez-nous	-
37	W11355244		Tube, Broil   (Replaces: W11109238)				$ 185.59
38	W11355919		Tube, Bake   (Replaces: W11106980)			Immediately	$ 180.63
39	W10145362		Bracket-board, Dsi				$ 81.33
40	WPW10511278		Module, Spark Dsi   (Replaces: W10511278)			Immediately	$ 239.59
41	WP112432		Nut, Hex   (Replaces: 112432)				$ 8.63
42	W11169708		Screw   (Replaces: 3196560)				$ 13.36
43	W10311268		Valve, Single			Immediately	$ 369.61
15A	W11115326		Gasket, Oven (18")			Immediately	$ 201.26
31A	W11199178		Cover, Foot (right)				$ 90.96
