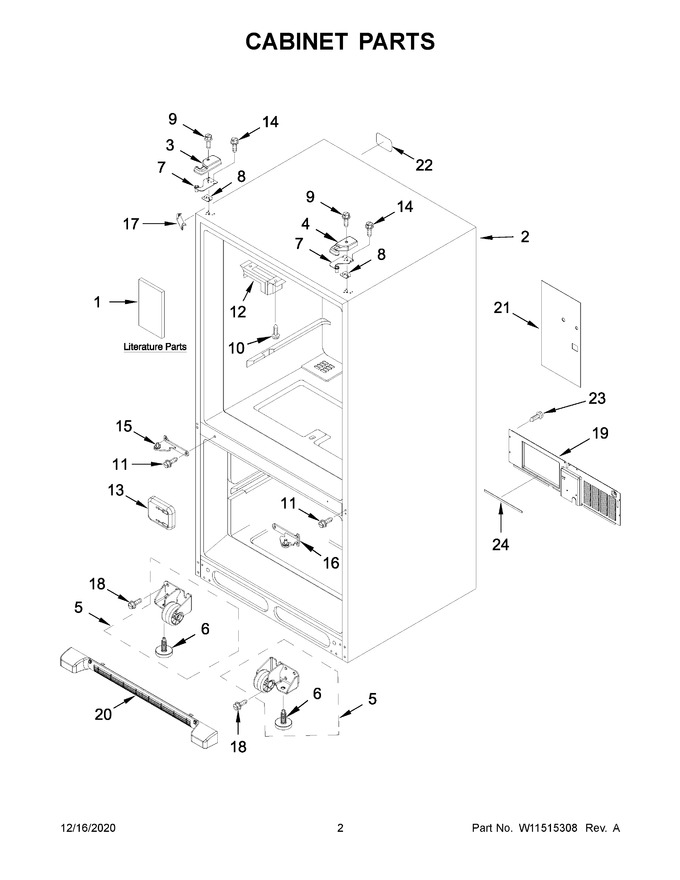

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11296635 | Use And Care Guide |
|
- | |||||
| 2 | NP | Diverter Valve Motor (not Serviced) |
|
- | |||||
| 3 | W10337647 | Cover, Top Hinge (left Hand Black) |
|
Immediately | $ 22.22 | ||||
| 4 | WP67005956 | Cover, Top Hinge (right Hand Black) (Replaces: 12962302B) |
|
$ 21.47 | |||||
| 5 | W11820444 | Assembly, Roller (left Hand) (Replaces: W10515763) |
|
Immediately | $ 35.57 | ||||
| 6 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 7.85 | ||||
| 7 | W11592375 | Hinge, Top (left Hand) (Replaces: 12963204ED) |
|
$ 29.09 | |||||
| 8 | 12999501 | Shim, Top Hinge (left Hand) |
|
$ 94.79 | |||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.19 | ||||
| 10 | W11693756 | Screw (Replaces: 688983) |
|
Immediately | $ 14.06 | ||||
| 11 | W11573362 | Screw (stainless) (Replaces: W10673840) |
|
$ 14.02 | |||||
| 12 | WP67003405 | Plate, Pivot (Replaces: 12698403) |
|
Immediately | $ 7.82 | ||||
| 13 | W11281081 | Cover, Fill Tube (Replaces: W11182229) |
|
- | |||||
| 14 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 7.88 | ||||
| 15 | W10918166 | Hinge, Center (left Hand Black) (Replaces: W10740149) |
|
$ 74.58 | |||||
| 16 | W10918168 | Hinge, Center (right Hand Black) (Replaces: W10740145) |
|
Immediately | $ 74.56 | ||||
| 17 | 67003485 | Cover, Corner (black) (Replaces: 12587703B) |
|
Immediately | $ 21.09 | ||||
| 18 | 67006564 | Screw (Replaces: W10709365) |
|
Immediately | $ 7.69 | ||||
| 19 | WPW10210979 | Cover, Unit (Replaces: W10210979) |
|
$ 196.41 | |||||
| 20 | WPW10534162 | Grille, Toe (black) (Replaces: W10534162) |
|
$ 141.10 | |||||
| 21 | W11684617 | Cover, Water Valve (Replaces: W10217701) |
|
$ 20.34 | |||||
| 22 | W11685757 | Label, Fill Tube (Replaces: 12249902) |
|
$ 7.06 | |||||
| 23 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 7.67 | |||||
| 24 | B5759655 | Gasket |
|
$ 12.41 | |||||
| 1A | W11308954 | Energy Guide |
|
- | |||||
| 1B | W10787418 | Tech Sheet (english) |
|
- | |||||
| 1C | W10787417 | Tech Sheet (french) |
|
- | |||||
| 5A | W11820445 | Assembly, Roller (right Hand) (Replaces: W10515762) |
|
Immediately | $ 35.57 | ||||
| 7A | W11592374 | Hinge, Top (right Hand) (Replaces: 12963205ED) |
|
Immediately | $ 29.02 | ||||
| 8A | 12999502 | Shim, Top Hinge (right Hand) |
|
$ 95.81 |
