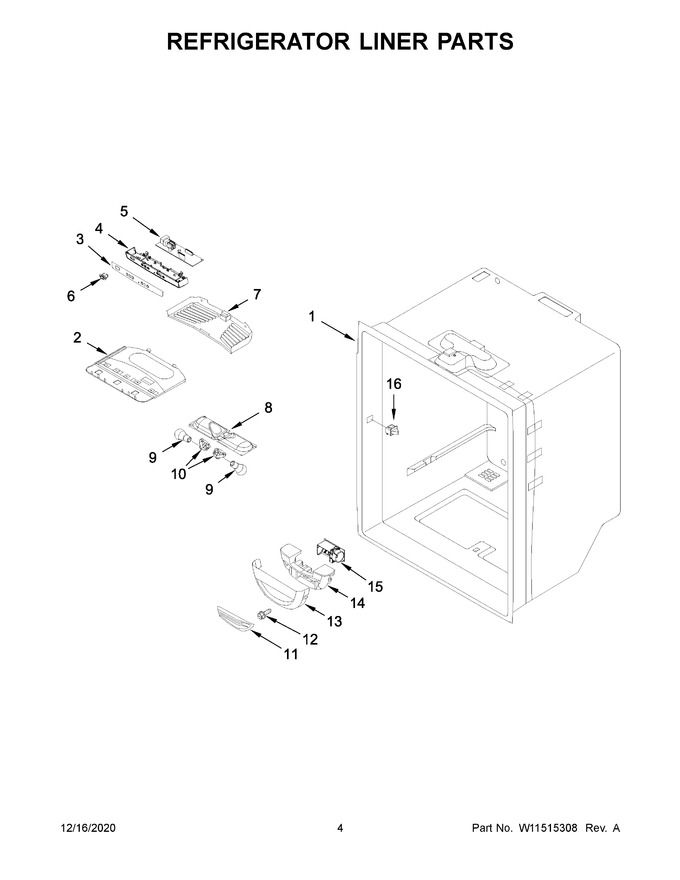

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | NP | Diverter Valve Motor (not Serviced) |
|
- | |||||
| 2 | W10464766 | Module, Light |
|
Immediately | $ 113.70 | ||||
| 3 | W11469742 | Overlay, Control (Replaces: W11357424) |
|
Immediately | $ 77.86 | ||||
| 4 | W11469741 | Module, Control (Replaces: W11319776) |
|
$ 42.64 | |||||
| 5 | WPW10637328 | Control, Electronic (Replaces: W10637328) |
|
Immediately | $ 312.02 | ||||
| 6 | W11469740 | Switch, Energy Saver (Replaces: W11311953) |
|
Immediately | $ 38.34 | ||||
| 7 | W11284721 | Cover, Light (Replaces: W11132917) |
|
$ 106.02 | |||||
| 8 | W10443023 | Housing, Light |
|
Immediately | $ 117.74 | ||||
| 9 | W11107911 | Lamp, Led (Replaces: W11038115) |
|
$ 63.26 | |||||
| 10 | W11447232 | Socket, Light (Replaces: 12570701V) |
|
Immediately | $ 13.87 | ||||
| 11 | 67003900 | Insert, Damper Cover (Replaces: 12806801) |
|
Immediately | $ 8.55 | ||||
| 12 | W11772394 | Screw (Replaces: 12990604) |
|
Immediately | $ 13.22 | ||||
| 13 | WP12806701 | Cover, Damper (Replaces: 12806701) |
|
$ 118.65 | |||||
| 14 | W11750607 | Insulation, Damper (Replaces: 13012402) |
|
$ 50.15 | |||||
| 15 | WPW10594330 | Damper, Control (Replaces: W10594330) |
|
Immediately | $ 129.62 | ||||
| 16 | W11291138 | Switch, Rocker (Replaces: W10847852) |
|
Immediately | $ 36.67 | ||||
| NI | NP | Diverter Valve Motor (not Serviced) |
|
- | |||||
| NI | W11469744 | Harness, Light (includes Thermistor) (Replaces: W11455469) |
|
$ 140.58 |
