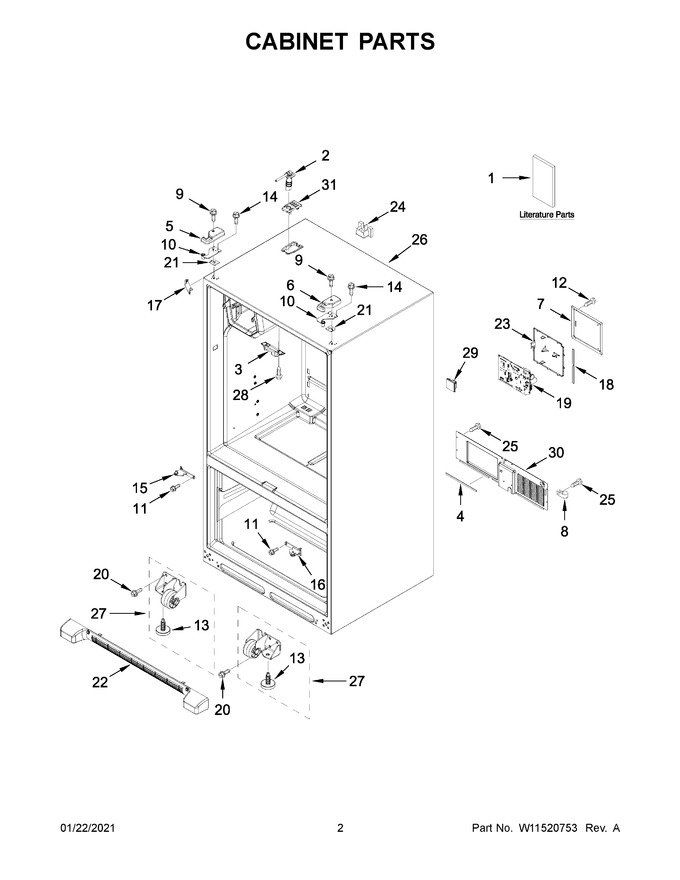

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11050317 | Tech Sheet (english) |
|
- | |||||
| 2 | W11415785 | Tube, Water (Replaces: W11232485) |
|
Immediately | $ 62.39 | ||||
| 3 | WP67003405 | Plate, Pivot (Replaces: 12698403) |
|
Immediately | $ 8.21 | ||||
| 4 | W11250029 | Gasket |
|
- | |||||
| 5 | WPW10337648 | Cover, Hinge (left Hand Grey) (Replaces: W10337648) |
|
$ 23.12 | |||||
| 6 | WPW10191117 | Cover, Hinge (right Hand Grey) (Replaces: 12962302AP) |
|
$ 23.05 | |||||
| 7 | 12961602 | Cover, Control Box |
|
$ 116.19 | |||||
| 8 | W11456069 | Clamp, Tube (Replaces: M0108107) |
|
Immediately | $ 22.40 | ||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.55 | ||||
| 10 | W11592375 | Hinge, Top (left Hand) (Replaces: 12963204ED) |
|
$ 31.92 | |||||
| 11 | W11573362 | Screw (stainless) (Replaces: W10673840) |
|
$ 14.72 | |||||
| 12 | W11686675 | Screw (Replaces: 12990702) |
|
$ 14.27 | |||||
| 13 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 8.24 | ||||
| 14 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 8.43 | ||||
| 15 | W11747628 | Hinge, Center (left Hand Grey) (Replaces: W10740150) |
|
Immediately | $ 64.18 | ||||
| 16 | W11747628 | Hinge, Center (right Hand Grey) (Replaces: W10740146) |
|
Immediately | $ 64.18 | ||||
| 17 | WP12587703AP | Cover, Corner (grey) (Replaces: 12587703AP) |
|
$ 8.07 | |||||
| 18 | W10914798 | Gasket, Control Box |
|
- | |||||
| 19 | W11399844 | Control, Electronic (Replaces: W11176613) |
|
Immediately | $ 366.95 | ||||
| 20 | 67006564 | Screw (Replaces: W10709365) |
|
Immediately | $ 8.15 | ||||
| 21 | 12999501 | Shim, Top Hinge (left Hand) |
|
$ 99.53 | |||||
| 22 | WPW10534155 | Grille, Toe (grey) (Replaces: W10534155) |
|
Immediately | $ 119.56 | ||||
| 23 | W11226688 | Lid, Hv Control Box (Replaces: W10296541) |
|
$ 85.16 | |||||
| 24 | W11686793 | Block, Fill Tube (Replaces: W10658542) |
|
$ 23.57 | |||||
| 25 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 8.05 | |||||
| 26 | NP | Pedestal (refer To Color Variation Parts Page) |
|
- | |||||
| 27 | W11820444 | Assembly, Roller (left Hand) (Replaces: W10515763) |
|
Immediately | $ 37.35 | ||||
| 28 | W11693756 | Screw (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 29 | WPM0104106 | Clip, Cord (Replaces: M0104106) |
|
$ 8.17 | |||||
| 30 | WPW10270394 | Cover, Unit (Replaces: W10270394) |
|
$ 208.73 | |||||
| 31 | W10191141 | Cover, Fill Tube (grey) (Replaces: 12981401AP) |
|
$ 15.06 | |||||
| 10A | W11592374 | Hinge, Top (right Hand) (Replaces: 12963205ED) |
|
Immediately | $ 31.90 | ||||
| 1A | W11050318 | Tech Sheet (french) |
|
- | |||||
| 1B | W11298867 | Use And Care Guide |
|
- | |||||
| 1C | W11308952 | Energy Guide |
|
- | |||||
| 21A | 12999502 | Shim, Top Hinge (right Hand) |
|
$ 100.60 | |||||
| 27A | W11820445 | Assembly, Roller (right Hand) (Replaces: W10515762) |
|
Immediately | $ 37.35 |
