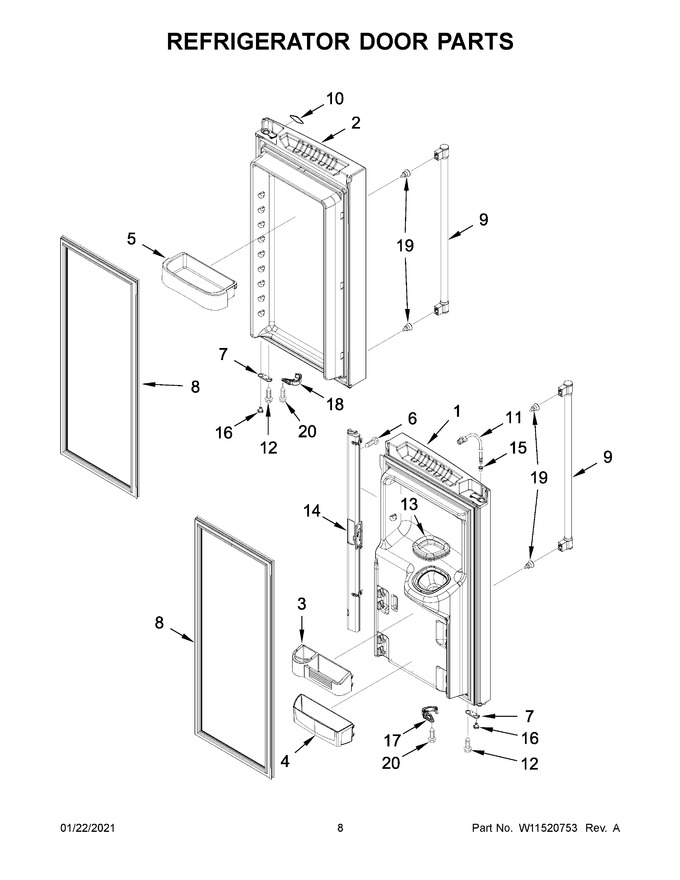

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11435344 | Door, Refrigerator (left Hand Stainless) (Replaces: W11377225) |
|
$ 1,086.04 | |||||
| 2 | W11435343 | Door, Refrigerator (right Hand Stainless) (Replaces: W11377230) |
|
$ 1,069.94 | |||||
| 3 | WPW10323808 | Bucket, Upper (Replaces: W10323808) |
|
Immediately | $ 81.50 | ||||
| 4 | WPW10212139 | Bucket, Small (Replaces: W10212139) |
|
Immediately | $ 78.54 | ||||
| 5 | WPW10224961 | Bucket, Gallon (Replaces: W10224961) |
|
Immediately | $ 95.08 | ||||
| 6 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 7 | W11703060 | Stop, Door (grey) (Replaces: 12968202AP) |
|
$ 15.46 | |||||
| 8 | W10830055 | Gasket, Door (grey) |
|
Immediately | $ 229.10 | ||||
| 9 | W10879677 | Handle, Door (stainless) (Replaces: W10838130) |
|
Immediately | $ 215.42 | ||||
| 10 | WPW10612926 | Badge (Replaces: W10612926) |
|
Immediately | $ 39.60 | ||||
| 11 | W11677733 | Waterline, Door (Replaces: W11431179) |
|
$ 85.79 | |||||
| 12 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.57 | |||||
| 13 | WPW10287601 | Seal, Ice Chute (Replaces: W10287601) |
|
Immediately | $ 32.76 | ||||
| 14 | WP12722815AP | Mullion, Door (grey) (Replaces: 12722815AP) |
|
$ 338.01 | |||||
| 15 | 12996601 | Clip, Bushing |
|
$ 10.05 | |||||
| 16 | WP12028505AP | Closure, Door (grey) (Replaces: 12028505AP) |
|
Immediately | $ 61.46 | ||||
| 17 | W10918008 | Latch, Door Closer (left Hand Grey) (Replaces: W10833741) |
|
$ 17.64 | |||||
| 18 | W10918010 | Latch, Door Closer (right Hand Grey) (Replaces: W10833739) |
|
Immediately | $ 17.64 | ||||
| 19 | W11449276 | Screw (Replaces: W11328753) |
|
Immediately | $ 15.45 | ||||
| 20 | WP67006908 | Screw (Replaces: 12990518) |
|
Immediately | $ 8.78 |
