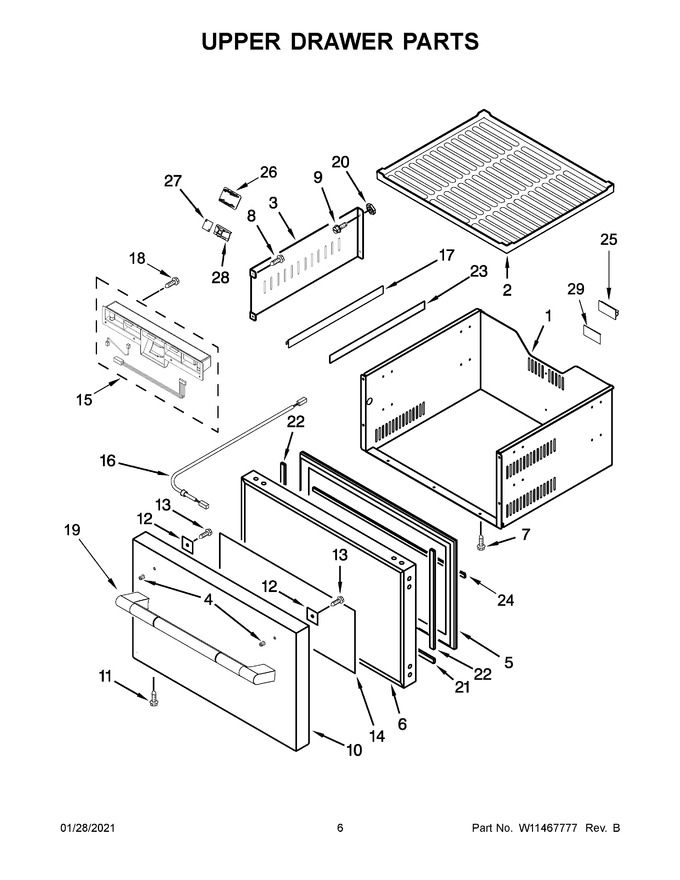

04 - Upper Drawer Parts


05 - Lower Drawer Parts


06 - Unit Parts


07 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11466972		Drawer Box Assembly, Upper		Appelez-nous	-
2	W10622004		Mat, Upper Drawer				$ 361.89
3	W11422834		Drawer Partition		Appelez-nous	-
4	W11179356		Stud, Mounting   (Replaces: W10772902)				$ 16.62
5	WPW10622006		Gasket   (Replaces: W10622006)			Immediately	$ 183.09
6	W11422740		Top Foamed Door Assembly		Appelez-nous	-
7	W10319183		Screw		Appelez-nous	-
8	W10204809		Screw		Appelez-nous	-
9	W10204810		Screw		Appelez-nous	-
10	W11422815		Wrap, Stainless Steel				$ 383.20
11	W10319185		Screw		Appelez-nous	-
12	W11263339		Plate, Door Handle   (Replaces: W10622815)				$ 17.39
13	W10859467		Screw, Handle   (Replaces: W10204866)				$ 80.23
14	W10204867		Wrap Spacer		Appelez-nous	-
15	W11493061		Assembly, Control Display				$ 600.43
16	W10789534		Harness, Display To Indicator			Immediately	$ 150.63
17	W10622013		Support, Lead Wire				$ 28.70
18	W10204808		Screw		Appelez-nous	-
19	W11422798		Handle (rise)		Appelez-nous	-
20	W10204920		Nut		Appelez-nous	-
21	W10204889		Door Gasket, Long		Appelez-nous	-
22	W10204897		Door Gasket, Short		Appelez-nous	-
23	W11442514		Wire Support Tape		Appelez-nous	-
24	W10772909		Cold Air Seal		Appelez-nous	-
25	W10772901		Support, Wire				$ 19.56
26	W10204929		Lamp Cover				$ 89.18
27	W10204930		Led Lamp				$ 347.60
28	W10204931		Lamp Holder				$ 79.66
29	W10721447		Wire Support Tape		Appelez-nous	-
