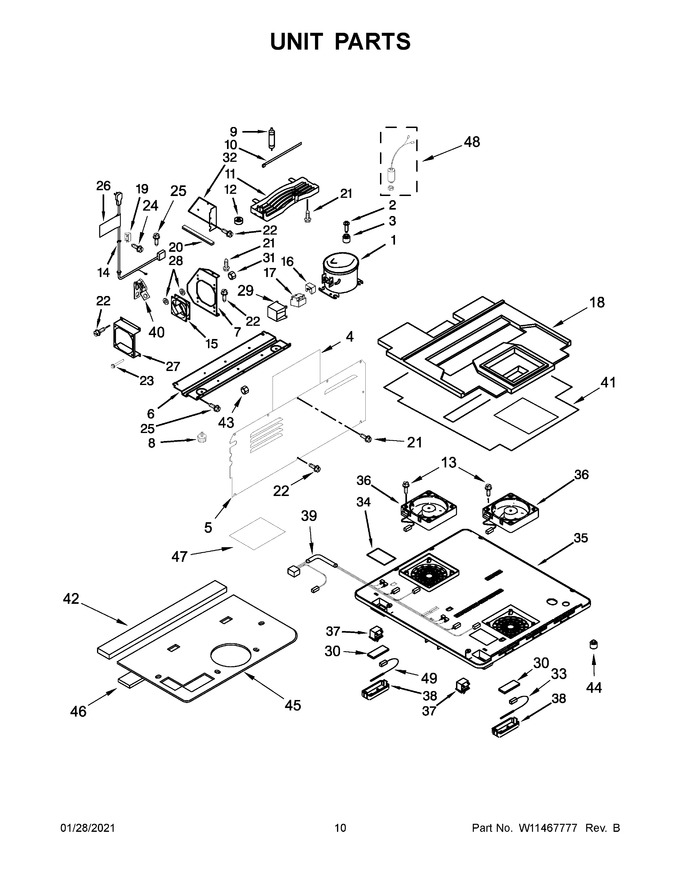

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10772872		Compressor   (Replaces: W10772872)			Immediately	$ 475.21
2	W10772873		Bolt, Compressor   (Replaces: 4344780)		Appelez-nous	-
3	WP4344779		Grommet, Compressor   (Replaces: 4344779)				$ 7.62
4	W10778963		Insulation, Rear Cover		Appelez-nous	-
5	W10788700		Cover, Rear		Appelez-nous	-
6	W11422734		Cabinet Base Plate		Appelez-nous	-
7	W10204674		Air Baffle				$ 114.91
8	W11106296		Leg, Leveling   (Replaces: 4344763)				$ 17.13
9	W10163273		Drier				$ 93.07
10	4344829		Tie, Cable		Appelez-nous	-
11	W11506518		Drain Tray   (Replaces: W10772879)				$ 92.55
12	W10163276		Trap, Drain				$ 81.12
13	W10205061		Screw		Appelez-nous	-
14	WPW10204676		Cord, Power   (Replaces: W10204676)				$ 101.72
15	W10772882		Condenser Dc Motor				$ 312.69
16	W10772884		Overlay Relay				$ 147.64
17	W10287848		Ptc Thermister				$ 155.99
18	W10772919		Insulation, Fan Cover		Appelez-nous	-
19	W10270517		Clamp, Cord				$ 71.56
20	4344907		Trim, Edge		Appelez-nous	-
21	4344825		Screw		Appelez-nous	-
22	4344832		Screw		Appelez-nous	-
23	W11422695		Screw		Appelez-nous	-
24	W10837731		Screw   (Replaces: W10204865)				$ 7.47
25	4344797		Screw		Appelez-nous	-
26	W11444462		Warning Label		Appelez-nous	-
27	W11467187		Fan Cover, Condenser		Appelez-nous	-
28	W10204688		Fan Bushing		Appelez-nous	-
29	W10772885		Cover, Relay		Appelez-nous	-
30	W10204948		Sensor Case Seal		Appelez-nous	-
31	W10772890		Nut		Appelez-nous	-
32	W10239387		Bracket, Defrost Timer		Appelez-nous	-
33	W11238391		Temperature Sensor   (Replaces: W10772916)			Immediately	$ 117.89
34	W10205062		Terminal Protector		Appelez-nous	-
35	W10772915		Cover, Fan				$ 83.16
36	W10854409		Motor & Fan   (Replaces: W10204942)			Immediately	$ 322.47
37	W10721454		Door Switch				$ 37.63
38	W10775535		Sensor Case		Appelez-nous	-
39	W10772918		Harness, Fan Cover   (Replaces: W11467191)				$ 117.48
40	W10281591		Clamp, Cord		Appelez-nous	-
41	W10772920		Plate Cover		Appelez-nous	-
42	W10788704		Seal		Appelez-nous	-
43	W11422694		Spring Washer		Appelez-nous	-
44	W10304006		Bushing, Cover		Appelez-nous	-
45	W11467192		Insulation Combo		Appelez-nous	-
46	W10772922		Seal, Cold Air Stop		Appelez-nous	-
47	W10304187		Seal, Fan Cover		Appelez-nous	-
48	W10772895		Running Capacitor				$ 122.29
49	W10772917		Temperature Sensor				$ 121.49
NI	W10266810		Aluminum Tape			Immediately	$ 69.37
NI	NP		Pedestal (refer To Color Variation Parts Page)		Appelez-nous	-
