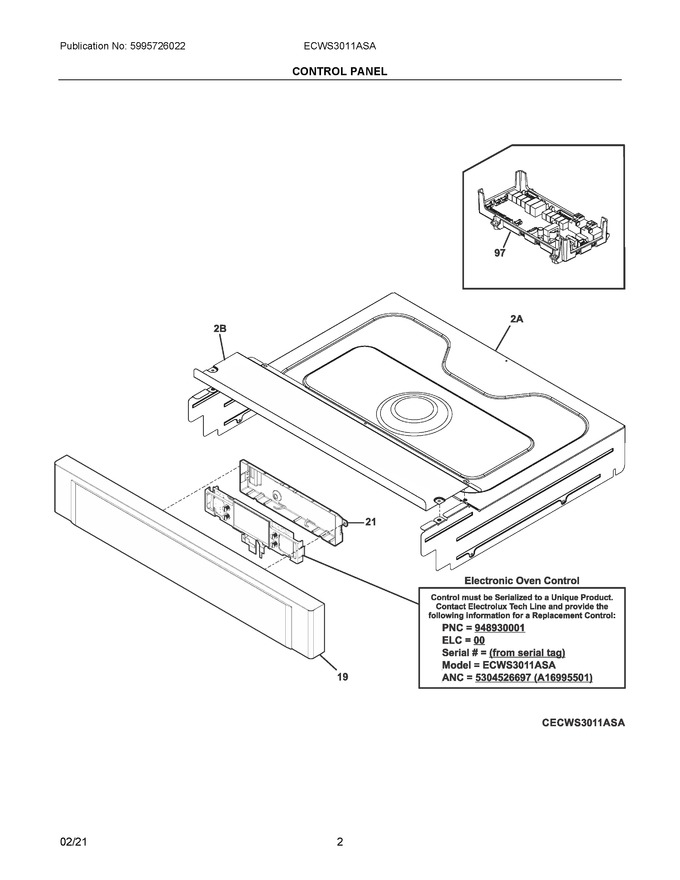

02 - Control Panel
03 - Body
04 - Door
05 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 19 | 5304523595 | Control Panel, Assembly, Glass/steel, Black/stainless |
|
$ 328.85 | |||||
| 21 | 5304523582 | Housing, Controller |
|
Immediately | $ 37.92 | ||||
| 97 | 316472808 | Circuit Board, Assembly, Ovc1, W/housing |
|
$ 489.18 | |||||
| 2A | 5304521623 | Shield, Wire, Top |
|
$ 107.02 | |||||
| 2B | 5304520853 | Cover, Control Access |
|
$ 64.34 | |||||
| NI | 5304526698 | Harness, Wiring, Ovc To, Control Panel |
|
$ 17.69 | |||||
| NI | 5304514831 | Harness, Grounding Wire |
|
$ 12.64 | |||||
| NI | 316021109 | Screw, 8-18 X 0.5, Black (Replaces: 316021110) |
|
Immediately | $ 30.55 | ||||
| NI | 5304514832 | Harness, Wiring, Upper Oven, Hall Effect |
|
$ 57.30 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 30.55 | ||||
| NIA | 5303323129 | Screw, 8 X 0.750 |
|
- |
