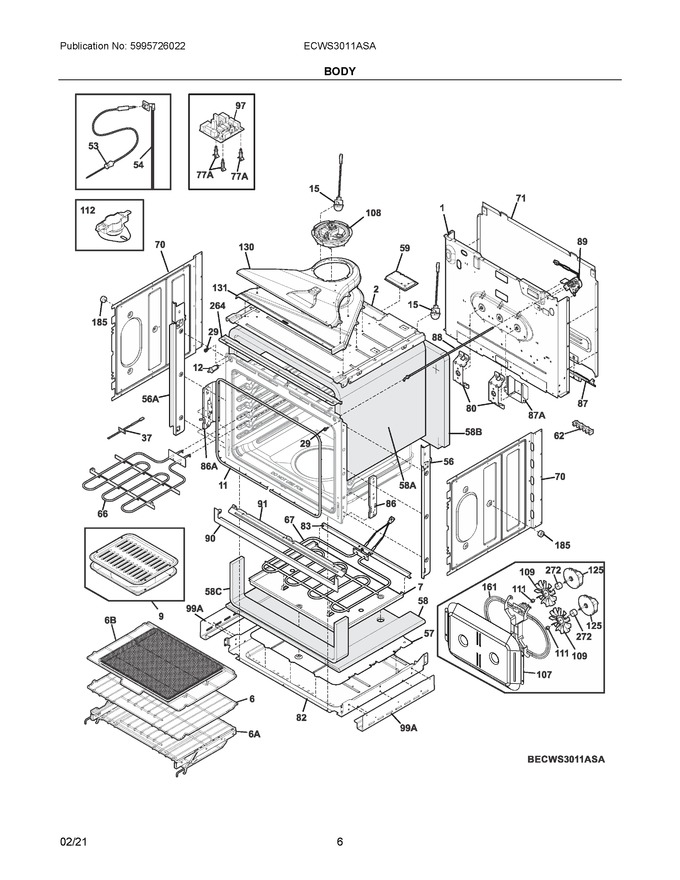

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304525130		Panel, Main Back		Appelez-nous	-
2	808651302		Shield, Insulation, Top		Appelez-nous	-
6	5304525129		Rack, Oven, Nickel, W/handle				$ 114.29
7	5304520858		Box, Bake Element				$ 141.56
9	5304494997		Broil Pan Kit, Pan & Insert, Slate Blue, Optional, Accessory				$ 72.01
11	139036700		Seal, Oven Door			Immediately	$ 122.18
12	808136601		Switch, Light, Door   (Replaces: 318394802)			Immediately	$ 48.93
15	5304528790		Lamp Assembly, Round, Halogen			Immediately	$ 22.84
29	316517600		Bumper, Front, Main				$ 13.39
37	5304504897		Sensor, Oven Temp Probe			Immediately	$ 53.48
53	5304504202		Probe, Meat Temp, Red   (Replaces: 5304514885)			Immediately	$ 117.99
54	139017203		Receptacle Assy, Meat Probe   (Replaces: 5304514886)			Immediately	$ 170.10
56	5304500598		Trim, Side, Black, Lh				$ 81.90
57	5304521752		Sheild, Air Wash, Lower		Appelez-nous	-
58	808816501		Insulation, Bottom		Appelez-nous	-
59	808931401		Vent Box Assy., W/catalyst				$ 147.26
62	5304409888		Terminal Block   (Replaces: 316056000)			Immediately	$ 29.66
66	140123969028		Element, Broil, 6 Pass, 4000w   (Replaces: 5304514924)		Appelez-nous	-
67	5304516286		Element, Hidden Bake, 2200w			Immediately	$ 121.34
70	139000601		Shield, Insulation, Sides, (2)				$ 80.05
71	808650302		Shield, Rear Wall				$ 152.78
80	139021101		Bracket, Support, Chassis/fan				$ 16.54
82	5304522581		Shield, Insulation, Lower				$ 103.95
83	5304520860		Shield, Bake Tray, Rear				$ 26.78
86	808930501		Receptacle, Hinge, Soft Close		Appelez-nous	-
87	5304520557		Bracket, Cable Box		Appelez-nous	-
88	808721601		Rod, Door Latch				$ 59.83
89	5304528925		Motor Assy., Door Latch   (Replaces: 808721803)				$ 130.13
90	5304523579		Trim, Lower Vent, Stainless				$ 93.66
91	5304518870		Divider, Lower Air, Black				$ 91.00
97	5304523590		Pc Board, Relay, Rampup Lighting				$ 228.02
107	5304500627		Cover, Dual Fan, Black, Convection				$ 155.33
108	5304528825		Motor Assembly, Fan			Immediately	$ 198.11
109	318398302		Fan Blade			Immediately	$ 32.34
111	316136600		Nut, Fan Retainer			Immediately	$ 21.26
112	5304538823		Thermostat, Safety, 125c   (Replaces: 318578509)			Immediately	$ 16.36
125	139008504		Motor, Convection Fan, 2 Speed			Immediately	$ 189.52
130	808651606		Duct, Cooling Fan, Upper			Immediately	$ 163.47
131	808651702		Duct, Cool Fan, Lower				$ 128.08
161	5304500622		Element, Convection, Dual, 3400w				$ 181.17
185	318531800		Spacer, Oven Shield, (2)				$ 14.18
264	5304500596		Trim, Vent, Black, Upper				$ 54.34
272	139021700		Tube, Convection Fan				$ 19.69
56A	5304500597		Trim, Side, Black, Rh				$ 85.84
58A	808905502		Insulation, Oven Wrapper		Appelez-nous	-
58B	808905101		Insulation, Oven Back		Appelez-nous	-
58C	807887503		Insulation, Bake Element, Front		Appelez-nous	-
6A	5304525128		Rack Assembly, Gliding, Nickel, W/handle				$ 228.59
6B	WOAIRFRYTRAY		Wo Air Fry Tray Kit			Immediately	$ 118.91
77A	316114100		Spacer				$ 67.73
86A	807418503		Receptacle, Hinge, W/damper, Soft Close				$ 218.14
87A	5304520866		Shield, Terminals, Bake Element		Appelez-nous	-
99A	5304514974		Support, Floor		Appelez-nous	-
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NI	5304506984		Harness Assembly, Conduit, Elbow Connector, & Wiring				$ 166.85
NI	5304523577		Harness, Wiring, Mdl Ads				$ 104.74
NI	807597603		Screw, Self Tapping, 8-18 X 11/32, (4)				$ 10.24
NI	5304470882		Screw, Anti-tip, 8 - 5/8, Black, (2)				$ 14.96
NI	5304523591		Harness, Wiring, Main				$ 192.94
NI	5303289910		Screw, Truss Sqdr, 8a X 1", 62*				$ 6.30
NI	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 15.75
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 30.55
NIA	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.37
NIA	318167300		Clip, Rod				$ 3.15
NIB	316205500		Nut, Hex Flange, 3/8 10-32				$ 12.60
NIB	5303311164		Spring				$ 21.06
NIC	5304436864		Washer, Flat				$ 3.15
