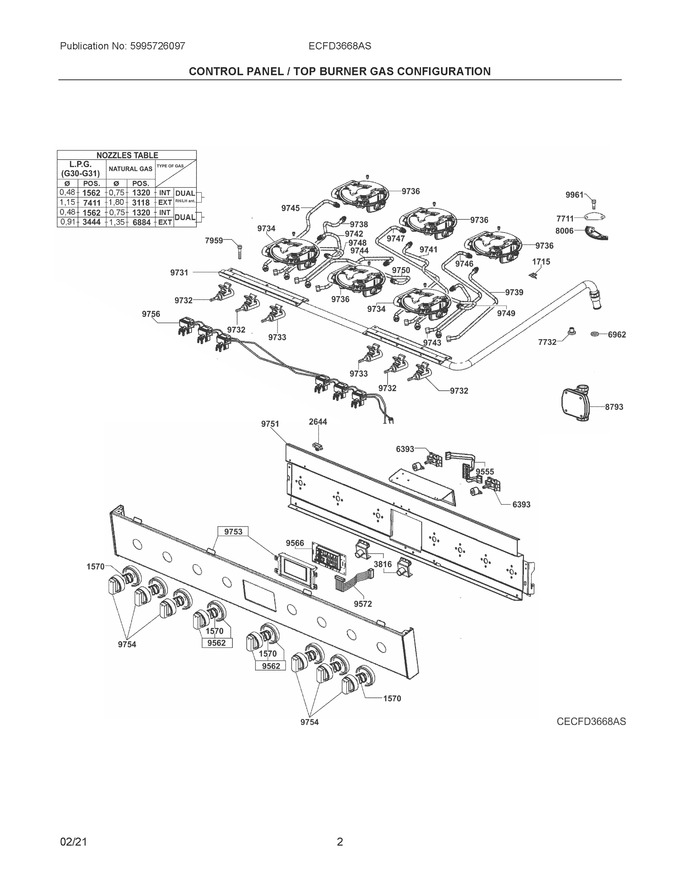

02 - Control Panel / Top Burner Gas Configuration
03 - Body
04 - Main Top
05 - Door / Cooling-venting
06 - Wiring Assembly Diagram
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1320 | 5304527459 | Orifice, Natural Gas, D.0, 75-750btu, Internal, (6), Dual Burner |
|
Immediately | $ 32.96 | ||||
| 1562 | 5304527467 | Orifice, Lp Gas, D.0, 48-750 Btu, Internal, (6), Dual Burner |
|
Immediately | $ 36.60 | ||||
| 1570 | 5304527483 | Spring, Knob, (8) |
|
$ 17.75 | |||||
| 1715 | 5304527485 | Spring Clip, Burner, (6) |
|
$ 16.69 | |||||
| 2644 | 5304527708 | Clamp, Cable, (2) |
|
- | |||||
| 3118 | 5304527435 | Orifice, Natural Gas, D.1, 80-18k Btu, External, (2), Dual Burner |
|
Immediately | $ 32.91 | ||||
| 3444 | 5304527696 | Orifice, Lp Gas, D.0, 91-12k Btu, External, (4), Dual Burner |
|
$ 25.63 | |||||
| 3816 | 5304527472 | Support, Potentiometer, (2) |
|
$ 31.04 | |||||
| 6393 | 5304527476 | Switch, Potentiometer, (2) |
|
$ 125.13 | |||||
| 6884 | 5304527695 | Orifice, Natural Gas, D.1, 35-12k Btu, External, (4), Dual Burner |
|
Immediately | $ 59.55 | ||||
| 6962 | 5304527447 | Seal, Gas, (2) |
|
$ 31.39 | |||||
| 7411 | 5304527438 | Orifice, Lp Gas, D.1, 15-18k Btu, External, (2), Dual Burner |
|
$ 28.76 | |||||
| 7711 | 5304527497 | Plate, Burner, (6) |
|
- | |||||
| 7732 | 5304527461 | Cap, Gas Pipe |
|
$ 12.13 | |||||
| 7959 | 5304527504 | Screw, Burner Valve, (12) |
|
- | |||||
| 8006 | 5304527505 | Gasket, Burner, (6), Auxiliary |
|
- | |||||
| 8793 | 5304527531 | Regulator, Gas Stabilizer |
|
$ 270.68 | |||||
| 9555 | 5304527536 | Harness, Wiring, Potentiometers |
|
$ 209.66 | |||||
| 9562 | 5304527537 | Knob Assembly, Oven Control, (2), W/spring-skirt |
|
$ 209.30 | |||||
| 9566 | 5304527538 | Controller, Electronic Oven |
|
Immediately | $ 485.76 | ||||
| 9572 | 5304532116 | Harness, Wiring, Communication, Oven Controller (Replaces: 5304527539) |
|
$ 118.26 | |||||
| 9731 | 5304531587 | Manifold, Burner Tube (Replaces: 5304527749) |
|
- | |||||
| 9732 | 5304527750 | Valve, Dual Burner, Rh/lh Sides, (4) |
|
$ 220.94 | |||||
| 9733 | 5304527544 | Valve, Dual Burner, Mid Front/back, (2) |
|
$ 210.83 | |||||
| 9734 | 5304527545 | Holder Assembly, Dual Burner, 750/18000 Btu, Rh/lh Front, (2), D.1, 80 + D.0, 75 |
|
$ 191.11 | |||||
| 9736 | 5304527751 | Holder Assembly, Dual Burner, 750/12000 Btu, Rh/mid/lh Rear, & Mid Front, (4), D.1, 35 + D.0, 75 |
|
$ 192.07 | |||||
| 9738 | 5304527752 | Tube, Burner, 750/12k Btu, Lh Rear, Front Connect |
|
- | |||||
| 9739 | 5304527753 | Tube, Burner, 750/12k Btu, Rh Rear, Front Connect |
|
- | |||||
| 9741 | 5304527754 | Tube, Burner, 750/12k Btu, Center Rear, Front Connect |
|
- | |||||
| 9742 | 5304527755 | Tube, Burner, 750/18k Btu, Lh Front, Rear Connect |
|
- | |||||
| 9743 | 5304527756 | Tube, Burner, 750/18k Btu, Rh Front, Rear Connect |
|
- | |||||
| 9744 | 5304527757 | Tube, Burner, 750/12k Btu, Center Front, Rear Connect |
|
- | |||||
| 9745 | 5304527758 | Tube, Burner, 750/12k Btu, Lh Rear, Side Connect |
|
- | |||||
| 9746 | 5304527759 | Tube, Burner, 750/12k Btu, Rh Rear, Side Connect |
|
- | |||||
| 9747 | 5304527760 | Tube, Burner, 750/12k Btu, Center Rear, Side Connect |
|
- | |||||
| 9748 | 5304527761 | Tube, Burner, 750/18k Btu, Lh Front, Side Connect |
|
- | |||||
| 9749 | 5304527762 | Tube, Burner, 750/18k Btu, Rh Front, Side Connect |
|
- | |||||
| 9750 | 5304527763 | Tube, Burner, 750/12k Btu, Center Front, Side Connect |
|
- | |||||
| 9751 | 5304527764 | Support, Control Panel |
|
- | |||||
| 9753 | 5304527765 | Control Panel, Assembly, Stainless, W/cntl Bracket |
|
$ 352.54 | |||||
| 9754 | 5304527549 | Knob Assembly, Top Burner, (6), W/spring-skirt |
|
$ 194.14 | |||||
| 9756 | 5304531616 | Harness Assembly, Burner Ignitor, W/switches (Replaces: 5304527767) |
|
Immediately | $ 163.85 | ||||
| 9961 | 5304527449 | Screw, Burner, (10) |
|
- |
