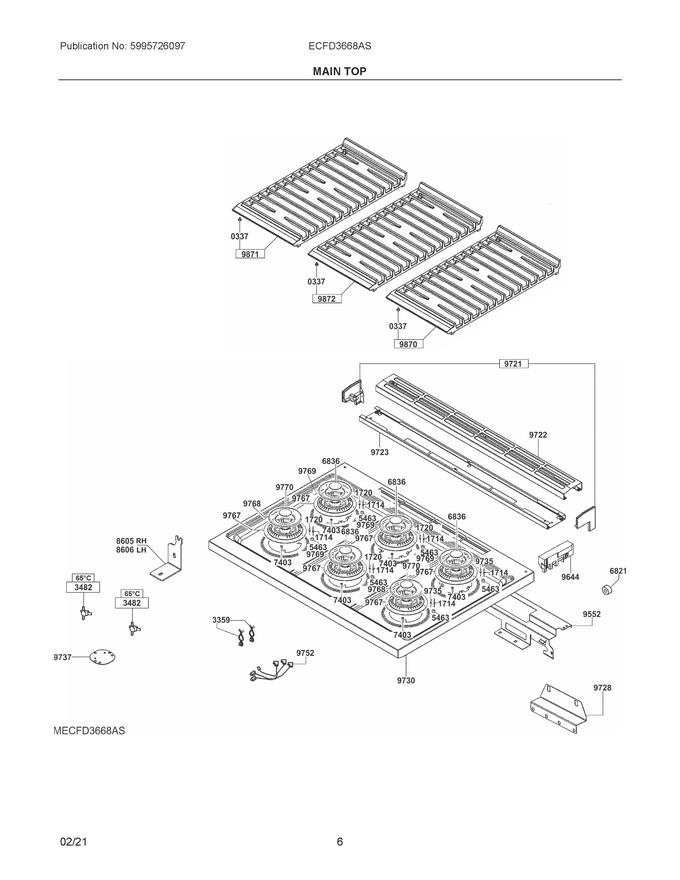

04 - Main Top
05 - Door / Cooling-venting
06 - Wiring Assembly Diagram
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 337 | 5304527462 | Bumper, Rubber, (12), Burner Grate |
|
Immediately | $ 13.65 | ||||
| 1714 | 5304527484 | Thermocouple, +or Mm600, (6) |
|
Immediately | $ 116.13 | ||||
| 1720 | 5304527715 | Ignitor, Spark, +or Mm600, Front/rear, (4), Lh And Center |
|
$ 66.74 | |||||
| 3359 | 5304527470 | Clip, Wiring, Spark Ignitor, (6) |
|
- | |||||
| 3482 | 5304527486 | Thermostat, 65 Deg.c, (2) |
|
$ 86.00 | |||||
| 5463 | 5304527445 | Nut, Thermocouple, (6), Top Burner |
|
$ 21.99 | |||||
| 6821 | 5304527440 | Spacer, Frame, Rear, (2) |
|
$ 23.51 | |||||
| 6836 | 5304527495 | Cap, Dual Burner, 12k, Black, Internal, (4) |
|
Immediately | $ 74.93 | ||||
| 7403 | 5304527460 | Screw, Burner, M4 X 8, (24) |
|
- | |||||
| 8605 | 5304527728 | Bracket, Rh |
|
$ 37.99 | |||||
| 8606 | 5304527729 | Bracket, Lh |
|
$ 37.99 | |||||
| 9552 | 5304527741 | Support, Cook Top, Rear |
|
- | |||||
| 9644 | 5304527443 | Module, Spark Ignitor, (2) |
|
Immediately | $ 184.94 | ||||
| 9721 | 5304527541 | Side Bracket, Kit, Rh And Lh, Rear |
|
$ 228.56 | |||||
| 9722 | 5304527746 | Trim, Cook Top, Stainless, Rear |
|
$ 261.18 | |||||
| 9723 | 5304527747 | Bracket, Rear Trim |
|
- | |||||
| 9728 | 5304527543 | Bracket, Support, (2) |
|
$ 32.96 | |||||
| 9730 | 5304527748 | Maintop, Top Burners, Stainless |
|
$ 561.13 | |||||
| 9735 | 5304527546 | Ignitor, Spark, Rh Front/rear, (2) |
|
$ 60.62 | |||||
| 9737 | 5304527547 | Plate, Cook Top, (2) |
|
- | |||||
| 9752 | 5304527548 | Harness, Wiring, Thermostats |
|
Immediately | $ 103.90 | ||||
| 9767 | 5304527550 | Burner, Support, Cook Top, (6), Flame Spreader |
|
$ 132.51 | |||||
| 9768 | 5304527551 | Burner Cap, Flame Spreader, 18k, Brass, Lh/rh Front, (2) |
|
$ 215.48 | |||||
| 9769 | 5304527552 | Burner Cap, Flame Spreader, Black, Lh/rh Rear And, (4), Center Burners |
|
$ 231.51 | |||||
| 9770 | 5304527553 | Cap, Dual Burner, 18k, Brass, Lh/rh Front, (2) |
|
$ 118.46 | |||||
| 9870 | 5304527768 | Grate, Top Burner, Black, Rh, W/bumpers |
|
$ 464.53 | |||||
| 9871 | 5304527769 | Grate, Top Burner, Black, Lh, W/bumpers |
|
$ 294.25 | |||||
| 9872 | 5304527770 | Grate, Top Burner, Black, Center, W/bumpers |
|
$ 284.39 |
