SELECT A DIAGRAM

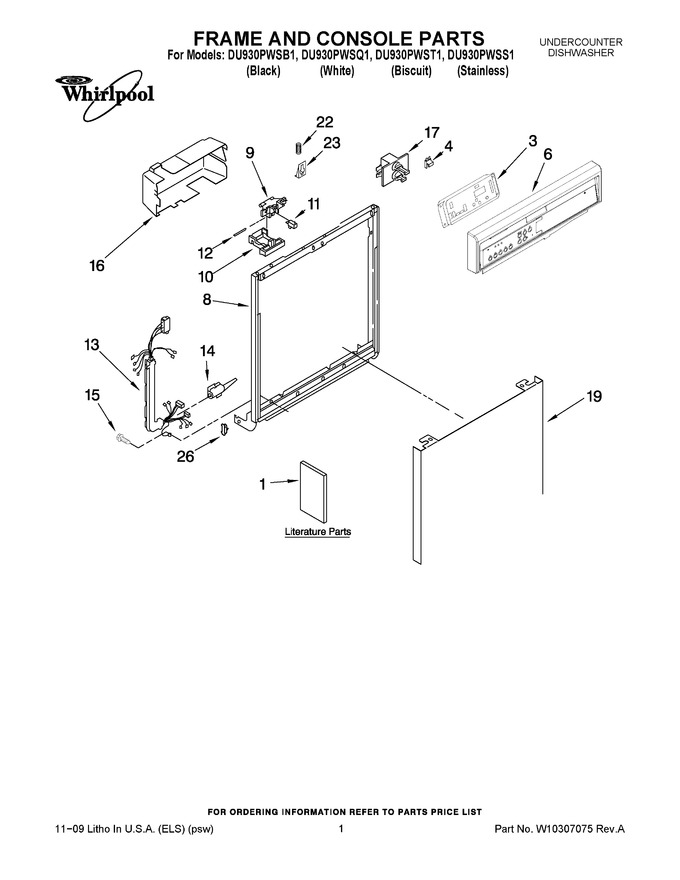

01 - Frame And Console Parts


02 - Inner Door Parts


03 - Tub Assembly Parts


04 - Pump And Motor Parts


05 - Upper Dishrack And Water Feed Parts


06 - Lower Dishrack Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8535436		Instructions, Installation		Appelez-nous	-
1	W10255095		Instructions, Installation (supplement) (locating Your Water Supply)		Appelez-nous	-
1	W10130985		Guide, Use & Care English/french		Appelez-nous	-
1	W10133160		Guide, Use & Care Spanish		Appelez-nous	-
1	8535431		Tech Sheet English/french		Appelez-nous	-
1	W10199531		Guide, Energy		Appelez-nous	-
3	W10039780		Control, Electronic				$ 207.01
4	675813		Fuse, Thermal   (Replaces: 3376359)			Immediately	$ 48.05
6	W10101930		Console (includes Insert & Active Overlay) (black)				$ 198.91
6	W10101950		Console (includes Insert & Active Overlay) (biscuit)				$ 185.33
6	W10101940		Console (includes Insert & Active Overlay) (white)				$ 199.31
8	9743028		Door Frame (black)				$ 62.19
9	WP3380854		Bolt, Latch   (Replaces: 3380854)			Immediately	$ 66.11
10	3375062		Lever, Latch (biscuit)				$ 37.58
10	3369457		Lever, Latch (black)				$ 5.84
10	3372231		Lever, Latch White		Appelez-nous	-
11	3369325		Switch		Appelez-nous	-
12	3368955		Pin, Switch				$ 7.75
13	8573190		Harness And Protector				$ 114.50
14	3376405		Elbow, Harness				$ 14.02
15	WP3400892		Screw   (Replaces: 3400892)				$ 8.24
16	8051304		Cover, Timer		Appelez-nous	-
17	3374501		Motor, Dual				$ 45.99
19	3379376		Panel Front (white)				$ 116.81
19	9743581		Panel, Front (stainless)		Appelez-nous	-
19	3379375		Panel Front (black)				$ 115.07
19	8054178		Panel, Front (biscuit)				$ 111.70
22	675782		Spring, Door Catch   (Replaces: 3379358)				$ 9.90
23	675782		Catch, Door   (Replaces: 3379357)				$ 9.90
26	WP3373234		Bearing, Spring   (Replaces: 3373234)				$ 11.01
