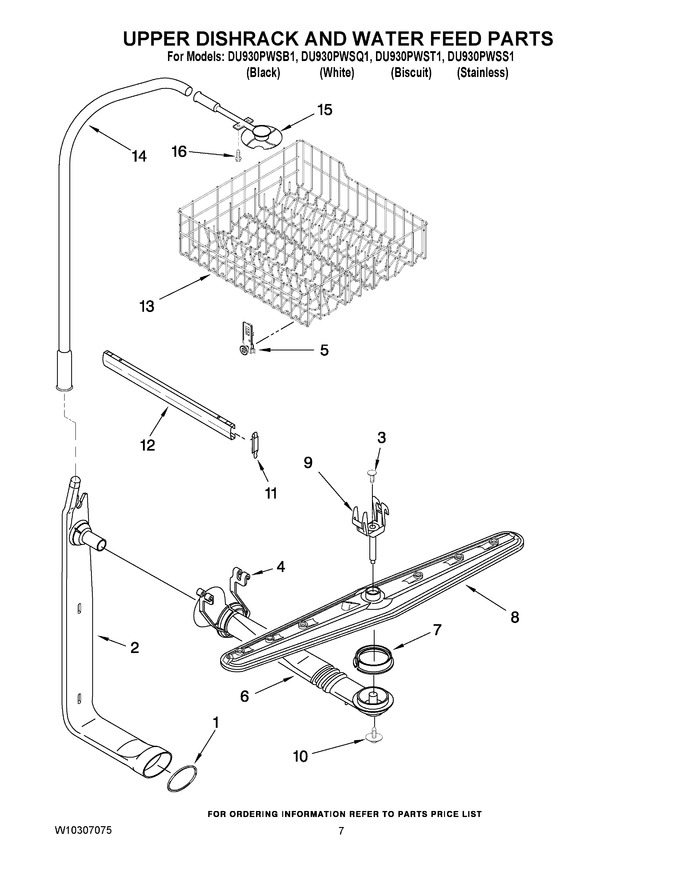

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9742953 | Seal, Tube |
|
$ 18.02 | |||||
| 2 | 661651 | Tube, Water |
|
Immediately | $ 141.84 | ||||
| 3 | WP3400919 | Plug (Replaces: 3400919) |
|
$ 11.20 | |||||
| 4 | WP3385160 | Hanger, Water Inlet (Replaces: 3385160) |
|
$ 38.61 | |||||
| 5 | WPW10204131 | Wheel Assembly (Replaces: 8268852) |
|
Immediately | $ 9.16 | ||||
| 6 | WPW10258149 | Manifold, Sprayarm (Replaces: 8268845) |
|
Immediately | $ 71.76 | ||||
| 7 | WP3376846 | Seal, Sprayarm (Replaces: 3376846) |
|
Immediately | $ 10.12 | ||||
| 8 | WP8519604 | Sprayarm, Upper (Replaces: 8519604) |
|
$ 83.83 | |||||
| 9 | WP3385159 | Mount (Replaces: 3385159) |
|
$ 104.02 | |||||
| 10 | WPW10349488 | Screw (Replaces: 8533889) |
|
$ 8.97 | |||||
| 11 | WP8565925 | Stop Track (Replaces: 8565920) |
|
Immediately | $ 6.87 | ||||
| 12 | WP3385089 | Track, Dishrack (Replaces: 3385089) |
|
Immediately | $ 80.00 | ||||
| 13 | W11752368 | Dishrack, Upper (Replaces: W10164198) |
|
$ 274.61 | |||||
| 14 | 9743958 | Tube, Feed |
|
$ 5.84 | |||||
| 15 | WP3379369 | Wash Assembly W/ Slinger (Replaces: 3379369) |
|
Immediately | $ 66.37 | ||||
| 16 | W10165274 | Screw |
|
$ 13.47 |
