SELECT A DIAGRAM

01 - Cover Sheet

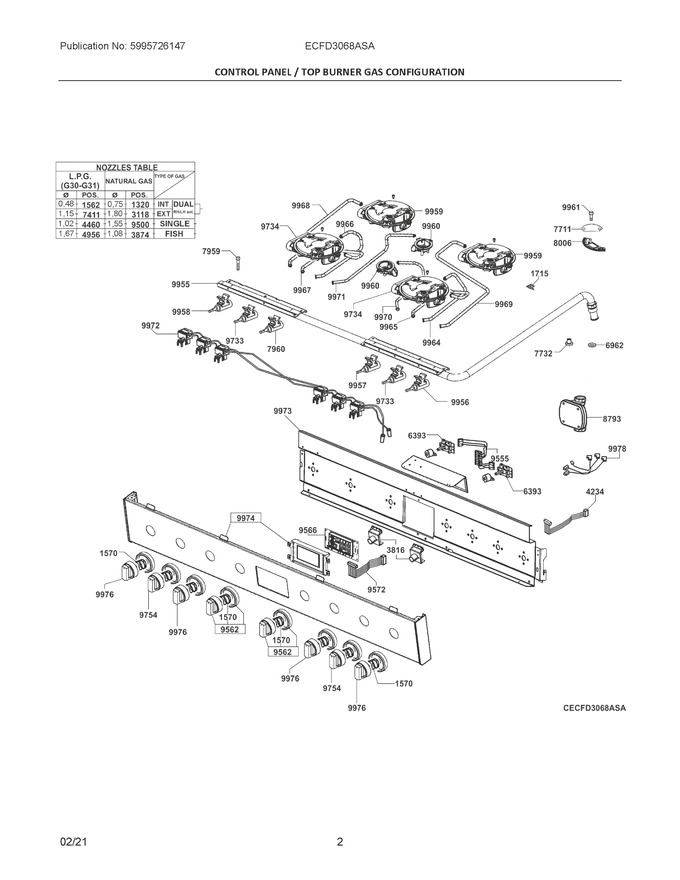

02 - Control Panel / Top Burner Gas Configuration


03 - Body


04 - Main Top


05 - Door / Cooling-venting


06 - Wiring Assembly Diagram


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1320	5304527459		Orifice, Natural Gas, D.0, 75-750btu, Internal, Dual Burner, (2)			Immediately	$ 32.96
1562	5304527467		Orifice, Lp Gas, D.0, 48-750 Btu, Internal, Dual Burner, (2)			Immediately	$ 36.60
1570	5304527483		Spring, Knob, (8)				$ 17.75
1715	5304527485		Spring Clip, Burner, (4)				$ 16.69
3118	5304527435		Orifice, Natural Gas, D.1, 80-18k Btu, External, (2), Dual Burner			Immediately	$ 32.91
3816	5304527472		Support, Potentiometer, (2)				$ 31.04
3874	5304527450		Orifice, Natural Gas, D.1, 08-10k Btu, (2), Single Burner		Appelez-nous	-
4234	5304527487		Harness, Wiring, Communication, Flat		Appelez-nous	-
4460	5304527451		Orifice, Lp Gas, D.1, 02-12k Btu, (2), Single Burner				$ 24.88
4956	5304527441		Orifice, Lp Gas, D.0, 67-10k Btu, (2), Single Burner				$ 45.24
6393	5304527476		Switch, Potentiometer, (2)				$ 125.13
6962	5304527447		Seal, Gas, (2)				$ 31.39
7411	5304527438		Orifice, Lp Gas, D.1, 15-18k Btu, External, (2), Dual Burner				$ 28.76
7711	5304527497		Plate, Burner, (4)		Appelez-nous	-
7732	5304527461		Cap, Gas Pipe				$ 12.13
7959	5304527504		Screw, Burner Valve, (12)		Appelez-nous	-
7960	5304527477		Valve, Single Burner, Middle Rear				$ 165.17
8006	5304527505		Gasket, Burner, Auxiliary, (4)		Appelez-nous	-
8793	5304527531		Regulator, Gas Stabilizer				$ 270.68
9500	5304527439		Orifice, Natural Gas, D.1, 55-12k Btu, (2), Single Burner		Appelez-nous	-
9555	5304527536		Harness, Wiring, Potentiometers				$ 209.66
9562	5304527537		Knob Assembly, Oven Control, (2), W/spring-skirt				$ 209.30
9566	5304527538		Controller, Electronic Oven			Immediately	$ 485.76
9572	5304532116		Harness, Wiring, Communication, Oven Controller   (Replaces: 5304527539)				$ 118.26
9733	5304527544		Valve, Dual Burner, (2), Lh/rh Front				$ 210.83
9734	5304527545		Holder Assembly, Dual Burner, 750/18000 Btu, Rh/lh Front, (2), D.1, 80 + D.0, 75				$ 191.11
9754	5304527549		Knob Assembly, Dual Burner, W/spring-skirt, (2)				$ 194.14
9955	5304527583		Manifold, Burner Tube		Appelez-nous	-
9956	5304527584		Valve, Single Burner, Rh Rear				$ 171.19
9957	5304527585		Valve, Single Burner, Center Front				$ 155.92
9958	5304527586		Valve, Single Burner, Lh Rear		Appelez-nous	-
9959	5304527587		Holder Assembly, Single Burner, 12k Btu, Rh/lh Rear, (2), D.1, 55				$ 175.23
9960	5304527588		Holder Assembly, Single Burner, 10k Btu, Center, (2), D.1, 08		Appelez-nous	-
9961	5304527449		Screw, Burner, (8)		Appelez-nous	-
9964	5304527592		Tube, Burner, 750/18k Btu, Rh Front, Rear Connect		Appelez-nous	-
9965	5304527593		Tube, Burner, 750/18k Btu, Rh Front, Side Connect		Appelez-nous	-
9966	5304527594		Tube, Burner, 750/18k Btu, Lh Front, Rear Connect		Appelez-nous	-
9967	5304527595		Tube, Burner, 750/18k Btu, Lh Front, Side Connect		Appelez-nous	-
9968	5304527596		Tube, Single Burner, 12k Btu, Lh Rear		Appelez-nous	-
9969	5304527597		Tube, Single Burner, 12k Btu, Rh Rear		Appelez-nous	-
9970	5304527598		Tube, Single Burner, 10k Btu, Center Front		Appelez-nous	-
9971	5304527599		Tube, Single Burner, 10k Btu, Center Rear		Appelez-nous	-
9972	5304527600		Harness Assembly, Burner Ignitor, W/switches				$ 169.12
9973	5304527601		Support, Control Panel		Appelez-nous	-
9974	5304527602		Control Panel, Assembly, Stainless, W/cntl Bracket			Immediately	$ 348.70
9976	5304527603		Knob Assembly, Single Burner, (4), W/spring-skirt				$ 194.14
9978	5304527605		Harness, Wiring, Burner Ignition				$ 65.22

    View Diagram in Separate Window       Print Part List
