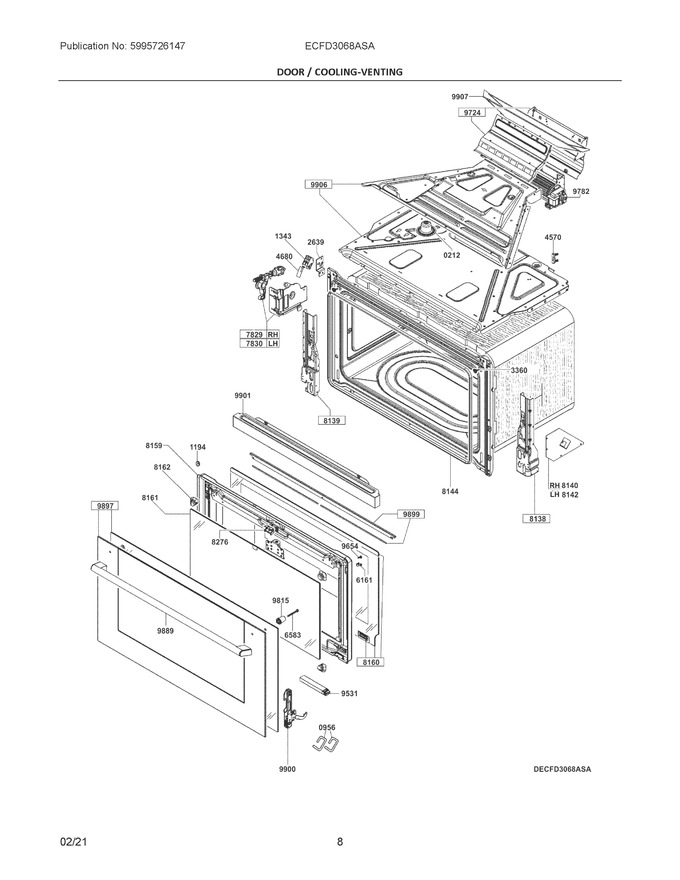

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
212	5304527455		Chimney, Oven Catalyst		Appelez-nous	-
956	5304527463		Hook, Door Hinge, Oven, (2)		Appelez-nous	-
1194	5304527442		Washer, Door, (2)		Appelez-nous	-
1343	5304527456		Switch, Micro, Door, 16a, 220v				$ 79.13
2639	5304527469		Bracket, Microswitch, Door		Appelez-nous	-
3360	5304527471		Bumper, Door, (2)		Appelez-nous	-
4570	5304527488		Heater, Ceramic, 60 Ohm, 50w			Immediately	$ 178.93
4680	5304527473		Lever, Microswitch				$ 17.44
6161	5304527446		Spring, Pivot Fixing, Door, (4)		Appelez-nous	-
6583	5304527452		Screw, Tsc Zinc, M5 X 45, (2), Door Handle		Appelez-nous	-
7829	5304527499		Shock Absorber, Assembly, Door-rh, W/bracket				$ 205.54
7830	5304527500		Shock Absorber, Assembly, Door-lh, W/bracket				$ 205.54
8138	5304527507		Bracket, Column, Rh Front		Appelez-nous	-
8139	5304527508		Bracket, Column, Lh Front		Appelez-nous	-
8140	5304527509		Reinforcement, Column, Rh		Appelez-nous	-
8142	5304527510		Reinforcement, Column, Lh		Appelez-nous	-
8144	5304527511		Gasket, Oven Door				$ 194.98
8159	5304527514		Frame, Inner Door				$ 208.55
8160	5304527515		Door Glass, Assembly, Internal				$ 251.02
8161	5304527516		Glass, Door, Middle				$ 224.07
8162	5304527517		Grommet, Stopper, Middle Glass, (4)		Appelez-nous	-
8276	5304527464		Catch, Door Latch, Inner		Appelez-nous	-
9531	5304527534		Reinforcement, Door, (2)		Appelez-nous	-
9654	5304527448		Bumper, Rubber, (5)		Appelez-nous	-
9724	5304527542		Support, Assembly, Cooling Motor				$ 114.52
9782	5304527479		Blower, Motor, Cooling Fan			Immediately	$ 292.22
9815	5304527554		Spacer, Door Handle, Inner, (2)		Appelez-nous	-
9889	5304527559		Handle, Oven Door, Stainless		Appelez-nous	-
9897	5304527558		Door Assembly, Glass/steel, Black/stainless, Outer				$ 666.84
9899	5304527560		Trim Assembly, Door, Upper		Appelez-nous	-
9900	5304527561		Hinge, Oven Door, (2)		Appelez-nous	-
9901	5304527562		Toe Plate, Oven Front, Lower				$ 199.31
9906	5304527566		Air Duct, Assembly, Cooling Fan		Appelez-nous	-
9907	5304527567		Extension, Air Duct		Appelez-nous	-
