01 - Cover Sheet


02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer And Broiler Parts


07 - Optional Parts

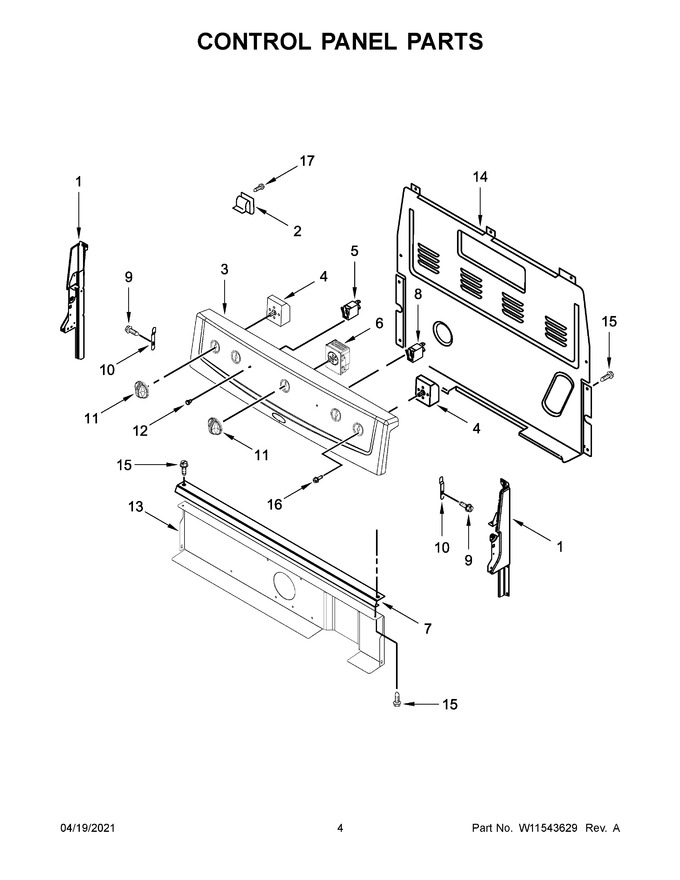

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219365		Endcap (white (left))   (Replaces: W11130371)				$ 42.45
2	WP8273564		Clip, Rear Upper Cover   (Replaces: 8273564)				$ 12.66
3	W11263359		Panel, Backguard White   (Replaces: W11134308)		Appelez-nous	-
4	WP3149400		Switch, Infinite (orange) (right Front)   (Replaces: 3148954)			Immediately	$ 90.51
5	WP8523265		Light, Indicator (125v)   (Replaces: 8523265)			Immediately	$ 86.31
6	WP9762215		Control, Electric   (Replaces: 9762215)			Immediately	$ 365.17
7	W10525121		Bracket, Console Mounting				$ 98.85
8	WP8523266		Indicator, Light (250v)   (Replaces: 8523266)				$ 117.50
9	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.55
10	3196200		Clip, Spring				$ 10.45
11	W11188750		Knob, Control (white)   (Replaces: W10844800)				$ 21.54
12	WP3196068		Lens, Indicator   (Replaces: 3196068)			Immediately	$ 6.26
13	W10134247		Shield, Heat			Immediately	$ 358.82
14	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 219.04
15	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
16	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.55
17	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
1A	W11219370		Endcap (white (right))   (Replaces: W11130378)				$ 60.83
4A	WP3148952		Switch, Infinite (yellow) (right Front And Left Rear)   (Replaces: 3148952)			Immediately	$ 69.51
