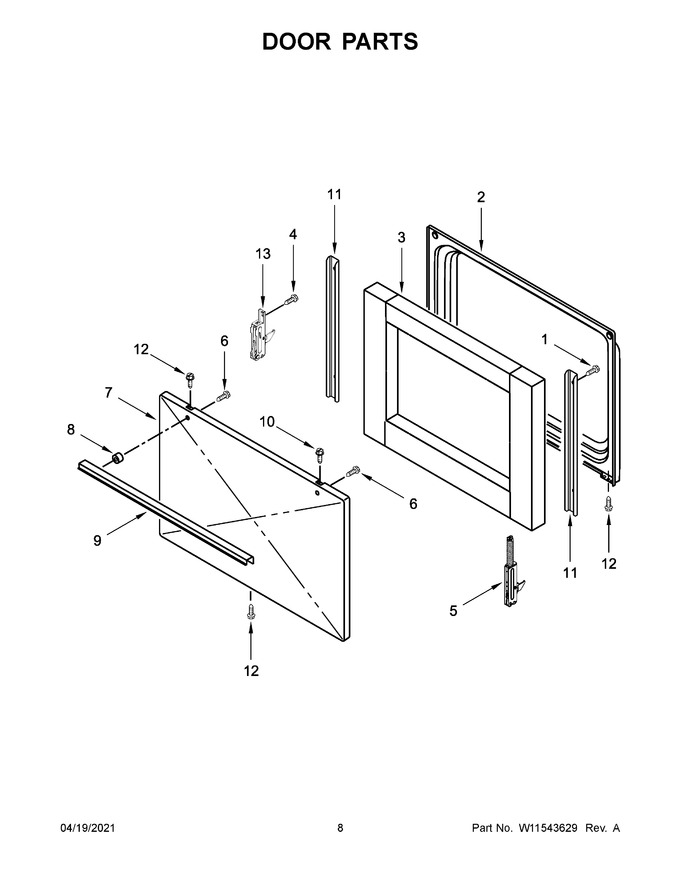

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer And Broiler Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.74 | ||||
| 2 | 9761342 | Liner, Door |
|
- | |||||
| 3 | WPW10278991 | Insulation, Door Strip (Replaces: W10278991) |
|
Immediately | $ 101.37 | ||||
| 4 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| 5 | WPW10358157 | Hinge, Door (active) (Replaces: W10358157) |
|
$ 89.96 | |||||
| 6 | WPW10317886 | Screw (Replaces: W10317886) |
|
Immediately | $ 8.20 | ||||
| 7 | W10903447 | Panel, Steel (white) (Replaces: W10844587) |
|
$ 254.71 | |||||
| 8 | 3823F01745 | Spacer, Handle |
|
- | |||||
| 9 | W10817434 | Handle, Oven Door (white) (Replaces: W10323588) |
|
Immediately | $ 234.82 | ||||
| 10 | 3196558 | Screw, Top (white) |
|
- | |||||
| 11 | W11699790 | Retainer, Insulation (Replaces: 9761504) |
|
- | |||||
| 12 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 13 | WPW10299227 | Hinge, Door (passive) (Replaces: W10299227) |
|
Immediately | $ 70.74 |
