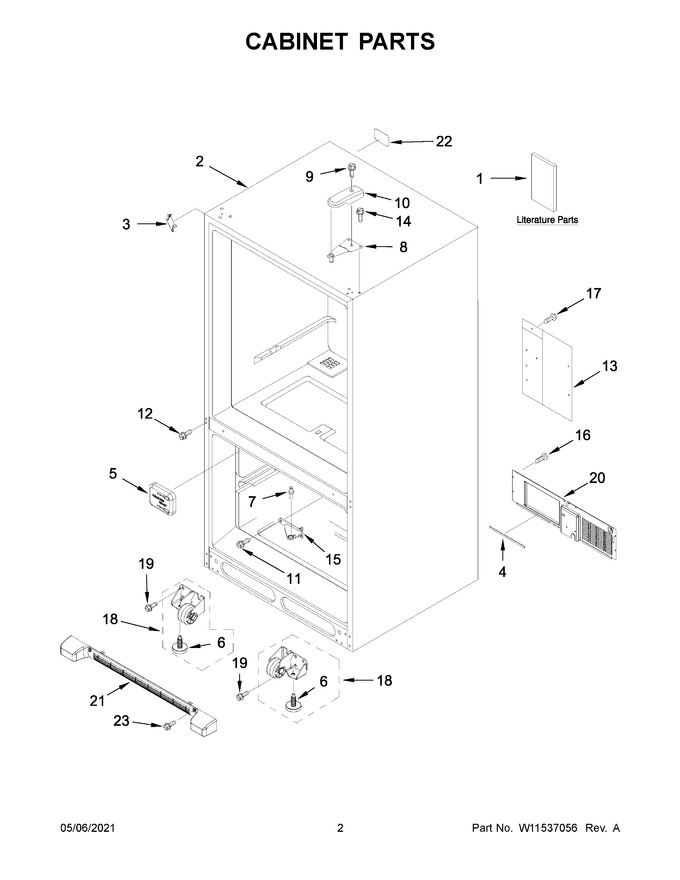

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11479841 | Owner's Manual |
|
- | |||||
| 2 | NP | Cabinet (not A Servicable Part) |
|
- | |||||
| 3 | 12587703W | Cover, Corner (white) |
|
$ 21.81 | |||||
| 4 | B5759655 | Gasket |
|
$ 12.41 | |||||
| 5 | W11533743 | Cover. Fill Tube (Replaces: W11328747) |
|
- | |||||
| 6 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 7.85 | ||||
| 7 | WP67006642 | Pin, Center Hinge (Replaces: 10351006) |
|
$ 7.93 | |||||
| 8 | WP12566606ED | Hinge, Top (Replaces: 12566606ED) |
|
Immediately | $ 44.89 | ||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.19 | ||||
| 10 | 67001014 | Cover, Hinge (white) (Replaces: 12477601W) |
|
$ 21.28 | |||||
| 11 | W11573362 | Screw (stainless) (Replaces: W10673840) |
|
$ 14.02 | |||||
| 12 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.00 | |||||
| 13 | W11684617 | Cover, Water Valve (Replaces: W10217701) |
|
$ 20.34 | |||||
| 14 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 7.88 | ||||
| 15 | W11689473 | Hinge, Center (white) (Replaces: 12607103WD) |
|
$ 66.47 | |||||
| 16 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 7.67 | |||||
| 17 | WP489128 | Screw (Replaces: 12991604) |
|
$ 10.88 | |||||
| 18 | W11820444 | Assembly, Roller (left Hand) (Replaces: W10515763) |
|
Immediately | $ 35.57 | ||||
| 19 | 67006564 | Screw (Replaces: W10709365) |
|
Immediately | $ 7.69 | ||||
| 20 | W10210978 | Cover, Unit |
|
$ 192.17 | |||||
| 21 | WPW10534166 | Assembly, Grille (white) (Replaces: W10534166) |
|
Immediately | $ 76.61 | ||||
| 22 | W11685757 | Label, Fill Tube (Replaces: 12249902) |
|
$ 7.06 | |||||
| 23 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.00 | |||||
| 18A | W11820445 | Assembly, Roller (right Hand) (Replaces: W10515762) |
|
Immediately | $ 35.57 | ||||
| 1A | W11306936 | Energy Guide |
|
- | |||||
| 1B | W11312474 | Tech Sheet |
|
- |
