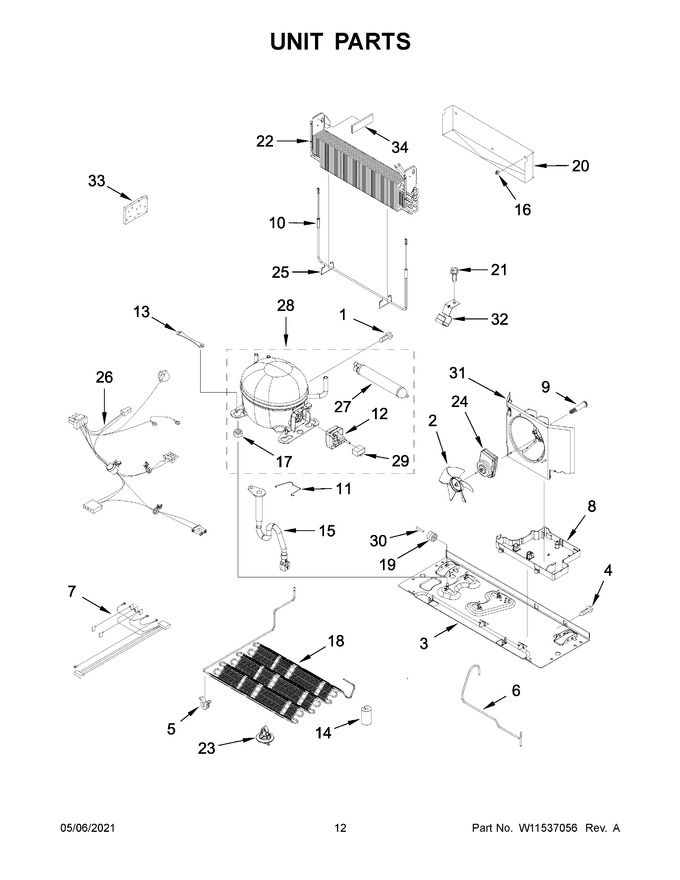

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12992301 | Screw |
|
$ 7.32 | |||||
| 2 | WP12825803 | Blade, Fan (Replaces: 12825803) |
|
Immediately | $ 75.12 | ||||
| 3 | W10480107 | Basepan |
|
$ 147.50 | |||||
| 4 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 5 | WPW10137529 | Grommet, Condenser (Replaces: W10137529) |
|
$ 8.76 | |||||
| 6 | W11566599 | Tube, Discharge (Replaces: W11372725) |
|
$ 69.24 | |||||
| 7 | W11524653 | Harness, Evaporator (includes Defrost Thermostat) (Replaces: W11305539) |
|
Immediately | $ 70.92 | ||||
| 8 | WPW10655367 | Pan, Drain (Replaces: W10655367) |
|
Immediately | $ 85.17 | ||||
| 9 | W10829281 | Screw (Replaces: W10622701) |
|
$ 13.28 | |||||
| 10 | W11533746 | Heater, Evaporator (Replaces: W11287563) |
|
Immediately | $ 138.47 | ||||
| 11 | W11524474 | Strap, Bale (Replaces: W11379613) |
|
- | |||||
| 12 | W11524472 | Device, Start (Replaces: W11359985) |
|
Immediately | $ 32.45 | ||||
| 13 | W10236396 | Strap, Compressor |
|
Immediately | $ 20.81 | ||||
| 14 | W10852725 | Grommet, Condenser (Replaces: 2319835) |
|
$ 8.09 | |||||
| 15 | W10619951 | Extension, Drain (Replaces: W10622098) |
|
Immediately | $ 42.39 | ||||
| 16 | 10623002 | Clip, Evaporator |
|
$ 12.11 | |||||
| 17 | WPW10169124 | Grommet (Replaces: 10835903) |
|
Immediately | $ 7.55 | ||||
| 18 | W11353139 | Condenser (also Order The Following Lokring Parts) |
|
$ 213.66 | |||||
| 19 | 12477102 | Roller |
|
Immediately | $ 7.38 | ||||
| 20 | W11337775 | Tray, Drip |
|
Immediately | $ 99.07 | ||||
| 21 | 12992101 | Screw |
|
- | |||||
| 22 | W11598430 | Evaporator (also Order The Following Lokring Parts) (Replaces: W11337421) |
|
$ 331.94 | |||||
| 23 | W10815863 | Clip, Condenser |
|
Immediately | $ 40.66 | ||||
| 24 | W11613295 | Motor, Condenser Fan (Replaces: W11373924) |
|
Immediately | $ 143.68 | ||||
| 25 | W11380964 | Clip, Heater |
|
$ 18.53 | |||||
| 26 | W11741475 | Harness, Unit (includes Power Cord) (Replaces: W11433678) |
|
Immediately | $ 121.28 | ||||
| 27 | W11109499 | Drier (also Order The Following Lokring Parts) (Replaces: W11353156) |
|
Immediately | $ 39.12 | ||||
| 28 | W11547313 | Compressor (also Order The Following Lokring Parts) (Replaces: W11332031) |
|
Immediately | $ 517.03 | ||||
| 29 | WPW10350564 | Capacitor (Replaces: W10350564) |
|
Immediately | $ 99.49 | ||||
| 30 | 67006434 | Axle, Roller (Replaces: 12477202) |
|
Immediately | $ 7.90 | ||||
| 31 | W11556315 | Shroud, Condenser Fan (Replaces: W10189184) |
|
$ 83.64 | |||||
| 32 | W10281329 | Clip, Drier |
|
$ 13.73 | |||||
| 33 | W11553819 | Insulation, Sound Deadening (Replaces: 2169104) |
|
Immediately | $ 14.77 | ||||
| 34 | W11451451 | Gasket, Foam (Replaces: W11244122) |
|
$ 13.03 | |||||
| 18A | W11506623 | 5 Nk Ms 00 (discharge Tube To Condenser) |
|
Immediately | $ 22.00 | ||||
| 18B | W11504432 | 6/5 Nr Ms 00 (heat Loop To Condenser) |
|
Immediately | $ 25.88 | ||||
| 22A | W11504423 | 8/2 Nr Al 00 (capillary Tube To Evaporator) |
|
Immediately | $ 29.57 | ||||
| 22B | W11504415 | 8.5/8 Nr Ms 00 (suction Line To Evaporator) |
|
Immediately | $ 25.89 | ||||
| 27A | W11504445 | 5/4 Nr Ms 00 (heat Loop To Drier) |
|
Immediately | $ 28.92 | ||||
| 27B | W11504447 | 5/1.8 Nr Ms 00 (capillary Tube To Drier) |
|
Immediately | $ 43.90 | ||||
| 28A | W11504416 | 8.5/6 Nr Ms 00 (suction Tube To Compressor) |
|
Immediately | $ 27.51 | ||||
| 28B | W11504431 | 7/5 Nr Ms 00 (discharge Tube To Compressor) |
|
Immediately | $ 27.13 | ||||
| 28C | W11506621 | 6 Nk Ms 00 (charging Tube To Compressor) |
|
Immediately | $ 22.00 | ||||
| 28D | W11506635 | Tube, Charging (1/4" W/ Schrader Valve) |
|
Immediately | $ 37.03 | ||||
| NI | NP | Cabinet (not A Servicable Part) |
|
- |
