01 - Cover Sheet

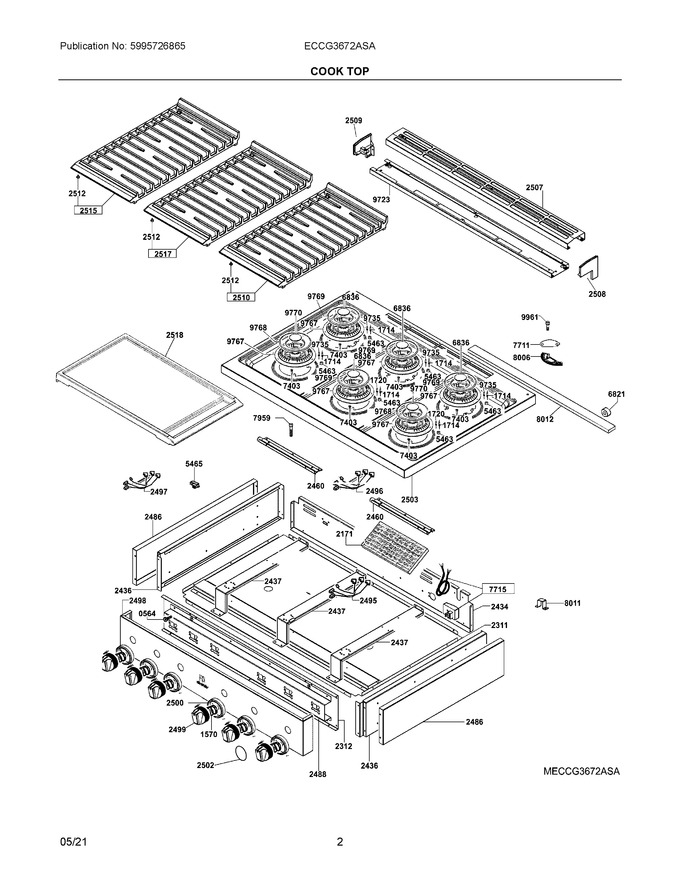

02 - Cook Top
03 - Burner
04 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 564 | 5304529223 | Screw, Bracket, (10), Control Panel |
|
- | |||||
| 1570 | 5304527483 | Spring, Knob, (6) |
|
$ 17.75 | |||||
| 1714 | 5304527484 | Thermocouple, +or Mm600, (6) |
|
Immediately | $ 116.13 | ||||
| 1720 | 5304527715 | Ignitor, Spark, +or Mm600, Rh And Center, Front, (2) |
|
$ 66.74 | |||||
| 2171 | 5304529222 | Insulation Panel, Junction Block |
|
- | |||||
| 2311 | 5304529232 | Box, Burner |
|
- | |||||
| 2312 | 5304529233 | Panel, Support, Control Panel |
|
- | |||||
| 2434 | 5304529234 | Panel, Rear |
|
- | |||||
| 2436 | 5304529235 | Panel, Support, Side, (2) |
|
- | |||||
| 2437 | 5304529236 | Support, Burners, (3) |
|
- | |||||
| 2460 | 5304529241 | Bracket, Support, (2) |
|
- | |||||
| 2486 | 5304529254 | Panel, Side, Outer, (2) |
|
- | |||||
| 2488 | 5304529255 | Bracket, Control Panel, Support |
|
- | |||||
| 2495 | 5304529258 | Harness, Wiring |
|
- | |||||
| 2496 | 5304529259 | Harness, Wiring, Knobs |
|
- | |||||
| 2497 | 5304529260 | Harness, Wiring |
|
- | |||||
| 2498 | 5304529261 | Control Panel, Stainless |
|
- | |||||
| 2499 | 5304529262 | Knob Assembly, (6) |
|
- | |||||
| 2500 | 5304529263 | Trim Ring, Knob, (6) |
|
- | |||||
| 2502 | 5304529264 | Gasket, Knob, (6) |
|
- | |||||
| 2503 | 5304529265 | Main Top, Assembly, Stainless |
|
- | |||||
| 2507 | 5304529266 | Trim, Main Top, Stainless, Rear |
|
- | |||||
| 2508 | 5304529267 | End Cap, Rear Trim, Rh |
|
- | |||||
| 2509 | 5304529268 | End Cap, Rear Trim, Lh |
|
- | |||||
| 2510 | 5304529269 | Grate, Burner, Black, Rh, W/bumpers |
|
- | |||||
| 2512 | 5304529270 | Bumper, Burner Grate, (12) |
|
- | |||||
| 2515 | 5304529271 | Grate, Burner, Black, Lh, W/bumpers |
|
- | |||||
| 2517 | 5304529272 | Grate, Burner, Black, Center, W/bumpers |
|
$ 296.52 | |||||
| 2518 | 5304529273 | Griddle |
|
- | |||||
| 5463 | 5304527445 | Nut, Thermocouple, Top Burner, (6) |
|
$ 21.99 | |||||
| 5465 | 5304529224 | Clamp, Harness, (10) |
|
- | |||||
| 6821 | 5304527440 | Spacer, Frame, Rear, (2) |
|
$ 23.51 | |||||
| 6836 | 5304527495 | Cap, Dual Burner, 12k, Black, Internal, (4) |
|
Immediately | $ 74.93 | ||||
| 7403 | 5304527460 | Screw, Burner, M4 X 8, (48) |
|
- | |||||
| 7711 | 5304527497 | Plate, Burner, (6) |
|
- | |||||
| 7715 | 5304529228 | Cable Assembly, Feeder |
|
- | |||||
| 7959 | 5304527504 | Screw, Burner Valve, (12) |
|
- | |||||
| 8006 | 5304527505 | Gasket, Burner, Auxiliary, (6) |
|
- | |||||
| 8011 | 5304529229 | Bracket, Assembly, Top Mounting |
|
- | |||||
| 8012 | 5304529230 | Panel, Protection |
|
- | |||||
| 9723 | 5304527747 | Bracket, Rear Trim |
|
- | |||||
| 9735 | 5304527546 | Ignitor, Spark, (4) |
|
$ 60.62 | |||||
| 9767 | 5304527550 | Burner, Support, Cook Top, Flame Spreader, (6) |
|
$ 132.51 | |||||
| 9768 | 5304527551 | Burner Cap, Flame Spreader, 18k, Brass, Lh/rh Front, (2) |
|
$ 215.48 | |||||
| 9769 | 5304527552 | Burner Cap, Flame Spreader, Black, (4) |
|
$ 231.51 | |||||
| 9770 | 5304527553 | Cap, Dual Burner, 18k, Brass, Lh/rh Front, (2) |
|
$ 118.46 | |||||
| 9961 | 5304527449 | Screw, Burner, (12) |
|
- |
