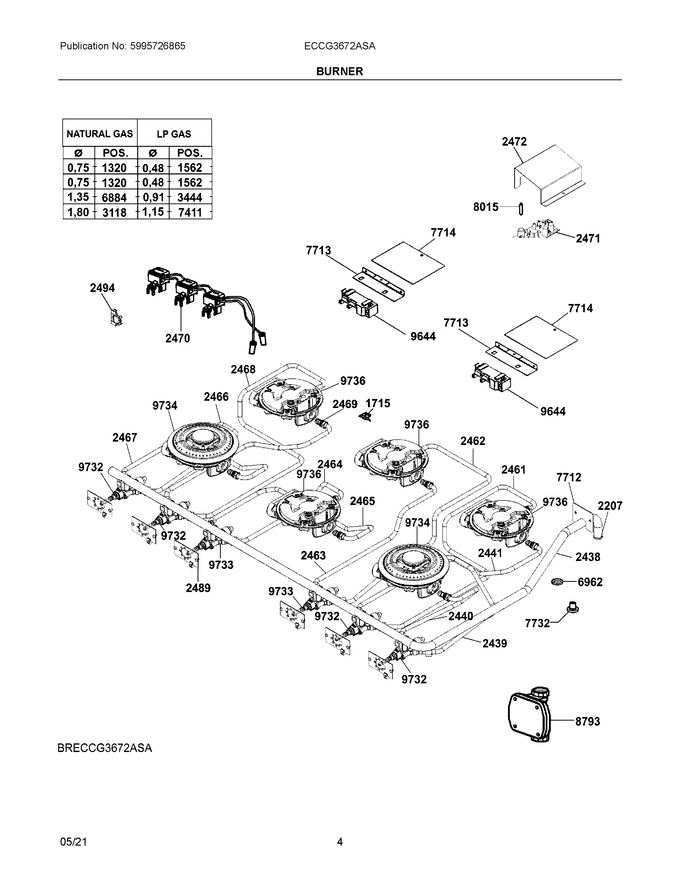

03 - Burner


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1320	5304527459		Orifice, Natural Gas, D.0, 75-750btu, Internal, Dual Burner, (6)			Immediately	$ 32.96
1562	5304527467		Orifice, Lp Gas, D.0, 48-750 Btu, Internal, Dual Burner, (6)			Immediately	$ 36.60
1715	5304527485		Spring Clip, Burner, (6)				$ 16.69
2207	5304529231		Connector, Manifold Tube		Appelez-nous	-
2438	5304529237		Manifold, Tube, Burners		Appelez-nous	-
2439	5304529238		Tube, Dual Burner, Rh Front, Rear Connect		Appelez-nous	-
2440	5304529239		Tube, Dual Burner, Rh Front, Side Connect		Appelez-nous	-
2441	5304529240		Tube, Dual Burner, Rh Rear, Side Connect		Appelez-nous	-
2461	5304529242		Tube, Dual Burner, Rh Rear, Rear Connect		Appelez-nous	-
2462	5304529243		Tube, Dual Burner, Center Rear, Rear Connect		Appelez-nous	-
2463	5304529244		Tube, Dual Burner, Center Rear, Side Connect		Appelez-nous	-
2464	5304529245		Tube, Dual Burner, Center Front, Rear Connect		Appelez-nous	-
2465	5304529246		Tube, Dual Burner, Center Front, Side Connect		Appelez-nous	-
2466	5304529247		Tube, Dual Burner, Lh Front, Rear Connect		Appelez-nous	-
2467	5304529248		Tube, Dual Burner, Lh Front, Side Connect		Appelez-nous	-
2468	5304529249		Tube, Dual Burner, Lh Rear, Rear Connect		Appelez-nous	-
2469	5304529250		Tube, Dual Burner, Lh Rear, Side Connect		Appelez-nous	-
2470	5304529251		Harness Assembly, Micro Switches, Ignition				$ 180.18
2471	5304529252		Pc Board, Control				$ 219.96
2472	5304529253		Cover, Pc Board		Appelez-nous	-
2489	5304529256		Pc Board, Knob Led, (6)		Appelez-nous	-
2494	5304529257		Harness Assembly, Micro Switches, Led Boards		Appelez-nous	-
3118	5304527435		Orifice, Natural Gas, D.1, 80-18k Btu, External, (2), Dual Burner			Immediately	$ 32.91
3444	5304527696		Orifice, Lp Gas, D.0, 91-12k Btu, External, (4), Dual Burner				$ 25.63
6884	5304527695		Orifice, Natural Gas, D.1, 35-12k Btu, External, (4), Dual Burner			Immediately	$ 59.55
6962	5304527447		Seal, Gas, (2)				$ 31.39
7411	5304527438		Orifice, Lp Gas, D.1, 15-18k Btu, External, (2), Dual Burner				$ 28.76
7712	5304529225		Plate, Ramp, Manifold		Appelez-nous	-
7713	5304529226		Bracket, Ignitor Module, (2)		Appelez-nous	-
7714	5304529227		Support, Ignitor Module, (2)		Appelez-nous	-
7732	5304527461		Cap, Gas Pipe				$ 12.13
8015	5304527772		Spacer, Electronic Unit, (4)		Appelez-nous	-
8793	5304527531		Regulator, Gas Stabilizer				$ 270.68
9644	5304527443		Module, Spark Ignitor, (2)			Immediately	$ 184.94
9732	5304527750		Valve, Dual Burner, (4)				$ 220.94
9733	5304527544		Valve, Dual Burner, (2)				$ 210.83
9734	5304527545		Holder Assembly, Dual Burner, 750/18000 Btu, (2), D.1, 80 + D.0, 75				$ 191.11
9736	5304527751		Holder Assembly, Dual Burner, 750/12000 Btu, (4), D.1, 35 + D.0, 75				$ 192.07
