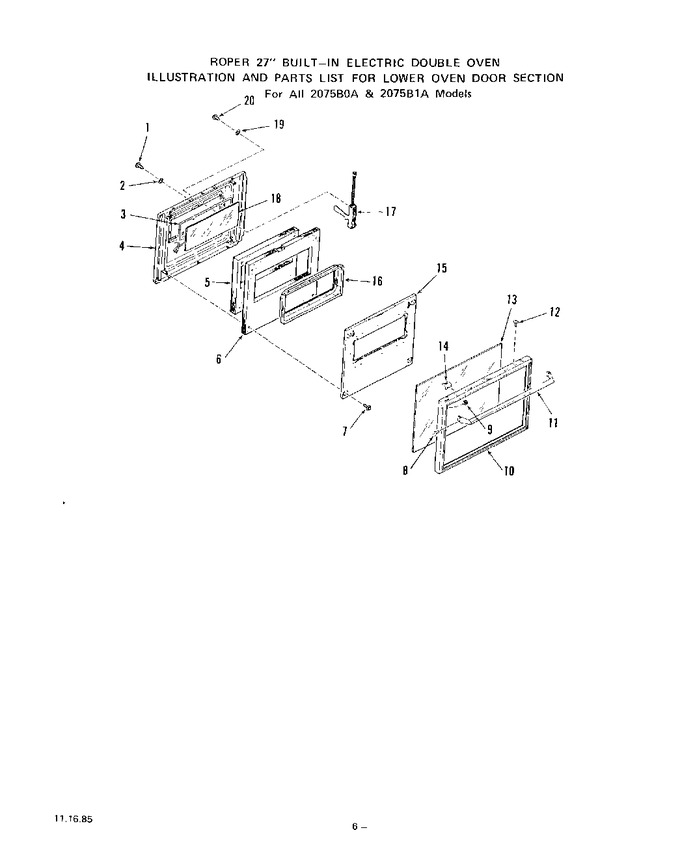

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	105799		Screw 10abx1		Appelez-nous	-
2	21067		Washer		Appelez-nous	-
3	303156		Seal-oven Door		Appelez-nous	-
4	331684		2075b1a Models		Appelez-nous	-
4	325913		2075b0a Models		Appelez-nous	-
5	311872		Insulation-oven Door Plug		Appelez-nous	-
6	311874		Insulation-door Lining		Appelez-nous	-
7	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 8.63
8	319447		Screw 8-32 X 1/2``		Appelez-nous	-
9	239764		Keps Nut 8-32		Appelez-nous	-
10	325836		Frame-oven Door		Appelez-nous	-
11	325837		Handle		Appelez-nous	-
12	327621		Screw 6-20x3/8``		Appelez-nous	-
13	311738		Outer Door Glass		Appelez-nous	-
14	299596		Retainer-oven Door Glass (6 Req)		Appelez-nous	-
15	323676		Retainer-oven Door Insulation		Appelez-nous	-
16	323672		Retainer-oven Door Glass		Appelez-nous	-
17	331029		Hinge-oven Door (rt. Or Lt.)		Appelez-nous	-
18	296214		Inner Door Glass		Appelez-nous	-
19	106462		Washer		Appelez-nous	-
20	239113		Screw 10-32x3/8``		Appelez-nous	-
