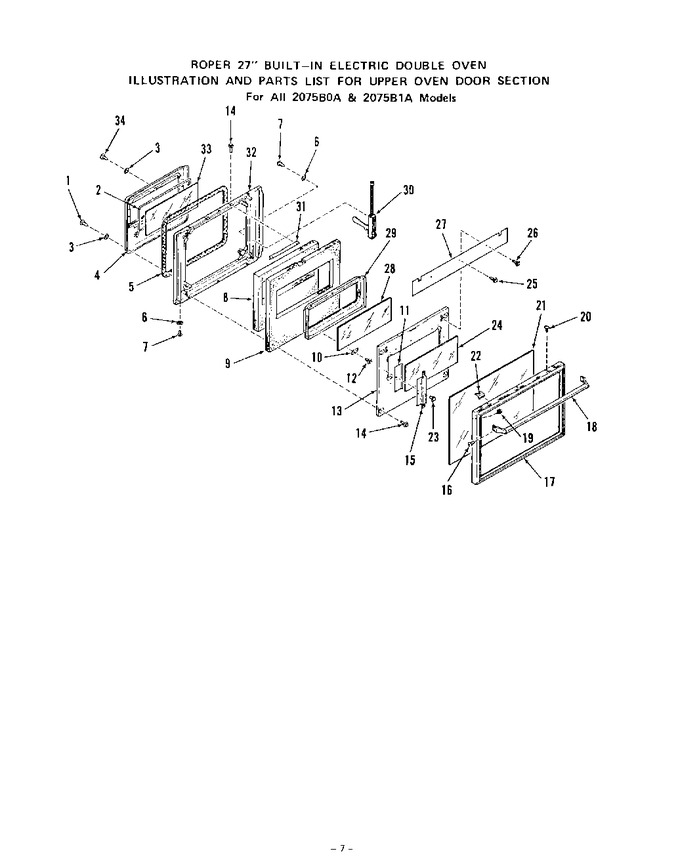

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	102376		Screw 10-32 X 1/2``		Appelez-nous	-
2	302935		Door Seal		Appelez-nous	-
3	21067		Washer		Appelez-nous	-
4	327564		2075b0a Model		Appelez-nous	-
4	331674		2075b1a Model		Appelez-nous	-
5	311925		Oven Door Gasket		Appelez-nous	-
6	106462		Washer		Appelez-nous	-
7	239113		Screw 10-32x3/8``		Appelez-nous	-
8	311872		Insulation-oven Door Plug		Appelez-nous	-
9	311874		Insulation-oven Door Lining		Appelez-nous	-
10	312888		Door Glass Retainer (4 Req)		Appelez-nous	-
11	310929		Spacer-oven Door Glass (lt&rt)		Appelez-nous	-
12	295849		Screw 10-32x17/32``		Appelez-nous	-
13	323678		Retainer-oven Door Insulation		Appelez-nous	-
14	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 8.63
15	WP487353		Clamp-oven Door Glass (lt. Or Rt.)   (Replaces: 307842)				$ 7.95
16	319447		Screw 8-32 X 1/2``		Appelez-nous	-
17	325836		Frame-oven Door		Appelez-nous	-
18	325837		Oven Door Handle		Appelez-nous	-
19	239764		Keps Nut 8-32		Appelez-nous	-
20	327621		Screw 6-20x3/8``		Appelez-nous	-
21	311738		Oven Door Glass-outer		Appelez-nous	-
22	299596		Door Glass Retainer (6 Req)		Appelez-nous	-
23	69364		Screw 10abx3/4``		Appelez-nous	-
24	308239		Oven Door Glass-intermediate		Appelez-nous	-
25	102429		Screw 10 - 32 X 3/8``		Appelez-nous	-
26	293121		Screw 6-32x1/4``		Appelez-nous	-
27	311751		Baffle-oven Door Lining		Appelez-nous	-
28	296214		Oven Door Glass-center		Appelez-nous	-
29	323672		Retainer-oven Door Glass		Appelez-nous	-
30	331028		Oven Door Hinge-rt. Or Lt.		Appelez-nous	-
31	WP312967		Oven Door Lining Stiffener   (Replaces: 312967)			Immediately	$ 12.46
32	331682		2075b1a Model		Appelez-nous	-
32	325835		2075b0a Model		Appelez-nous	-
33	312426		Oven Door Glass-inner		Appelez-nous	-
34	105799		Screw 10abx1		Appelez-nous	-
34	329439		Main		Appelez-nous	-
34	329301		Auxiliary		Appelez-nous	-
